REV. 2/12/24 INSTAXDSPH-GM32

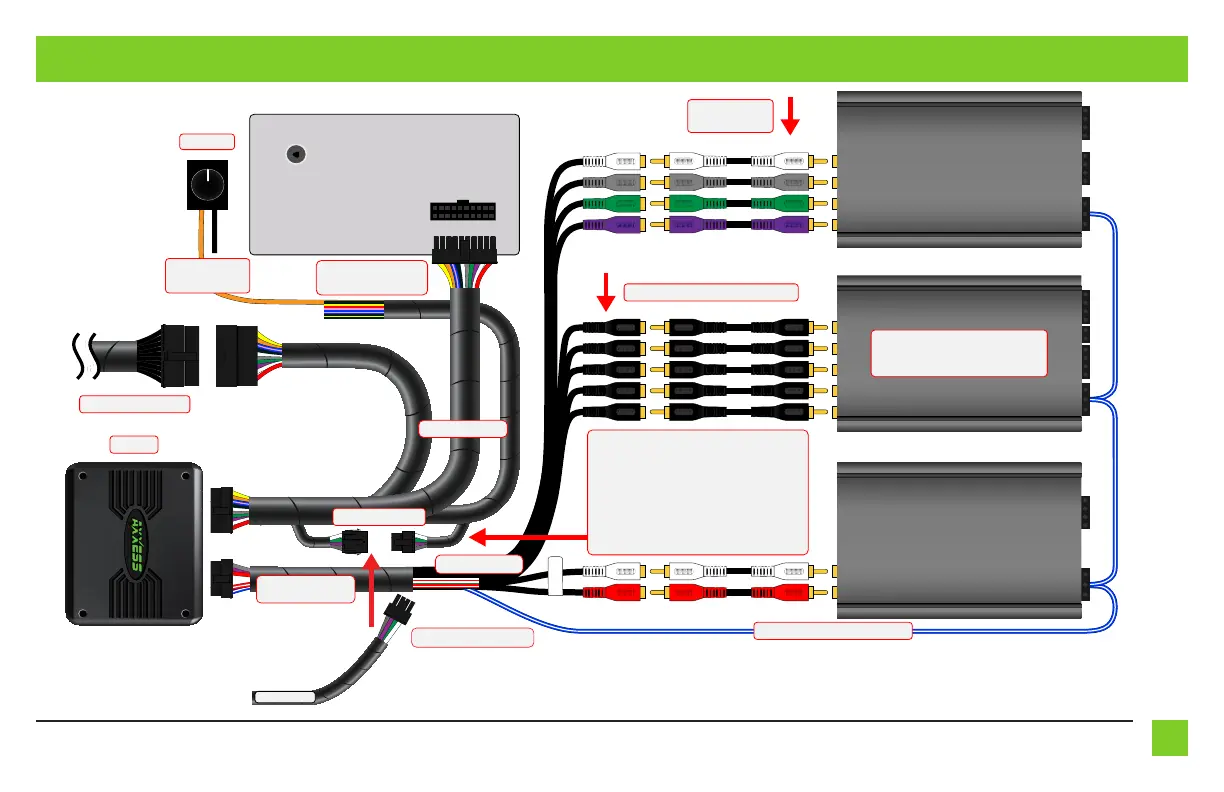

ADDING A FULL-RANGE AMP & SUBWOOFER TO A FACTORY SYSTEM
SUB
Factory Radio
Factory Radio Harness
Interface
Cut the male
connector off and
connect speaker
wires to amp
White / Front Left +
White/Black / Front Left -
Gray / Front Right +
Gray/Black Front Right -
Green / Rear Left +
Green/Black / Rear Left -
Purple / Rear Right +
Purple/Black / Rear Right -
Any remaining wires
tape off and disregard
Vehicle T-Harness
Bass Knob
Blue/White - Amp Turn-On Wire
Unplug connector
Tape off and disregard
any remaining wires
Black - Ground
Orange - Control
An SPDT relay, Metra part number
E-123, is required if the amp turn-on
current of all amps exceeds 1-amp.
RCA Jacks
(sold separately)
Assignable Outputs Labeled CH 6-10
Interface Harness
AX-DSPX-GM31 vehicle T-harness
LD-DSP-RPAD2
Plug in the LD-DSP-RPAD2
NOTE: The LD-DSP-RPAD2 must be installed
in order to get audio and have chimes and
turn signal click function.
NOTE: Plug the LD-DSP-RPAD2 (RETENTION OF THE
FOLLOWING FEATURES ARE KEPT WITH THE LD-DSP-RPAD2
CONNECTED. EX: TURN SIGNAL CLICKS AND DOOR CHIMES)
AXDSPX-GM32 vehicle T-harness
