3
REV. 11/22/24 INSTAXDIS-TY1

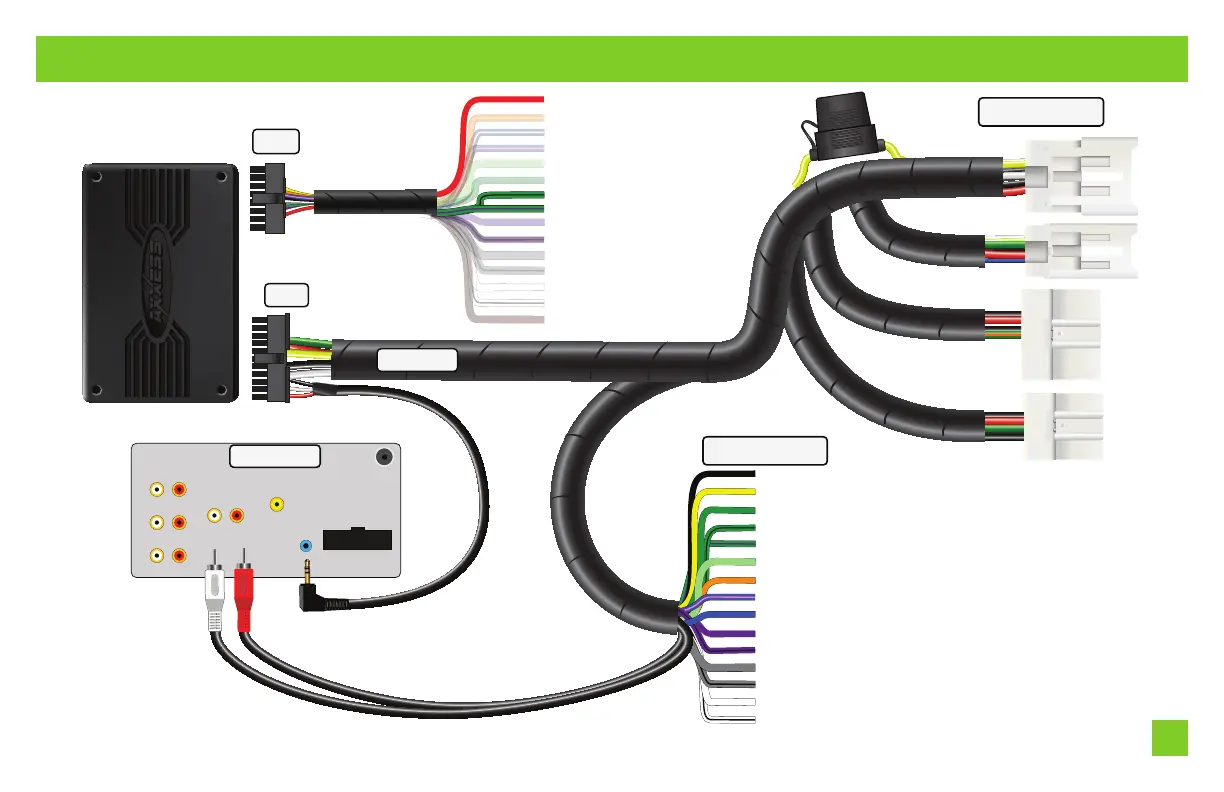

CONNECTIONS: LD-TYNOAMP FOR NON-AMPLIFIED MODELS
Red - Accessory
Orange/White - Not Used
Blue/White - Not Used
Blue/Pink - Not Used
Light Green - Not Used
Green - Not Used
Green/Black - Not Used
Green/Purple - Not Used
Brown- Not Used
Black - Ground
Yellow - Battery Power
Green - Rear Left Speaker +
Green/Black - Rear Left Speaker -
Green/Purple - Reverse Signal
Light Green - Parking Brake
Orange - Illumination
Blue/Pink - VSS
Blue - Antenna Turn On
Purple -
Rear Right Speaker +
Purple/Black -
Rear Right Speaker -
Gray - Front Right Speaker +
Gray/Black - Front Right Speaker -
White - Front Left Speaker +
White/Black - Front Left Speaker -
Radio Connections
Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
LD-2NAVAMP
16-Pin
Purple -
Not Used
Purple/Black -
Not Used
Gray - Not Used
Gray/Black - Not Used
White - Not Used
White/Black - Not Used
Vehicle Connectors
LD-TYNOAMP
22-Pin
28
20
Only one AUX-IN to be
used according to
connector pin type
*
*
NOTE: (FOR AMPLIFIED MODELS)
GREEN/PURPLE: REVERSE BACKUP CAMERA
is only available when the 28 pin
connector is used.
