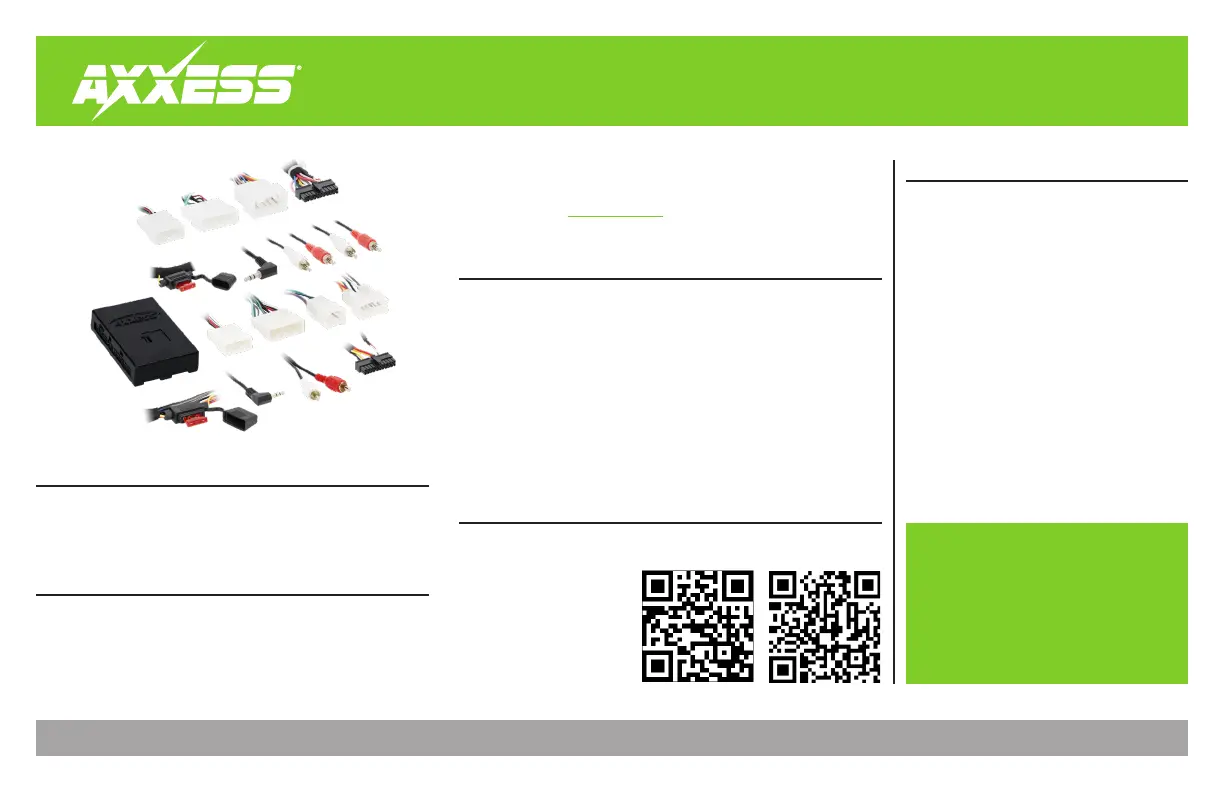

AXDIS-TY1
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 11/22/24 INSTAXDIS-TY1
INTERFACE FEATURES
INTERFACE COMPONENTS
• Wire cutter
• Crimp tool
• Solder gun
• Tape
• Small flat-blade screwdriver
• Connectors (example: butt-
connectors, bell caps, etc.)
TABLE OF CONTENTS
Applications ...........................................................2
Connections:
Non-Amplified Models:
LD-TYNOAMP .................3
Amplified Models: LD-BX-TY2
.............................4
3.5mm Jack Steering Wheel Control Retention
....5
Installing the AXDIS-TY1 ........................................5
Programming the AXDIS-TY1 ................................6
Audio Level Adjustment .......................................6
Steering Wheel Control Settings .....................7-10
LED Feedback .......................................................7
Changing Radio Type ..........................................8
Remapping the SWC Buttons .........................8-9
Dual Assignment Instructions
........................... 10
Troubleshooting.................................................... 11
Fits Lexus/Toyota Interface with SWC 2001-2015
• AXDIS-TY1 interface
• AXDIS-TY1 harnesses (LD-TYNOAMP, LD-BX-TY2 AND LD-2NAVAMP)
• Female 3.5mm connector with stripped leads
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications.
• Designed for both amplified and non-amplified models
• Provides accessory power (12-volt 10-amp)
• Retains audio controls on the steering wheel
• Provides NAV outputs (parking brake, reverse)
• Retains the factory AUX-IN jack
• Retains balance on amplified models
(non-amplifed models will retain balance and fade)
• Micro-B USB updatable
APPLICATIONS (See Page 2)
TOOLS REQUIRED
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product. Ensure
that all installation connections, especially the
air bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
MetraOnline.com may be used
to assist with dash assembly
instructions. Simply enter your
Year, Make, Model vehicle into
the vehicle fit guide and look
for the Dash Kit Installation
Instructions.
Product Info
www.MetraOnline.com
