5
REV. 7/12/24 INSTAXDIS-PO52

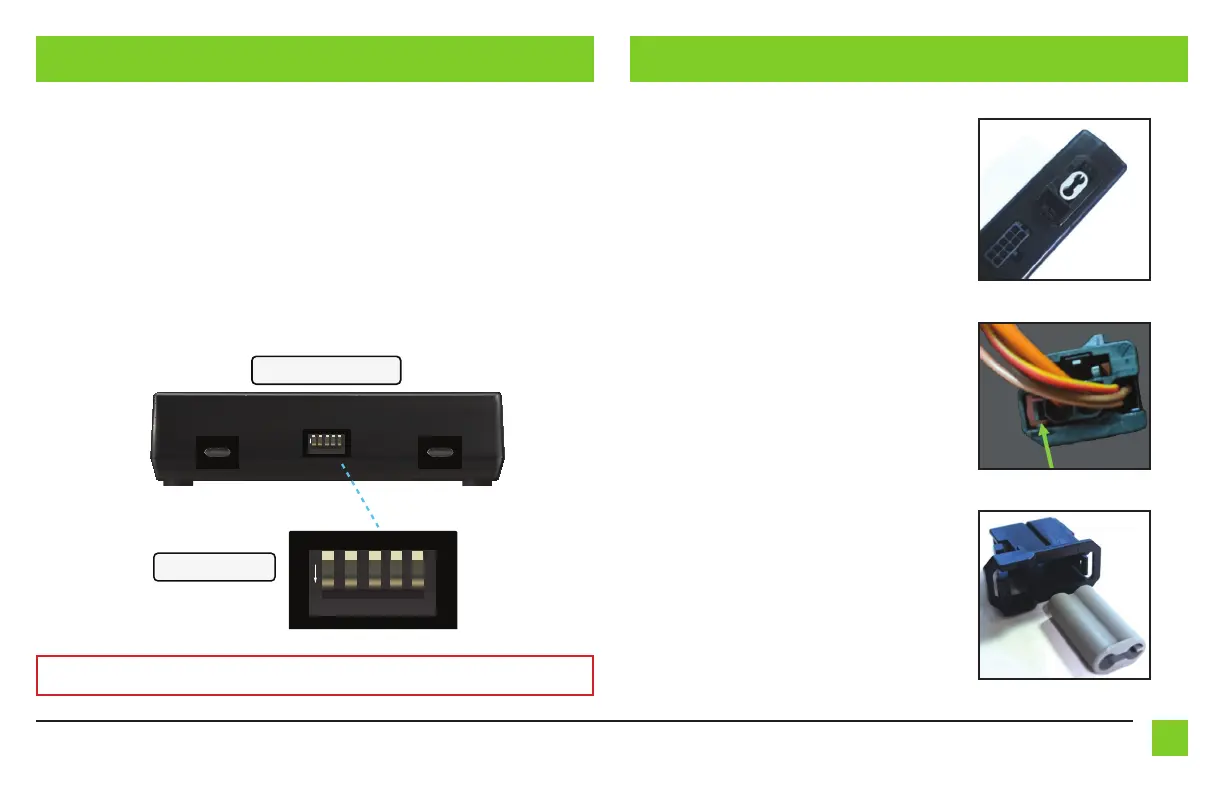

INSTALLING THE FIBER OPTIC CABLE
Installing the Fiber Optic Cable:
Removal of the original fiber optic connection
is required to adapt to the Media Oriented
System Transport (MOST) interface.
•
Seat the AXDIS-PO52 amplifier interface
in the black connector housing provided
with this kit and snap the housing in
place. (Figure A)
• From the original Fiber Optic Connector:
Using a pick tool, carefully pull this
tab towards the outside edge for the
connector housing. Gently remove
the gray fiber optic insert from the
connector. (Figure B)
• From the MOST Interface: Push the tab
toward the gray dust cover and, using
a needle nose plier, remove the gray
dust cover. Replace the gray connector
with the factory fiber optic cables into
the MOST interface’s black connector
housing. (Figure C)
(Figure A)
(Figure B)
(Figure C)
Installing the AXDIS-PO52 interface
INSTALLING THE AXDIS-PO52 INTERFACE
With the key in the off position:
1. Connect male 3.5mm jack to the steering wheel control port on the radio.
2. Ensure that the dipswitches are set to the desired radio type. Refer to SWC Chart on page 3.
3. Connect the AXDIS-PO52 harness to the AXDIS-PO52 interface.
4. Remove the dust cover from the optic port on the AXDIS-PO52 interface.
5. Connect the factory fiber optic cable to the AXDIS-PO52 interface.
6. Connect the AXDIS-PO52 harness to the wiring harness in the vehicle.
7. Turn on the ignition and test all features.
O
N
1
2
3
4
5
K
E
Interface Front View
Dipswitch Detail
O
N
1
2
3
4
5
K
E
NOTE: For Dipswitch Settings for your Radio Type, refer to SWC Chart on page 4.
