2

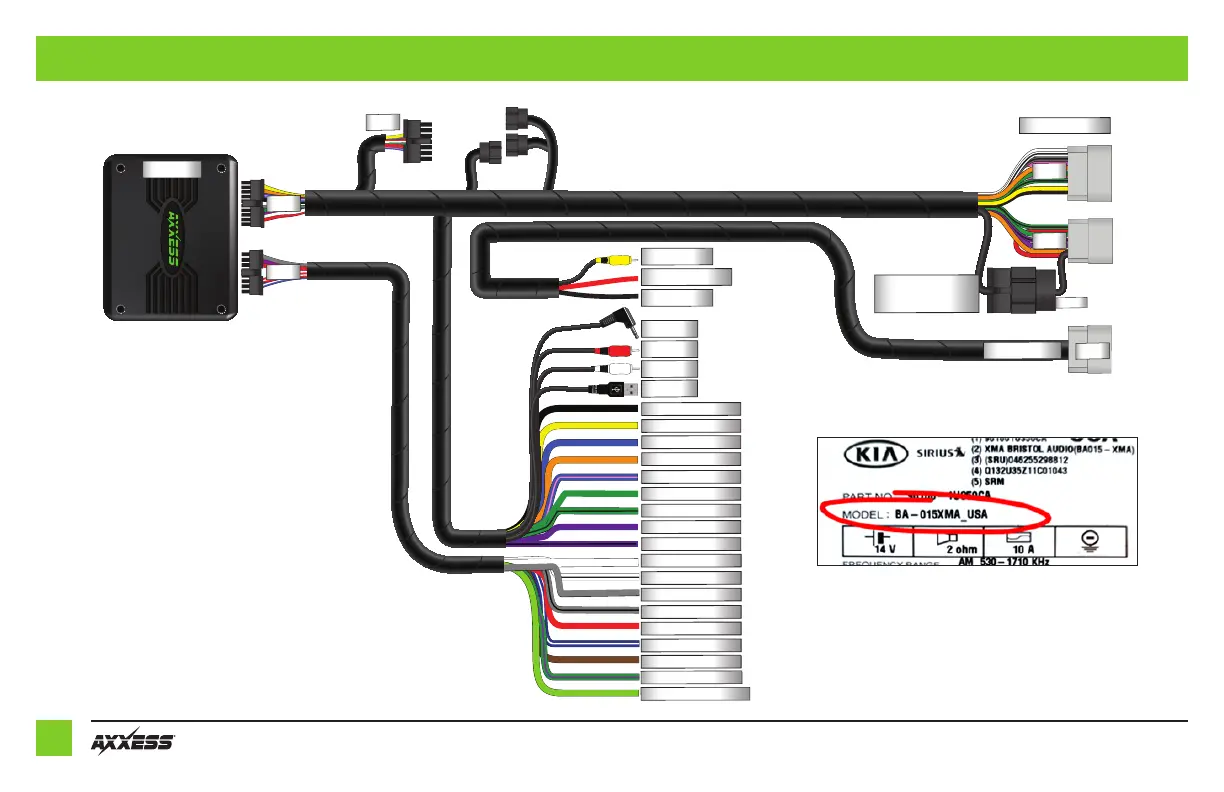

NON-AMPLIFIED VEHICLES
Interface
22 Pin
16 Pin
Vehicle Connectors
Non-Nav Models Only
8 Pin
Non-Amplified Vehicles
Connect for Non-Amplified Vehicles
SWC Jack
Red
White
AUX IN RETENTION
14 Pin
18 Pin
24 Pin
}
DO NOT USE
USB RETENTION
Back-up Camera
Camera Power 6 Volt
Camera Ground
Back-up Camera
USB Cable
16 Pin
Connect for
Non-Amplified Vehicles
Black - Ground
Yellow - Constant
Blue - Power antenna
Orange - Illumination
Blue/Pink - VSS
Green - Left Rear (+)
Green/Black - Left Rear (-)
Purple - Right Rear (+)
Purple/Black - Left Rear
(-)
(A) DO NOT USE
(B) DO NOT USE
White - Left Front (+)
White/Black - Left Front (-)
Gray - Right Front (+)
Gray/Black - Right Front (-)
Red - Accessory
Blue/White - Amp turn-on
Brown - Mute
Green/Purple - Reverse
Light Green - Parking Brake
Green/Purple - Reverse
Light Green - Parking Brake
To Identify if your vehicle has the Bristol Audio system,
check the radio’s model number. If the model # starts with
a BA , it has Bristol Audio and is NOT covered.
