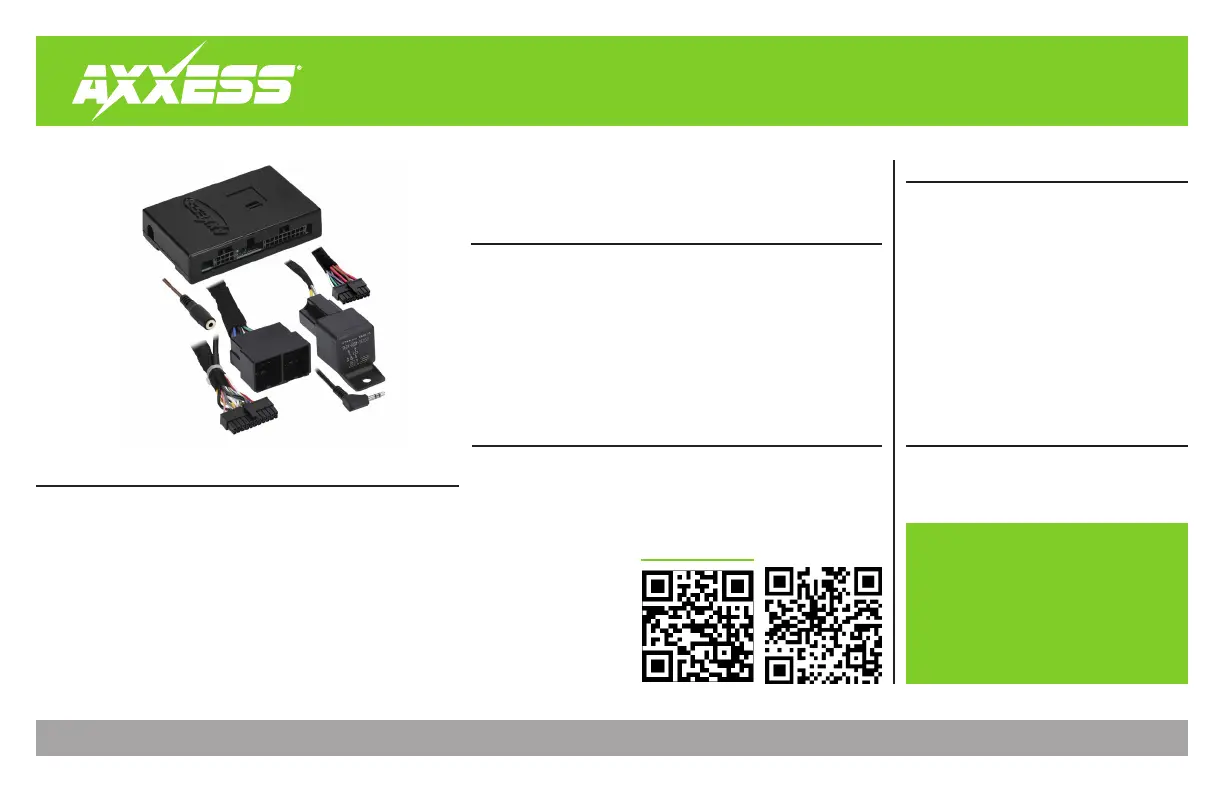

AX DIS -GMLN30
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 11/1/24 INSTAXDIS-GMLN30
Chevrolet
Blazer (IOT, IOU)* ........... 2019-2023
Camaro (IOS, IOT)* .........2019-2023
Cheyenne (IOS, IOT)* ......2019-2021
Colorado (IOS, IOT) .........2019-2022
Equinox (IOS, IOT)* ........2019-2023
Malibu (IOU, IOS)* .......... 2019-2022
Silverado (IOS, IOT)* .......2019-2021
Volt ............................................2019
GMC
Acadia (IOU)* ................ 2020-2022
Canyon (IOS, IOT) ........... 2019-2022
Sierra 1500 (IOS, IOT)* ....2019-2021
Terrain (IOS, IOT, IOU)
* ...2019-2022
INTERFACE FEATURES
INTERFACE COMPONENTS
TABLE OF CONTENTS
Connections ........................................................ 2-3
3.5mm Jack Steering Wheel Control Retention
...3
Installing the AXDIS-GMLN30 ................................3
Programming the AXDIS-GMLN30 ........................ 4
Steering Wheel Control Settings (SWC)...........5-8
LED Feedback .......................................................5
Changing Radio Type ..........................................5
Remapping the SWC Buttons .................................6
Dual Assignment Instructions......................... 7-8
Troubleshooting.....................................................8
GM Data Interface with SWC 2019-2023
•
Non-amplified models only
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Retains balance and fade
• Micro-B USB updatable
• AXDIS-GMLN30 interface • AXDIS-GMLN30 harness
• 16-pin harness with stripped leads
• Female 3.5mm connector with stripped leads
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell
caps, etc.) • Small flat-blade screwdriver
APPLICATIONS
*For extension,
use AXEXH-GM30
Product Info
Visit AxxessInterfaces.com for up-to-date vehicle specific applications.
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product. Ensure
that all installation connections, especially the
air bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
www.MetraOnline.com
MetraOnline.com may be used
to assist with dash assembly
instructions. Simply enter
your Year, Make, Model
vehicle into the vehicle fit
guide and look for the Dash
Kit Installation Instructions.
