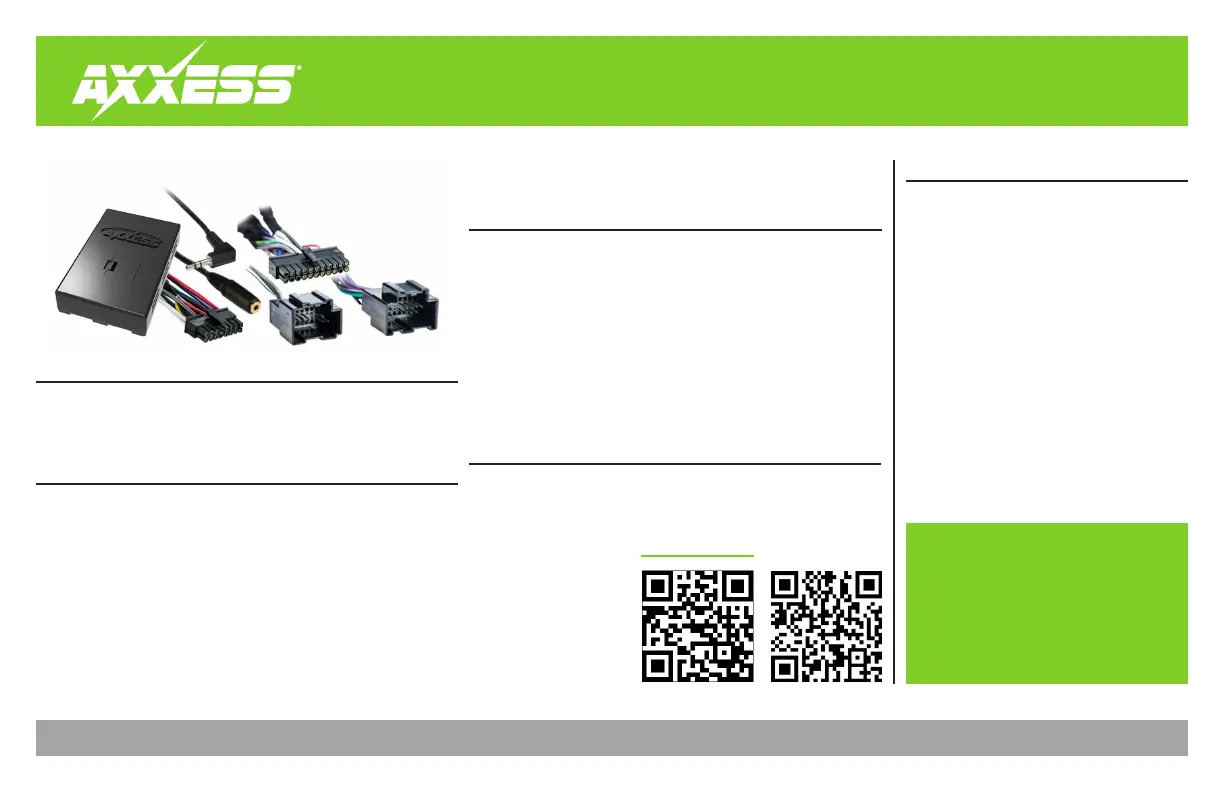

AXDIS-GMLN11
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 11/1/24 INSTAXDIS-GMLN11
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape • Connectors (example: butt-
connectors, bell caps, etc.) • Small flat-blade screwdriver
TABLE OF CONTENTS
Connections to Be Made .........................................2-4
For Models without an Amplifier ........................... 2
For Models with an Analog Amplifier ................... 3
3.5mm Jack Steering Wheel Control Retention ... 4
Installing the AXDIS-GMLN11 .....................................4
Programming The AXDIS-GMLN11 ............................. 5
Adjusting The AXDIS-GMLN11 .................................... 6
Steering Wheel Control Settings (SWC)..............7-10
LED Feedback .......................................................... 7
Changing Radio Type..............................................8
Remapping the SWC Buttons ................................9
Dual Assignment Instructions
....................................
10
Troubleshooting.........................................................11
GM Data Interface with SWC 2006-2012
APPLICATIONS
• Can be used in non-amplified
or amplified models
• Provides accessory power
(12-volt 10-amp)
• Retains R.A.P. (retained
accessory power)
• Provides NAV outputs (parking
brake, reverse, speed sense)
• Retains chimes
• Retains audio controls on the
steering wheel
• Retains OnStar
®
/ OE Bluetooth
• Adjustable OnStar
®
level
• Retains the factory AUX-IN jack
• Retains balance and fade
• Micro “B” USB updatable
• AXDIS-GMLN11 interface • 16-pin harness with stripped leads
• AXDIS-GMLN11 harness • 4-pin to 4-pin resistor pad harness
• Female 3.5mm connector with stripped leads
CHEVROLET
Cobalt ............................. 2007-2012
HHR ................................ 2006-2012
Malibu ............................ 2008-2012
PONTIAC
G5 .................................. 2007-2009
G6 ..........................................2009*
PONTIAC (cont.)
G6 ............................................. 2010
Solstice ..........................2006-2009
SATURN
Aura .............................. 2007-2009
Sky................................. 2007-2009
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product. Ensure
that all installation connections, especially the
air bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
Product Info
www.MetraOnline.com
Visit AxxessInterfaces.com for up-to-date
vehicle specific applications.
MetraOnline.com may be
used to assist with dash
assembly instructions.
Simply enter your Year,
Make, Model vehicle into
the vehicle fit guide and
look for the Dash Kit
Installation Instructions.
*(5th digit of VIN must be J, K, or L)
