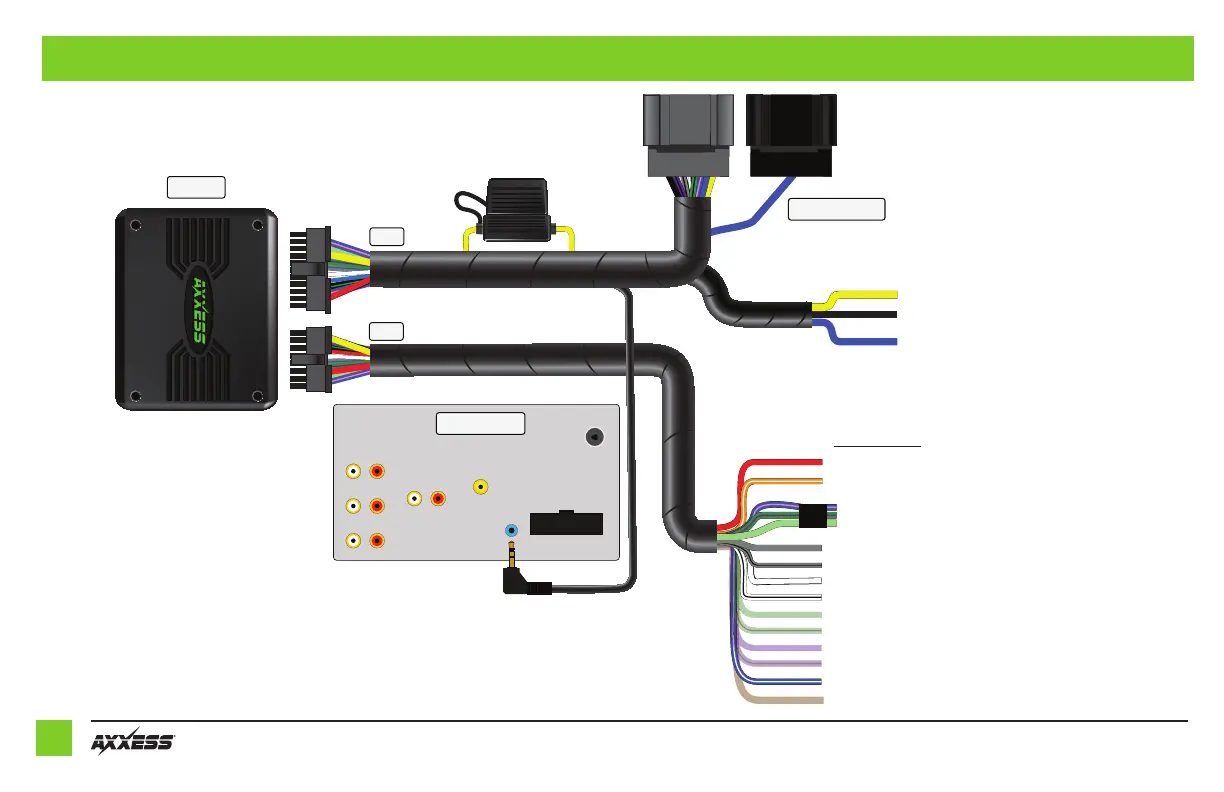

2
Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
Vehicle Connectors
Interface
22-Pin
16-Pin
Red - Accessory power
Orange/White - Illumination
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - (NOT USED)
Green/Black - (NOT USED)
Purple - (NOT USED)
Purple/Black - (NOT USED)
Blue/White - Amp turn on from radio
Brown -(NOT USED)
Radio Connections
Yellow wire to the battery wire
Black wire to the ground wire
Blue wire to the power antenna wire
From the AXDIS-GM13 harness to the aftermarket radio
