SWC CHART
Metra MOST Interface Dipswitch Table
MFR System
DIP Switch Sengs
Addional
Comments
1 2 3 4 5
RESERVED
NA OFF OFF OFF OFF OFF SW UPDATE MODE
ALPINE
IR DATA OFF ON OFF OFF OFF
AXXERA 2
IR DATA ON ON OFF OFF OFF
CLARION 1
IR DATA ON OFF OFF ON OFF
CLARION 2
IR DATA ON ON OFF ON OFF
DUAL
Analog OFF OFF ON ON OFF
GRUNDIG
IR DATA OFF ON OFF ON OFF
JENSEN
Analog OFF OFF OFF ON ON
JVC
IR DATA OFF OFF ON OFF OFF BROWN WIRED SWC
KENWOOD 1
IR DATA ON OFF OFF OFF OFF BROWN WIRED SWC
KENWOOD 2
IR DATA ON ON OFF OFF OFF BROWN WIRED SWC
LG 1
Analog OFF OFF ON ON OFF
LG 2
IR DATA OFF ON ON OFF OFF
PHILIPS 1
IR DATA ON OFF ON ON OFF
PHILIPS 2
IR DATA OFF ON OFF ON OFF
PIONEER 1
Analog OFF OFF OFF ON ON
MALE 3.5MM JACK
PIONEER 2
Analog OFF OFF OFF ON OFF MALE 3.5MM JACK
SONY
Analog OFF OFF ON ON OFF
MALE 3.5MM JACK
VALOR
IR DATA ON OFF ON OFF OFF
SPARE
IR DATA OFF ON ON ON OFF
LEARNING SWC
Analog ON ON ON OFF OFF
SPARE
Analog ON ON ON ON OFF
Press dipswitch in to the down position to turn ON.

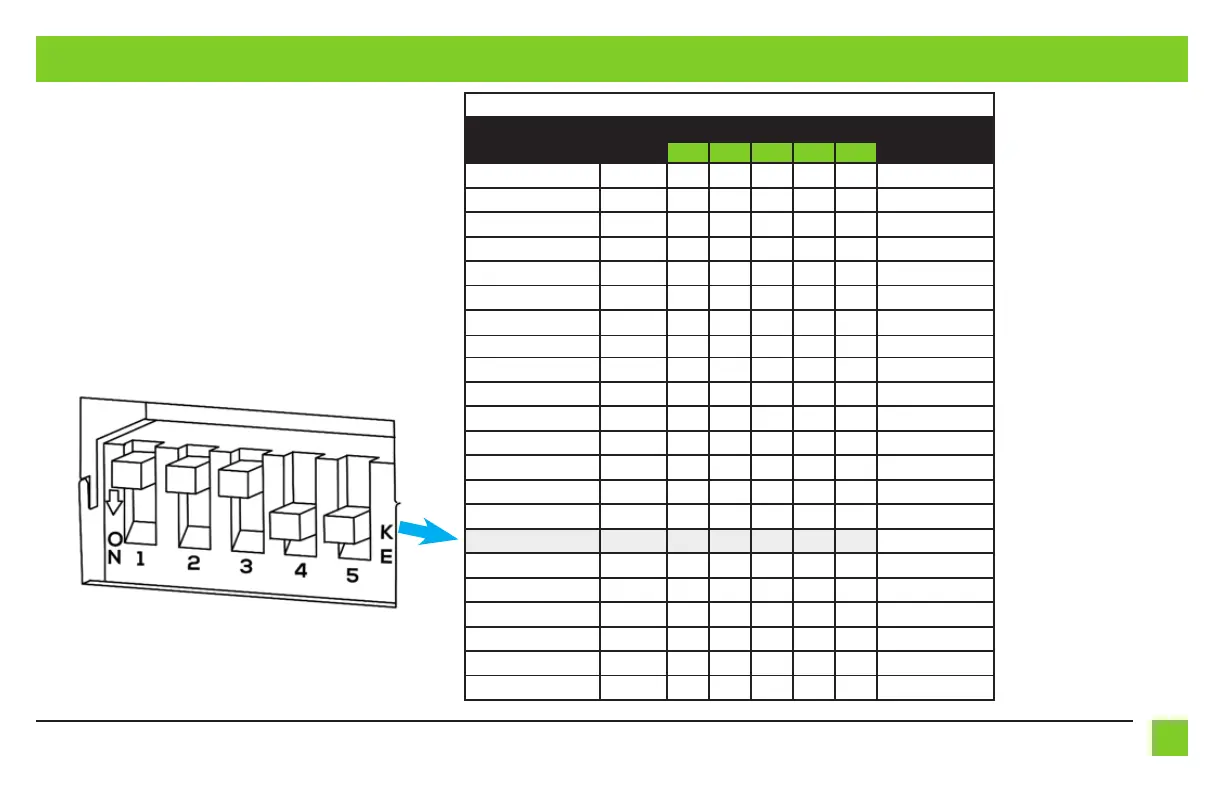

Pioneer 1 example shown in the diagram.
