REV. 6/7/24 INSTAXDI-PO4
INSTALLATION
With the key in the off position:
• Connect the AXDI-PO4 harness to the AXDI-PO4 interface.
• Remove the dust cover from fiber optic port in the AXDI-PO4.
• Connect the factory fiber optic cable into the AXDI-PO4.
• Connect the AXDI-PO4 harness to the wiring harness in the vehicle.

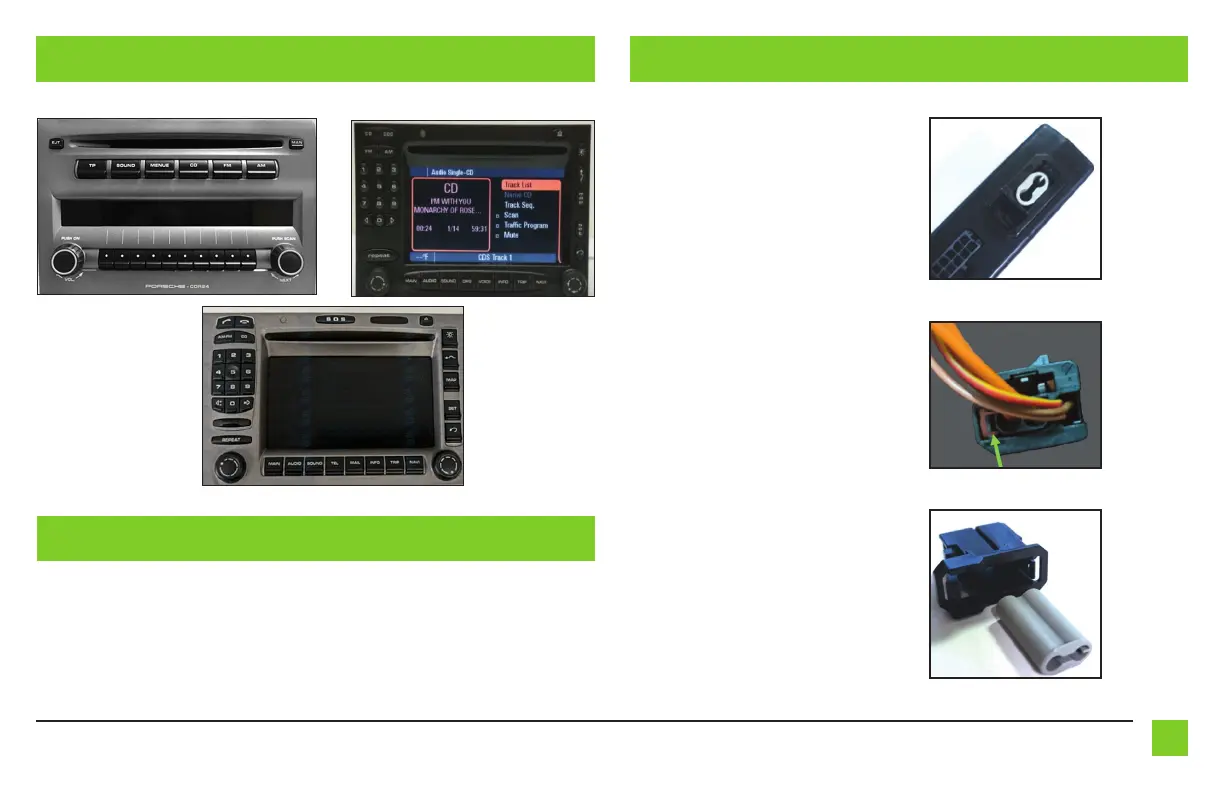

APPLICABLE RADIOS
INSTALLING THE FIBER OPTIC CABLE
Installing the Fiber Optic Cable:
Removal of the original fiber optic connection
is required to adapt to the Media Oriented
System Transport (MOST) interface.
•
Seat the AXDI-PO4 interface in the black
connector housing provided with this kit
and snap the housing in place. (Figure A)
• From the original Fiber Optic Connector:
Using a pick tool, carefully pull this
tab towards the outside edge for the
connector housing. Gently remove the
fiber optic insert from the connector.
(Figure B)
• From the MOST Interface: Push the
tab toward the dust cover and, using
a needle nose plier, remove the dust
cover. Replace the connector with the
factory fiber optic cables in to the MOST
interface’s black connector housing.
(Figure C)
(Figure A)
(Figure B)
(Figure C)
Without Steering Wheel Controls, with CDR24/PCM2.0/PCM2.1
