2

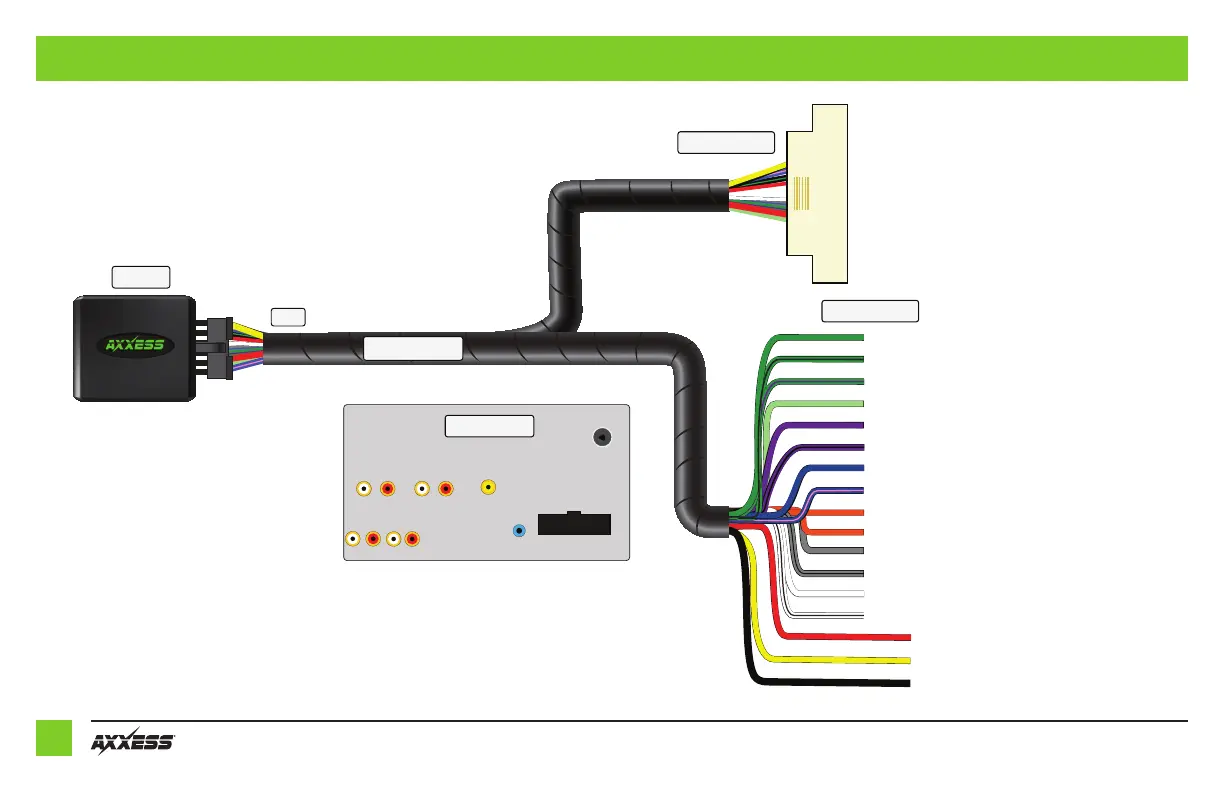

CONNECTIONS: LD-AXDI-GM4 DIAGRAM
12-Pin
AUX-IN
Rear View
SWC
Aftermarket Radio
Front
Rear
Sub
Vehicle Connector
Radio Connections
Interface
Blue - Antenna turn on
Blue/Pink - VSS/Speed-Sense
Orange - Illumination
Orange - No Connection
Gray - Front right + speaker
Gray/Black - Front right - speaker
White - Front left + speaker
White/Black - Front left - speaker
Red - Accessory power
Yellow - Battery wire
Black - Ground wire
Green - Rear left speaker + output
Green/Black - Rear left - speaker output
Green/Purple - Reverse backup camera
Light Green - Parking brake
Purple - Rear right + speaker output
Purple/Black - Rear right - output
(Your radio’s features may vary)
LD-LCGM-04
Note: Use either of the orange
wires and disregard the other one.
}
