3
REV. 5/16/24 INSTAXDI-6524
CAN connections to the vehicle: (
See page 2 for Diagram)
• Disconnect the 2-pin connector from the AXDI-6524 harness.
• Connect the
2-pin CAN harness to the AXDI-6524 harness.
• Route the harness to the vehicles OBD port located under the driver’s side dash.
Option 1 (excluding Wrangler)

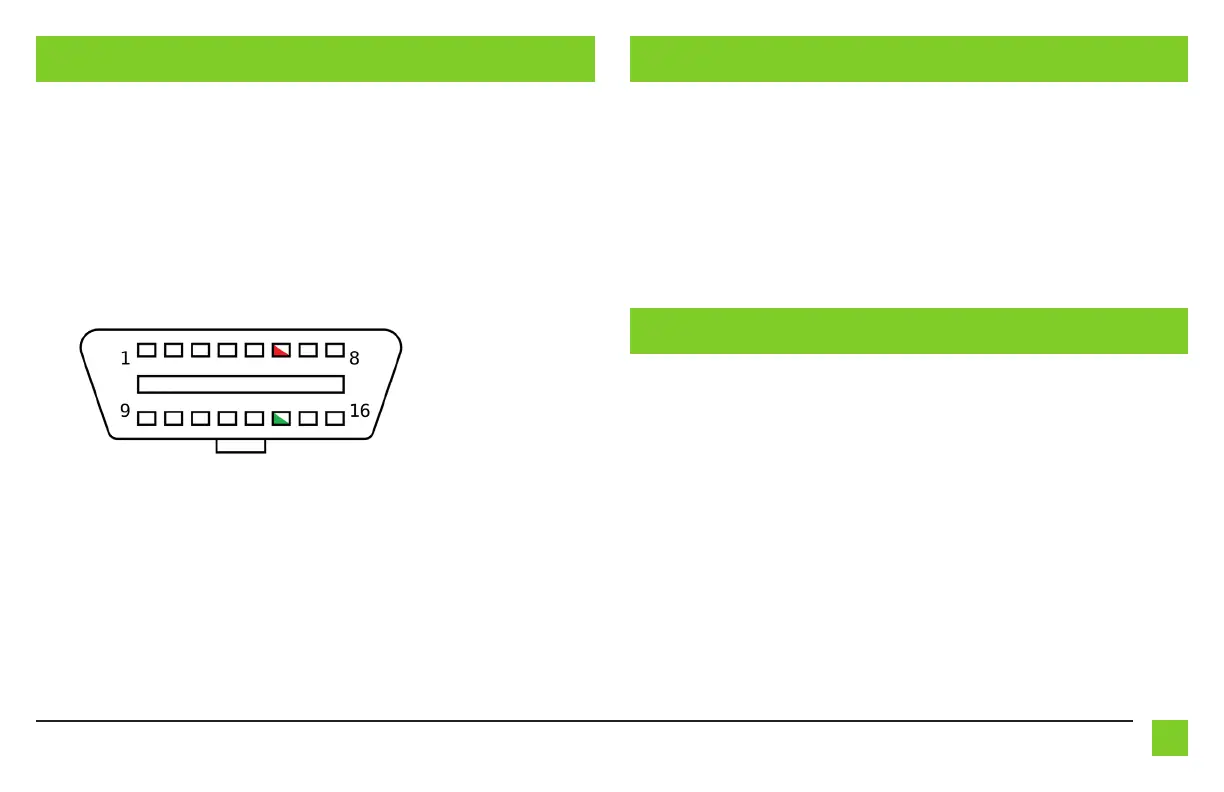

• Connect the White/Red wire to the CAN-HI wire. (Figure A)
• Connect the White/Green wire to the CAN-LO wire. (Figure A)
With the key in the off position:
1. Connect the AXDI-6524 harness to the AXDI-6524 interface, and then to the wiring
harness in the vehicle.
2. If an AXSWC (sold separately) will be used, do not connect it until the AXDI-6524 is
programmed and fully functional.
CONNECTIONS (CONT.) I N STAL L ATION
(Figure A)
Attention!
If the interface ever loses power, the following steps will need to be performed
again. Please ensure that the owner of the vehicle knows this.
1. Turn the key (or push-to-start button) to the ignition position and wait until the radio
comes on.
Note: If the radio doesn’t not come on within 60 seconds, turn the key to the off
position, disconnect the interface, check all connections, reconnect the interface, and
then try again.
2. Turn the key (or push-to-start button) to the off position, then open and close the
driver’s door.
3. Wait 5 minutes for the vehicle to fully go to sleep.
4. Start the vehicle, then test all functions of the installation for proper operation.
PROGRAMMING
12-pin pre-wired AXSWC harness:
This harness is to be used along with the AXSWC (sold separately) to retain steering wheel audio
controls. If the AXSWC is not being used, disregard this harness. If it is to be used, please refer to the
AXSWC instructions for radio connections and programming. Disregard the harness that comes with
the AXSWC.
