4
To Amp
bypass harness
(not included)
A
2-Pin
Connect 2 Pin
LD-BASSKNOB
LD-BASSKNOB
20-Pin
LED
FRONT
REAR
SUB
2 PIN
20 PIN
CHIME VOL
UPDATE
PORT
Interface
R
LD-PAW-CH3
LED
FRONT
REAR
SUB
2 PIN
20 PIN
TOSS
LINK
CHIME VOL
UPDATE
PORT
Interface
2-Pin
30
86
85
87
To 12v
Constant
2-Pin
RCA Cables
(sold separately)
If connecting multiple amps, Metra recommends incorporating
an SPDT Relay (not included). Metra SPDT Relay part #: E-123
SPDT Relay
8-Pin
Blue/White - Amp Turn-On Wire
LD-PAW-EXT
2 of 2
C
Factory Radio
*BACK*
22-Pin
Factory Radio Harness
22-Pin
Amplified
Connect A to C.
Chime volume
is not used in
this application.
A Toslink cable can
be used to provide 2
channel audio to an
amplifier/processor
**
Aux Ground output for accessories
**
TOSLINK

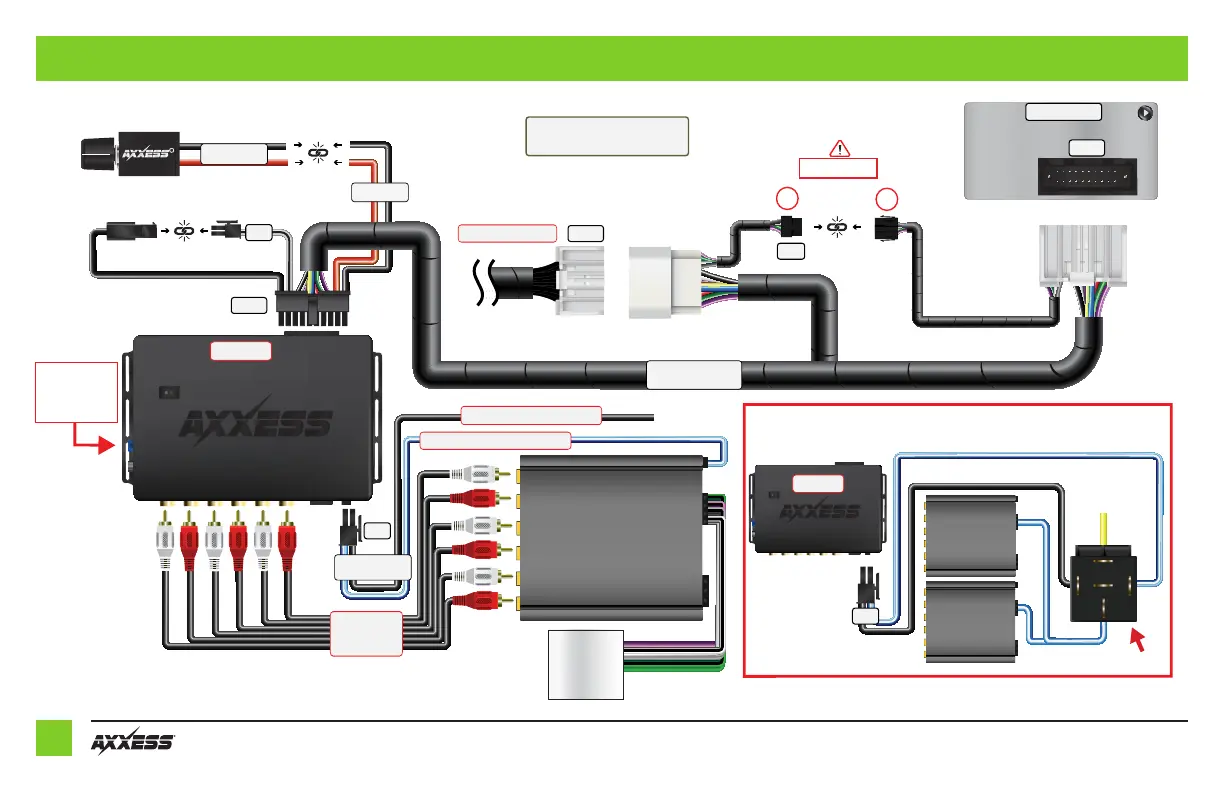

ADDING AMPLIFIER/AMPLIFIERS TO A FACTORY SYSTEM CONT.
