6
I N STALL ATI O N PROGRAMMING
With the ignition cycled off:
1. Remove the harnesses from the factory radio display, then install the AXAC-MZ2 vehicle
harness in between.
2. Connect the AXAC-MZ2 vehicle harness to the AXAC-MZ2 interface harness.
3. Connect the AXAC-MZ2 interface harness to the AXAC-MZ2 interface.
4. Make sure the camera(s) is connected to the appropriate input.
5. Make sure the interface has been configured beforehand as shown in the Configuration
section. Failure to configure the interface will result in the interface not functioning properly.

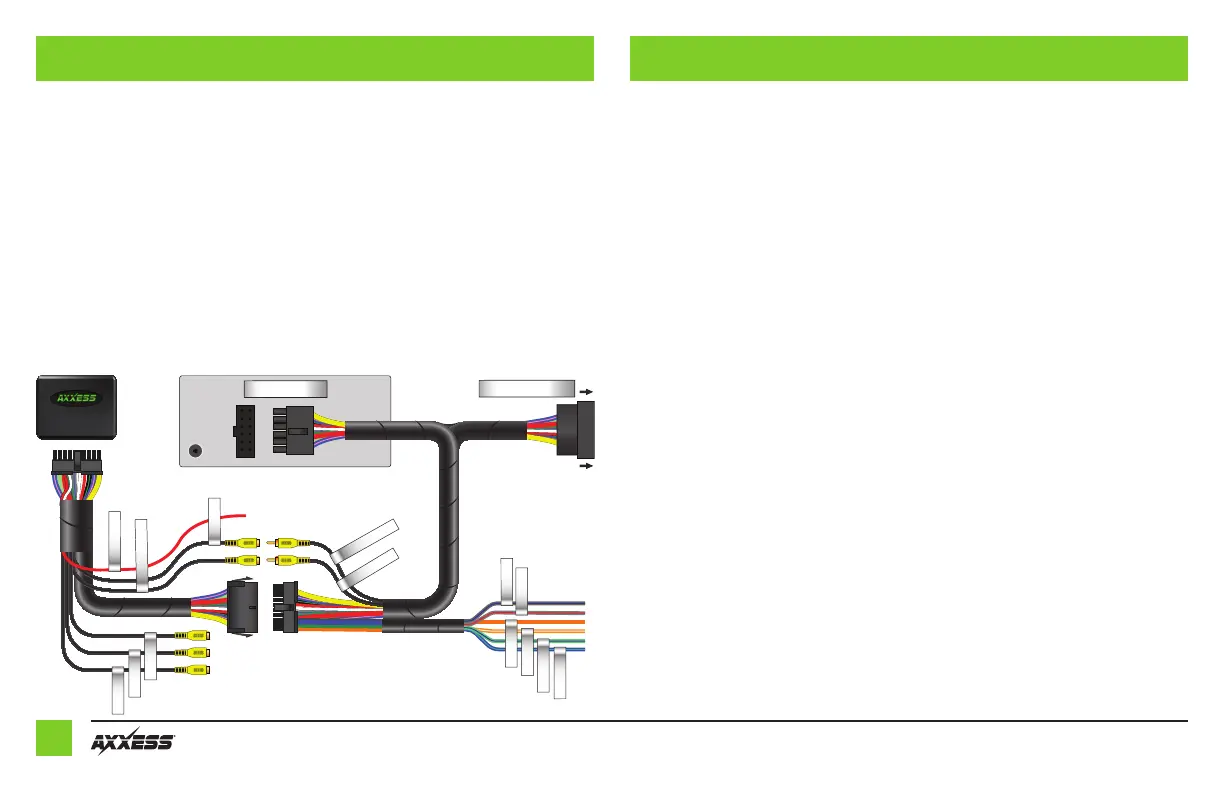

AUX-IN
Camera Input
Camera Output
Camera Output
Camera 1
FACTORY RADIO
TO VEHICLE HARNESS
Camera 4
Camera 2
Control 1
Control 2
Control 3
Control 4
Camera 3
Camera 12V
VSS output
VSS input
For models with a factory backup camera:
1. Cycle the ignition on and wait until the LED in the interface comes on.
Note: If the LED doesn’t come on within a few seconds, yet blinks instead, turn the key to the off
position, disconnect the interface, check all connections, reconnect the interface, and then try again
.
2. Test all functions of the installation for proper operation.
For models without a factory backup camera:
1. Cycle the ignition on.
2. Wait until the Mazda logo is present (dim), then put the vehicle in reverse. Wait until ‘Please
Check Surroundings For Safety” is shown, then put the vehicle back in the park position. This
process should take within 30 seconds.
3. Test all functions of the installation for proper operation.
