6
4 Female Video inputs Here are the options that can be chosen for each input:
Camera 1
• Disable: Will turn off input
•
Reverse: Will activate when the vehicle is in reverse
(Reverse can only be configured on Camera 1)
• Left Blinker: Will activate Input when left turn signal is
activated
• Right Blinker: Will activate input when right turn signal is
activated
•
Control 1 Positive*: Activates Camera 1 with 12v positive
trigger
• Control 1 Negative*: Activate Camera 1 with Negative
Ground trigger
Camera 2
• Disable: Will turn off input
• Left Blinker: Will activate input when left turn signal is
activated
• Right Blinker: Will activate input when right turn signal
is activated
• Control 1 Positive*: Activates Camera 2 with 12v positive
trigger
• Control 1 Negative*: Activate Camera 2 with Negative
Ground trigger
Camera 3
• Disable: Will turn off input
• Left Blinker: Will activate input when left turn signal is
activated
• Right Blinker: Will activate input when right turn signal
is activated
•
RVA (Rear Video Assistant) Positive or Negative trigger:
Activates viewing of Trailer Cameras or Child monitoring
Camera 4
• Disable: Will turn off input
• Left Blinker: will activate input when left turn signal is
activated
• Right Blinker: will activate input when right turn signal
is activated
• Control 1 Positive*: Activates Camera 4 with 12v positive
trigger
• Control 1 Negative*: Activates Camera 4 with Negative
Ground trigger
• Auto (Reverse to Drive): will activate once it sees a
sequence of reverse then drive
NOTE: The Red wire provides 5 amps (it’s recommended to use an SPDT automotive relay when using that line to power
up multiple cameras). Use Metra part number E-123 (sold separately) for best results.
LEGEND: * Not available if RVA is selected as a trigger source for input 3
Note: The AXAC-GM2 monitors the vehicle’s speed, preventing the use of cameras while the
vehicle is in motion. Example: When approaching a stop and the turn signal is activated, the
camera will not display unless the vehicle is moving greater than 3MPH. (Cut off point is from
8-15mph)

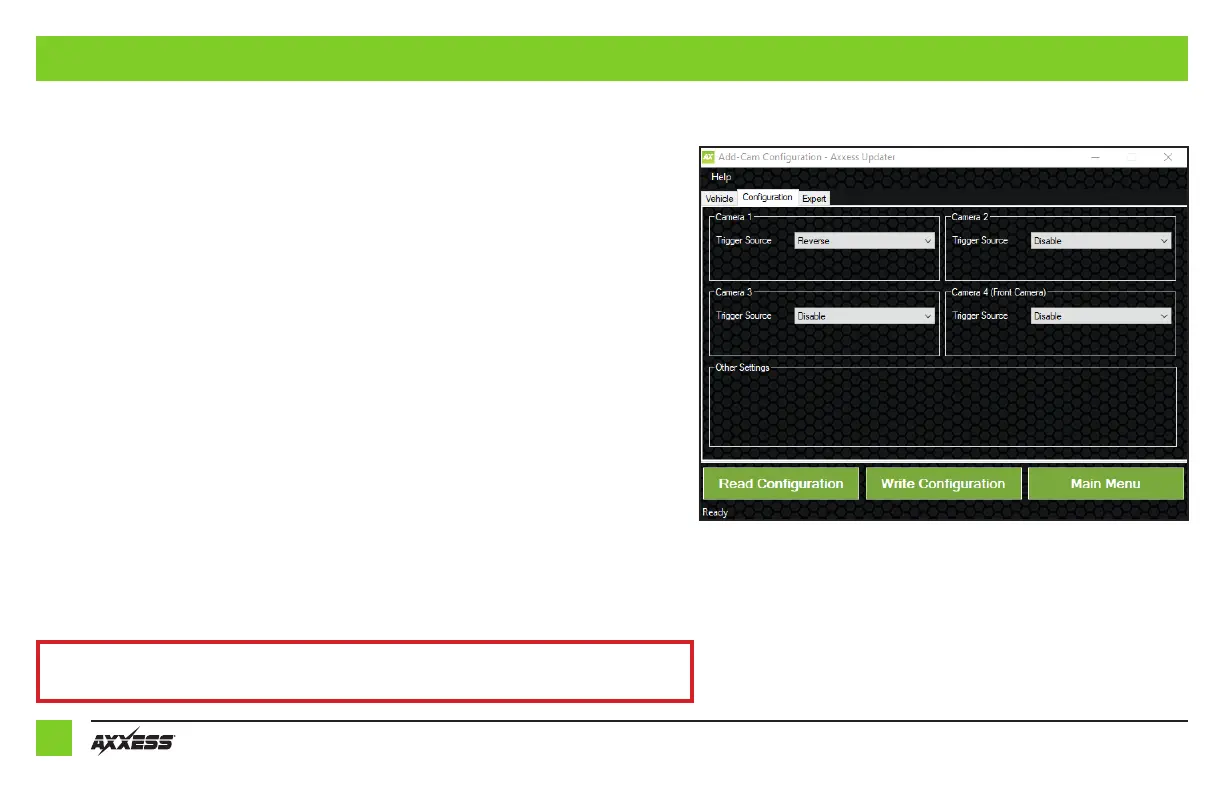

ADD-CAM CONFIGURATION-AXXESS UPDATER
