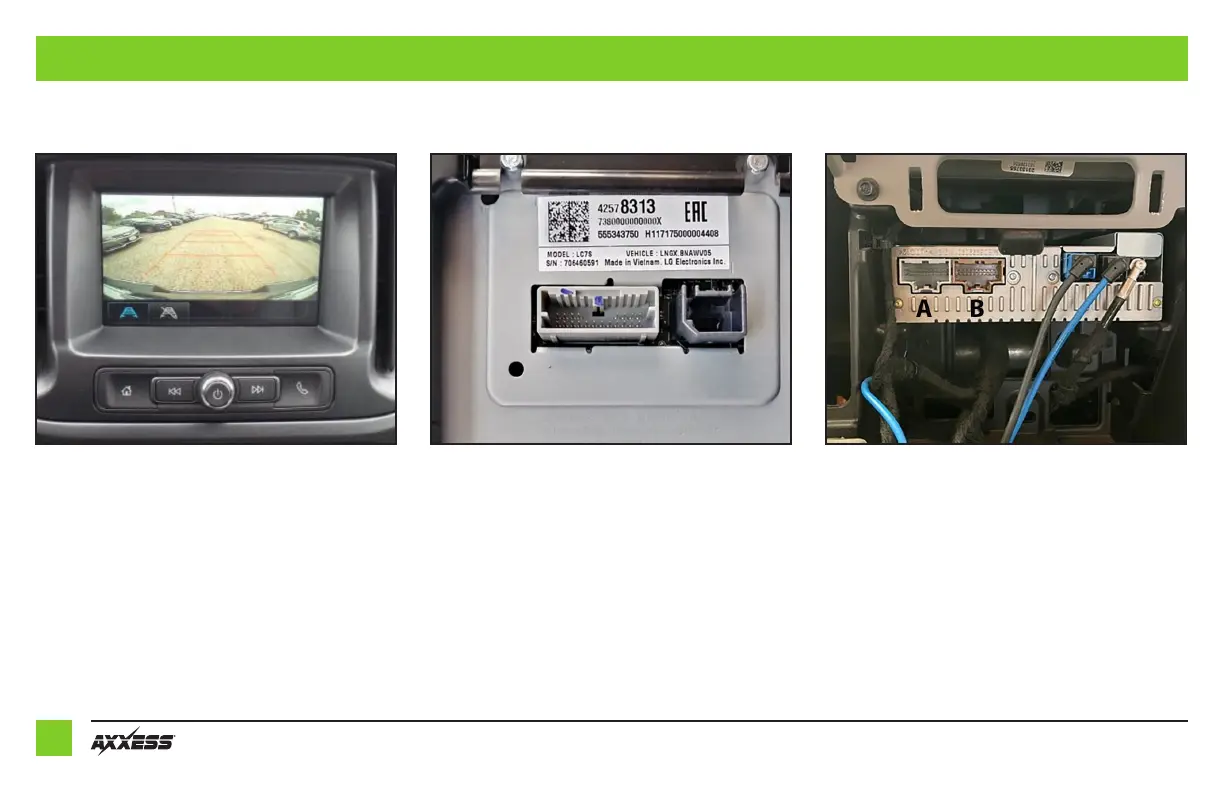

CONNECTIONS
1. Disconnect the factory Gray 20-pin connector that plugs
into the factory Radio Control Module.
2. Connect the (A) LD-GMLVDS2-AC and (B) LD-GMLVDS3-
AC into the factory connector that was removed and
connect the other end into the Radio Control Module.
3. Disconnect the LVDS connection from the factory screen,
connect that cable into the LVDS input side of the board.
4. Connect the LVDS output side of the interface into the
factory screen.
5. Connect the 6-pin connector from the LD-GMLVDS-AC2 to
the 6-pin from the (B) LD-GMLVDS3-AC harness.
6. Connect the 4-pin connector from the LD-GMLVDS-AC2 to
the 4-pin from the (A) LD-GMLVDS2-AC harness.
AXAC-GM2 CONNECTIONS
