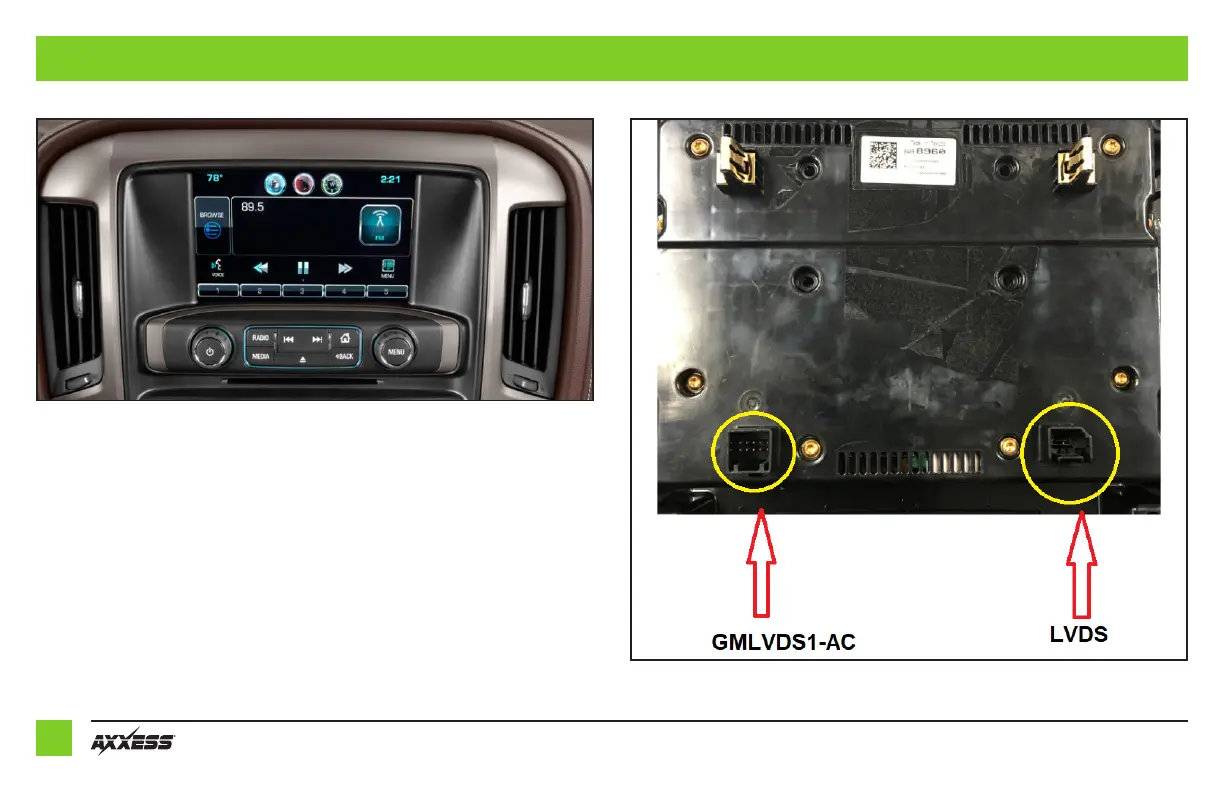

CONNECTIONS
1. Disconnect the factory 10-pin connector that plugs into the factory screen.
2. Connect your LD-GMLVDS1-AC into the factory connector that was removed and connect the
other end into the screen.
3. Disconnect the LVDS connection from the factory screen, connect that cable into the
LVDS input side of the board.
4. Connect the LVDS output side of the interface into the factory screen
5. Connect the 6-pin connector from the LD-GMLVDS1-AC to the 6-pin from the
LD-GMLVDS-AC harness.
