With the ignition cycled off:
1.
Remove the harness from the factory radio display, then install the AXAC-FD1 vehicle harness
in between.
2. Connect the AXAC-FD1 vehicle harness to the AXAC-FD1 interface harness.
3. Connect the AXAC-FD1 interface harness to the AXAC-FD1 interface.
4. Make sure the camera(s) is connected to the appropriate input.
5. Make sure the interface has been configured beforehand as shown in the Configuration
section. Failure to configure the interface will result in the interface not functioning properly.

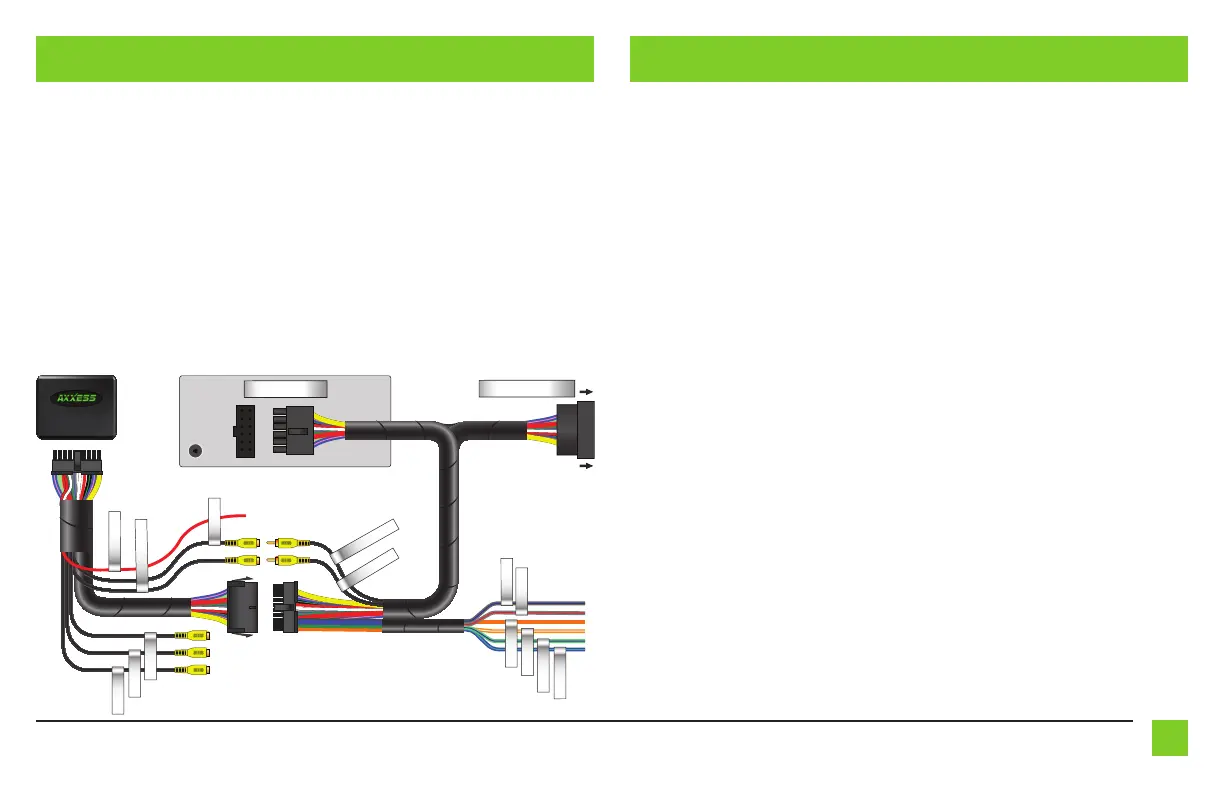

AUX-IN
Camera Input
Camera Output
Camera Output
Camera 1
FACTORY RADIO
TO VEHICLE HARNESS
Camera 4
Camera 2
Control 1
Control 2
Control 3
Control 4
Camera 3
Camera 12V
VSS output
VSS input
1. Cycle the ignition on and wait until the LED in the interface comes on.
Note: If the LED doesn’t come on within a few seconds, yet blinks instead, turn the key to the
off position, disconnect the interface, check all connections, reconnect the interface, and then
try again.
2. Test all functions of the installation for proper operation.
