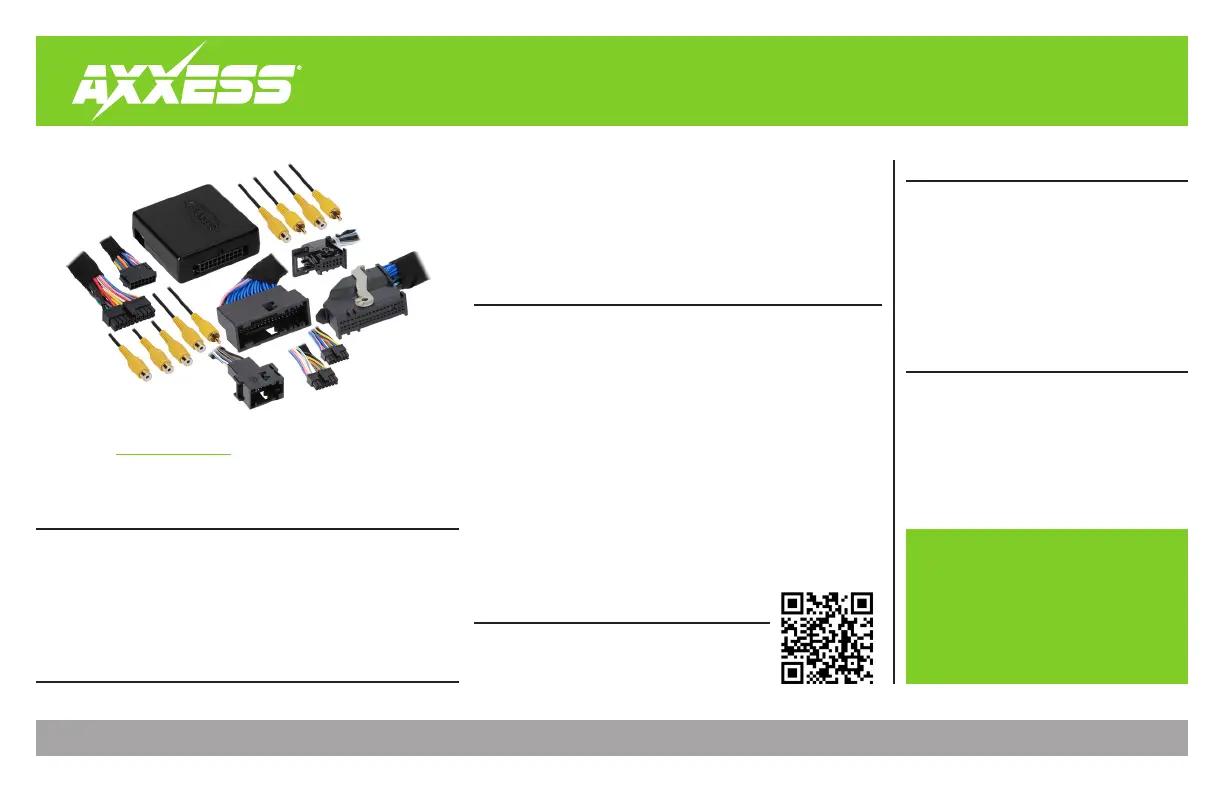

AXAC-FD1
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 9/12/25 INSTAXAC-FD1
INTERFACE FEATURES
TOOLS REQUIRED
INTERFACE COMPONENTS
REQUIRED ITEMS
TABLE OF CONTENTS
Introduction ...........................................................2
Applications ...........................................................2
Configuration ..................................................... 2-5
Connections ............................................................ 6
Installation .............................................................7
Programming .........................................................7
• Add multiple CAN-activated cameras with 4 camera inputs
• Includes AXAC camera interface and vehicle-specific harness
• Programmable 12-volt 5-amp switched output (configured through the
Axxess Updater program)
•
Reverse signal trigger generated via CAN bus communication of the vehicle
• Turn signal trigger generated via CAN bus communication of the vehicle
• 4 programmable camera control wires (configured through the Axxess
Updater program)
•
Can also be manually controlled and used along with an aftermarket radio
• VSS (Vehicle Speed Sense) input and output
• Micro “B” USB updatable
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties
• AXAC-FD1 interface
• AXAC-FD1 interface harness
• AXAC-FD1 vehicle harness (qty. 2)
• 12-pin T-harness
• 54-pin T-harness
Update Cable: AXUSB-MCBL (sold separately)
Supplemental Harness*:
AX-ADDCAM-FDSTK (sold separately)
Axxess Updater Program
*2014-Up models with 4.2-inch display screen only
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications
Camera Data Interface w/Pre-Wired Harness
Fits Select Ford Models 2011-2023*
*With either a 4.2-inch, 6.5-inch, or 8-inch display screen
Note: Only compatible with NTSC cameras.
APPLICATIONS (see next page)
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
