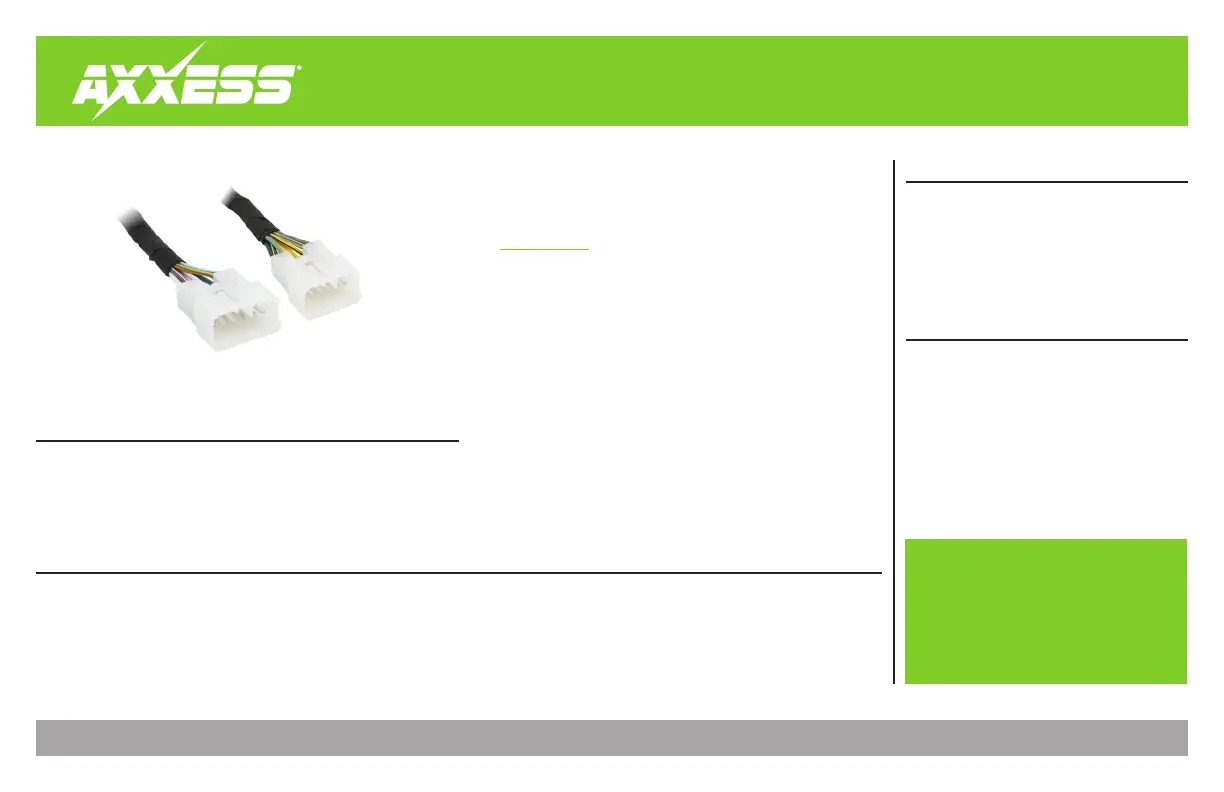

AXABH-LX2
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 6/25/25 INSTAXABH-LX2
ATTENTION: With the key out of the ignition, disconnect
the negative battery terminal before installing this
product. Ensure that all installation connections,
especially the air bag indicator lights, are plugged in
before reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties
TABLE OF CONTENTS
Amplifier Location & Connections
13 Speaker .............................................................2
14 Speaker ............................................................3
Amplifier Bypass Harness
Fits Select Subaru BRZ Models 2013-2017
Factory amp must stay plugged into vehicle in order for your factory
HVAC to work. When using the bypass harness only unplug connectors
that correspond with the amp bypass being used. All other remaining
plugs must stay plugged in with amp and remain in vehicle.
Refer to the following pages for the vehicle specific instructions for
wiring connections. Wiring connections vary per amplifier design.
There is a 13 speaker system, and a 14 speaker system.
If uncertain whether the vehicle contains a specific speaker or not,
test the wires with a tone generator, or check to see if the factory
wires are populated on the vehicle side. Alternatively, the wires can
be tested for impedance with a multimeter.
Visit AxxessInterfaces.com for more detailed information about the product and up-to-date
vehicle specific applications
• Vehicle-specific harness to bypass the factory amplifier
• Saves the installer unnecessary labor and wire
• 20 gauge wires
• Wire Length: 12”
APPLICATIONS
Subaru
BRZ ..................................................................... 2013-2017
Amplifier Location: Rear deck
FEATURES
