INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 6/06/25 INSTAX-PS
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 6/06/25 INSTAX-PS
AX-PS
A
B
-
+
A
B
AX-PS
A
B
-
+
AX-PS
A
B
-
+
A
B
AX-PS
A
B
-
+
INTERFACE COMPONENTS
• AX-PS Timer with wiring harness
INTERFACE COMPONENTS
• AX-PS Timer with wiring harness
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun, solder, and heat shrink
• Tape
• Wire cutter
• Zip-ties
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun, solder, and heat shrink
• Tape
• Wire cutter
• Zip-ties
Universal-Amp Turn On/Off Timer
Universal-Amp Turn On/Off Timer
SETUP/SETTINGS
(Timer settings 0-30 seconds*)
*Turn-On Delay
•
Press left button (A) to enter the Turn-On delay setting,
the Red LED flashes.
•
Press left (A) and right (B) button to set up the delay, up to 30 seconds. If there is
no action for 3 seconds, it will return to display mode.
*Turn-Off Delay
• Press right button (B) to enter into Turn-Off Delay setting, the Green LED flashes.
• Press left
(A)
and right (B) button to set up the delay up to 30 seconds. If there is
no action for 3 seconds, it will return to display mode.
Note: Display will turn off after 3 minutes on inactivity. To turn on the display press
either the A or B button
SETUP/SETTINGS
(Timer settings 0-30 seconds*)
*Turn-On Delay
•
Press left button (A) to enter the Turn-On delay setting,
the Red LED flashes.
•
Press left (A) and right (B) button to set up the delay, up to 30 seconds. If there is
no action for 3 seconds, it will return to display mode.
*Turn-Off Delay
• Press right button (B) to enter into Turn-Off Delay setting, the Green LED flashes.
• Press left
(A)
and right (B) button to set up the delay up to 30 seconds. If there is
no action for 3 seconds, it will return to display mode.
Note: Display will turn off after 3 minutes on inactivity. To turn on the display press
either the A or B button

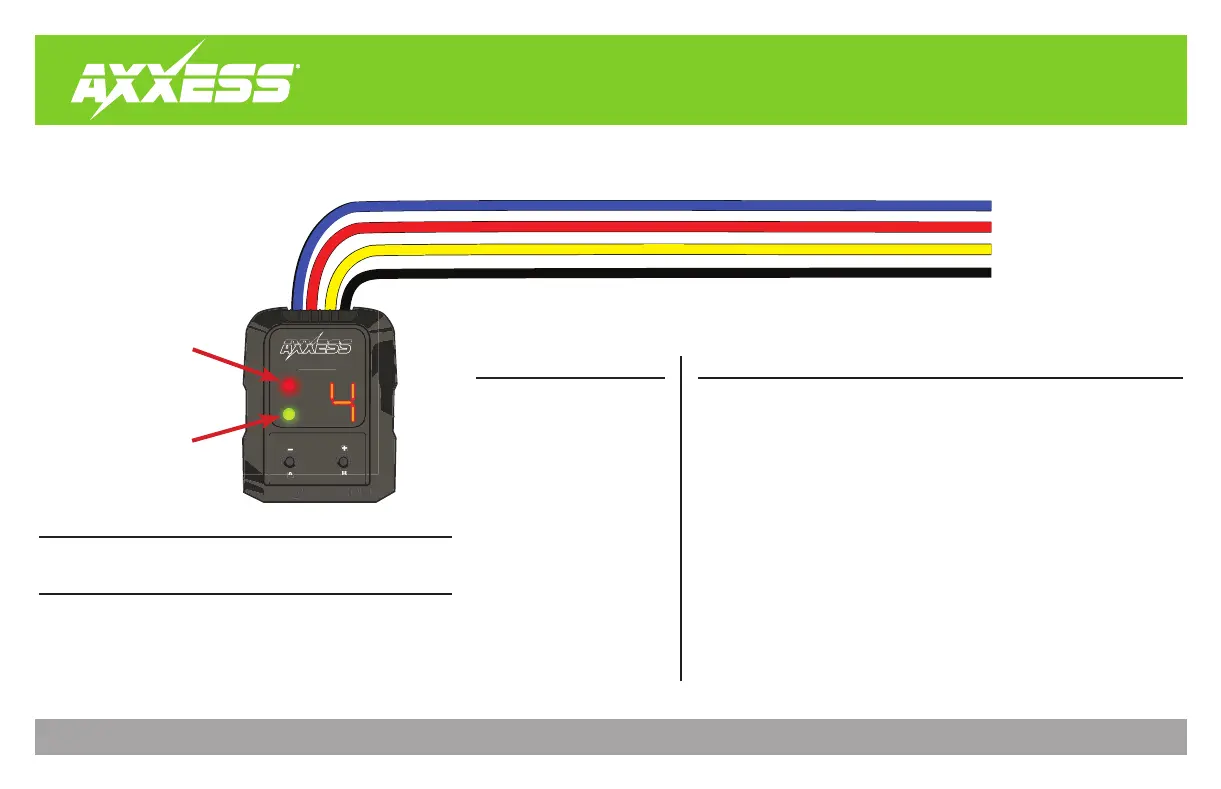

Blue: Remote turn on output
Red: Remote turn on input
Yellow: 12v Constant
Black: Ground
Blue: Remote turn on output
Red: Remote turn on input
Yellow: 12v Constant
Black: Ground
SPECIFICATIONS
• Programmable amplifier turn
on/off pop eliminator
• Programmable turn on/off
delay up to 30 seconds
• Working Voltage from 10 volts
to 16 volts
• Trigger output current: 500mA
• Trigger input current: 1mA
• 4-wire installation
SPECIFICATIONS
• Programmable amplifier turn
on/off pop eliminator
• Programmable turn on/off
delay up to 30 seconds
• Working Voltage from 10 volts
to 16 volts
• Trigger output current: 500mA
• Trigger input current: 1mA
• 4-wire installation
TURN-ON DELAY (RED LED)
TURN-ON DELAY (RED LED)
TURN-OFF DELAY (GREEN LED)
TURN-OFF DELAY (GREEN LED)
