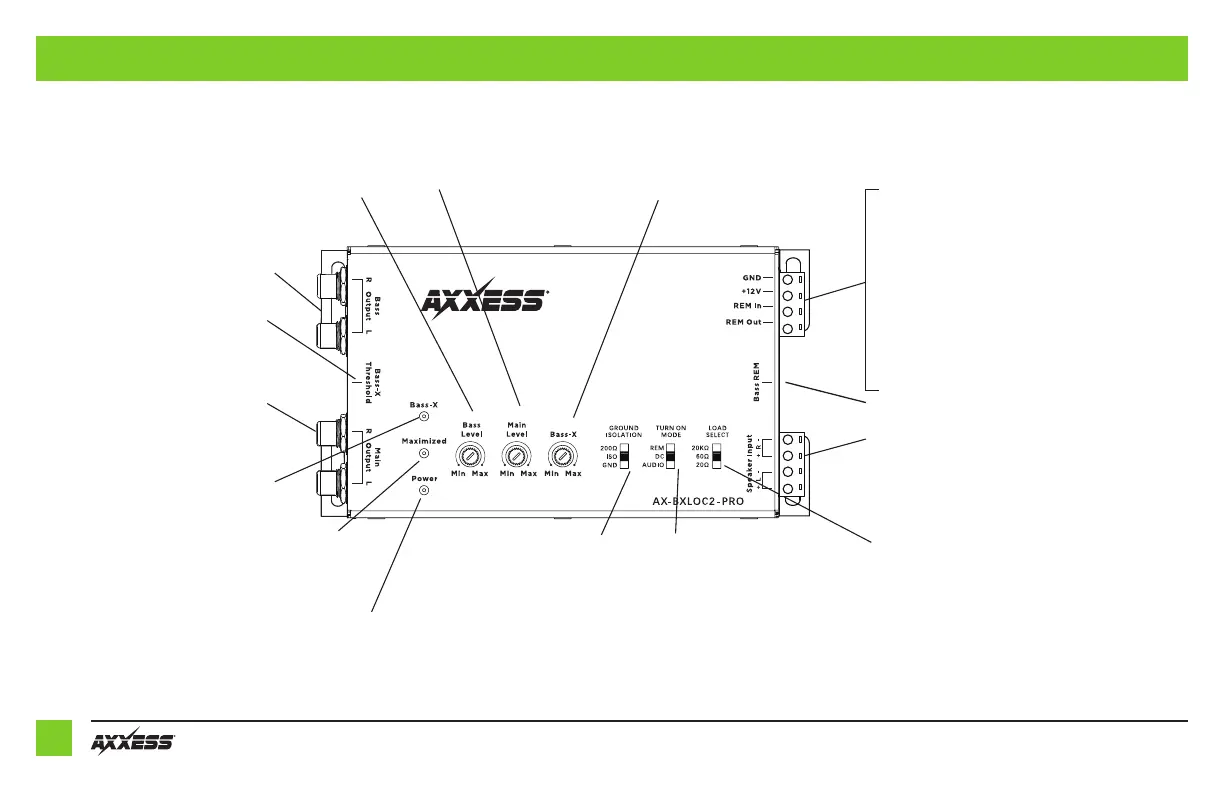

QUICK REFERENCE: AX-BXLOC2-PRO
GND - Connect to chassis ground.
+12 Volt - Connect to constant 12 volt source.
REM In - Remote turn on input or true Ignition, may
dier if DC or Audio is selected on the Turn on Mode
switch.
REM Out - Remote turn on output. Depending on the
Turn on Mode switches position the AX-BXLOC2-PRO
will provide a remote output signal. Refer to page 5 for
additional information.
Bass REM - Dash mount bass knob with voltage display.
Speaker Input - Speaker level input. Feed left and right
speaker wires from the head unit or amplier to the
respective terminals.
Bass-X - When lit the LOC is compensating
for a loss in low frequencies.
BASS-X - Puts the bass back into your
system. Refer to page 5 detail for addi-
tional information.
BASS OUTPUT - Low Frequency RCA output.
BASS-X THRESHOLD - Adjustment that deter-
mines when the bass is restored. Refer to
page 5 detail for additional information.
MAIN OUTPUT - Full Range level adjustment.
6.3”
Ground Isolation - Three selections :
200 Ohm, ISO, GND. Refer to page 5
for additional information. Default
setting: ISO.
Load Select - Three selectable ohm load
options, 20k, 60, and 20. Adjust resistance
loads to keep OE equipment producing audio.
Refer to page 5 for additional information.
BASS LEVEL - Adjusts Bass
output levels. Variable when
the Bass REM is plugged in.
Turn on mode - Selectable three
position switch that will control
when the LOC turns on. Settings
are REM, DC, and Audio. Refer to
page 5 for additional information.
MAIN LEVEL - Adjust output
levels of the Main RCA Outputs.
Power Indicator - When lit the
AX-BXLOC2-PRO is on.
Maximized - While adjusting the MAIN LEVEL
the Maximized LED may light up meaning a
clipped signal is detected. Reduce the MAIN
LEVEL adjustment until the LED is no longer lit.
