Page 24 of 78

MXNET 1G USER MANUAL

3.7 AC-MXNET-SW24

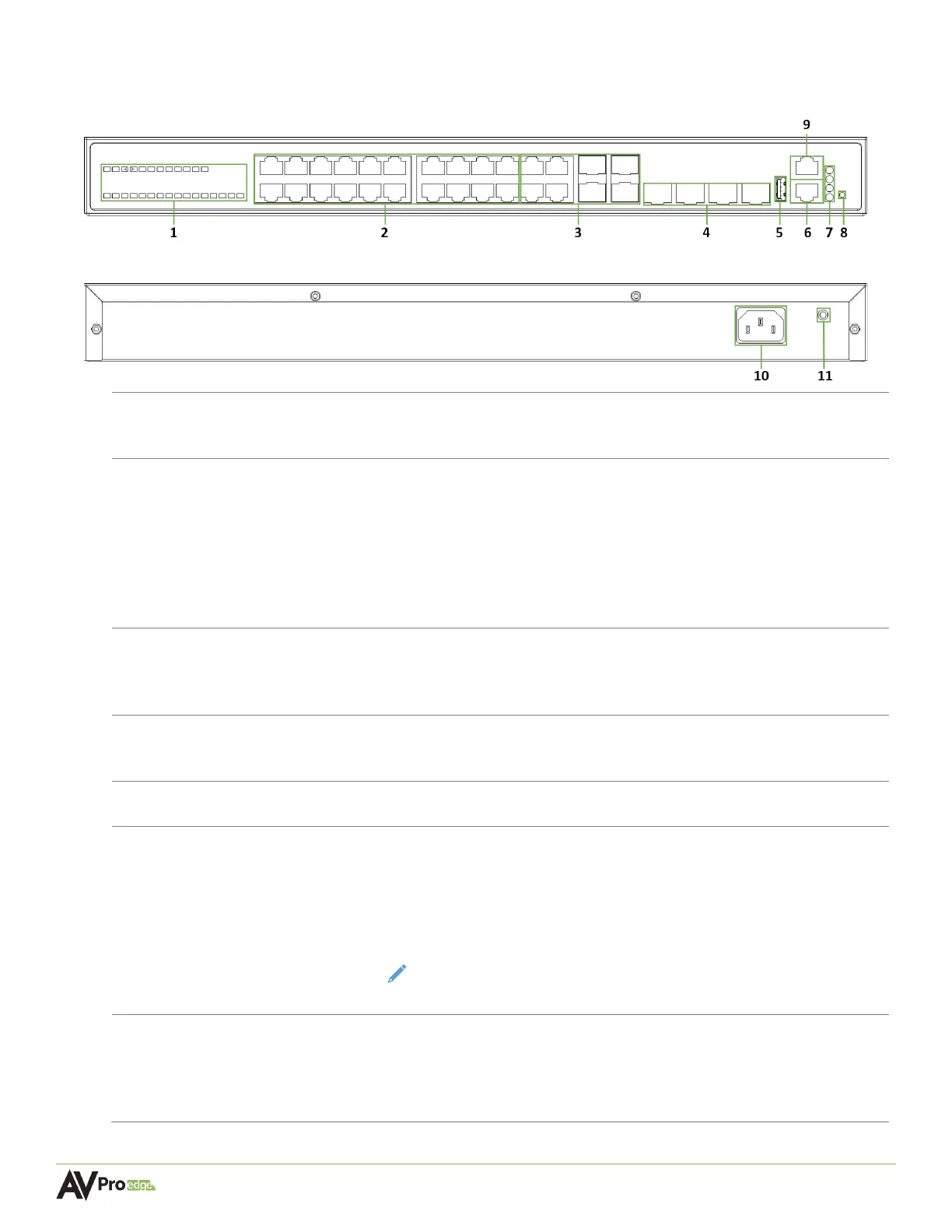

24-Port Network Switch Front Panel

24-Port Network Switch Rear Panel

1

ACTIVITY LIGHTS 1-28

•

Green LED status indicator lights

• Steady flickering green lights to indicate network activity is present

2

1GbE COPPER PoE

PORTS 1

-20

•

(8x) 8-pin RJ-45 female connector ports, 1000BASE-T copper Ethernet

• Supports standard PoE power, IEEE 802.3AF (15.4 W)

• Maximum power consumption of 6.5 W

• 10/100/1000Mbps auto-negotiation

• MDI/MDI-X cable mode auto-negotiation

• Maximum distance 100m (330ft) over Cat5e and higher

• Connects to the encoders, decoders, and CBOX

3

1GbE / SFP COMBO

PORTS

25-28

•

Supports a 1 Gigabit Ethernet copper connection or SFP fiber module

for longer runs to the BI DIR. O.M. LC Fiber port on the encoders and

decoders

4

10 GIGABIT/SFP+

PORTS 49-52

•

Used for stacking multiple network switches together with 40G link

aggregation

5

USB 2.0 PORT

• Used for managing the switch’s network configuration settings

6

MGMT PORT

•

8-pin RJ-45 female connector port

• Used for managing the switch’s network configuration settings and

tracking system data.

• Connects to any port (2-7) on the AC-MXNET-CBOX for tracking switch

performance using the Mentor web UI.

NOTE: This is a required physical connection in order to fully access the

switch’s Switch Management page within the Mentor web UI.

7

SYSTEM STATUS

LIGHTS

•

POE LED remains solid green to indicate PoE is present on the switch

• DIAG LED steadily flashes green to indicate a continuous diagnostic of

the system is running on normal operations

• PWR LED remains solid green to indicate the switch is powered on
