MXNET 1G USER MANUAL

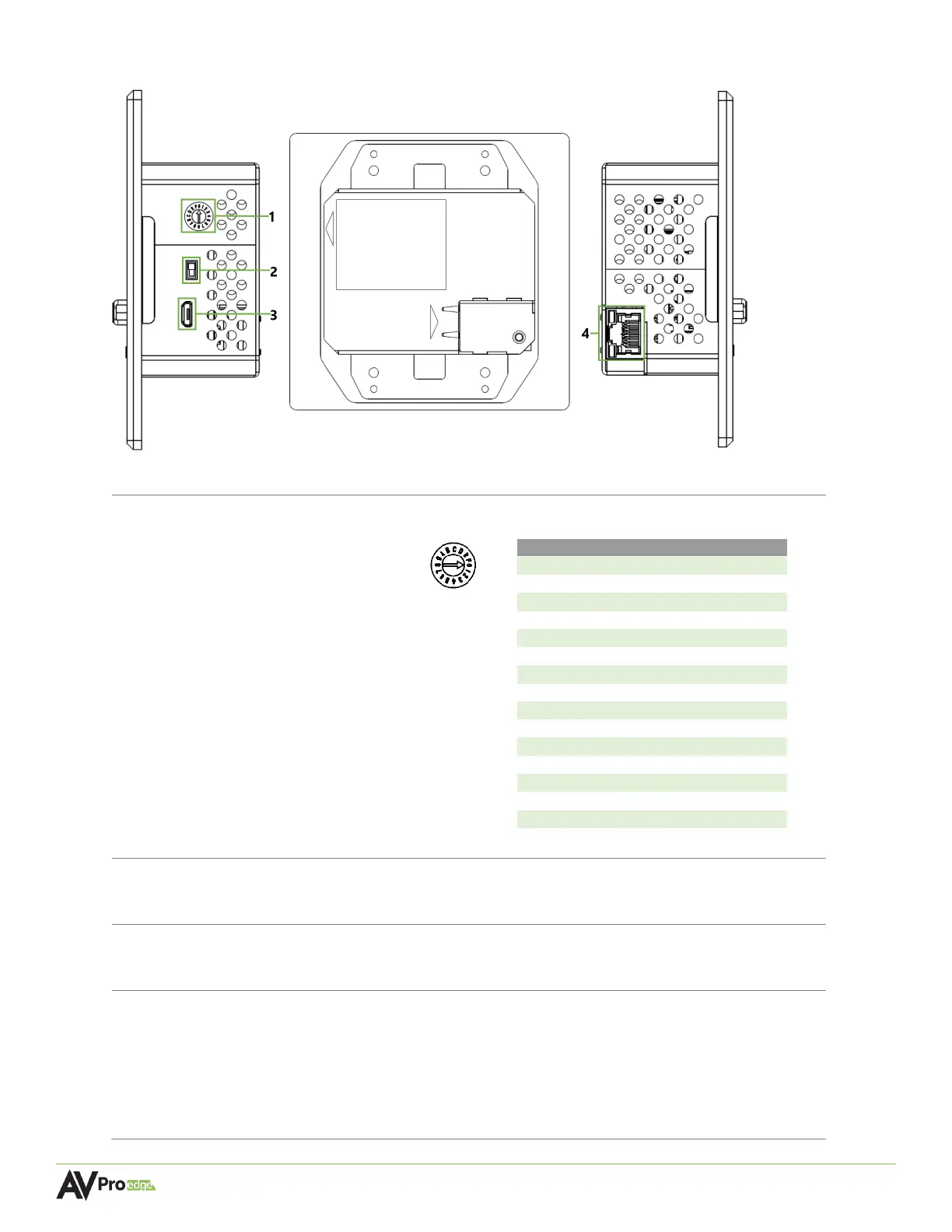

Encoder Wall Plate Rear and Side Panels

1

EDID DIAL

•

Dial for manually setting an EDID on the encoder wall plate

EDID SETTINGS

EDID FOLLOW SOFTWARE (default)

0

1080P 2D 6CH

1

1080P 3D 6CH

2

1080P 3D 6CH

3

4K30Hz 3D 2CH

4

4K30Hz 3D 6CH

5

4K30Hz 3D 8CH

6

1080P 2D 2CH HDR

7

1080P 2D 6CH HDR

8

1080P 3D 2CH HDR

9

1080P 3D 6CH HDR

A

4K30Hz 3D 2CH HDR

B

4K30Hz 3D 6CH HDR

C

4K30Hz 3D 8CH HDR

D

1920 x 1200 3D 2CH HDR

E

USER EDID

F

2

USB FUNCTION

•

FPGA/MCU toggle switch

• Service function for AVPro Edge technical assistance

3

USB PROPRIETARY

•

Micro-USB Type B female connector port

• Service port for AVPro Edge technical assistance

4

1GbE NETWORK

•

8-pin RJ-45 female connector, 1000BASE-T copper Ethernet port

• Supports standard PoE power, IEEE 802.3AF (15.4 W)

• Maximum power consumption of 6.5 W

• 10/100/1000Mbps auto-negotiation

• MDI/MDI-X cable mode auto-negotiation

• Maximum distance 100m (330ft) over Cat5e and higher
