Page 15 of 78

MXNET 1G USER MANUAL

7

IR OUT

•

3.5mm mono jack (TS) IR transmitter port

• Sends encapsulated/virtualized IR signals upstream via the MXNET API

8

IP MONITOR

•

Built-in front panel mini-OLED screen “data window”

• Displays the encoder’s custom name or MAC address and IP address

9

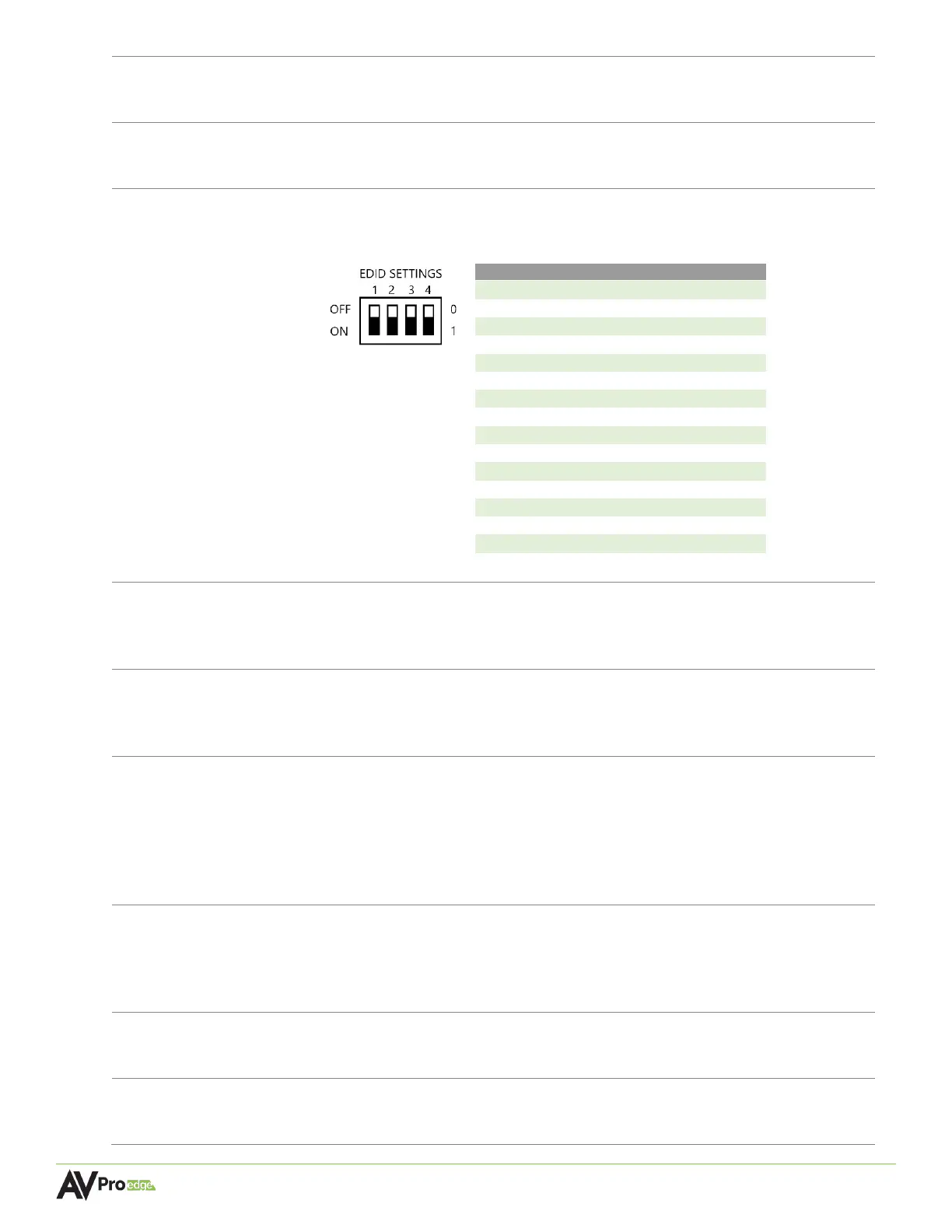

EDID

SETTINGS

•

Dipswitches for manually setting an EDID on the encoder, can also be done in

Mentor, either method will overwrite the previous setting

JUMPER

1234

FOLLOW SOFTWARE (default)

0000

1080P_2D_6CH

1000

1080P_3D_6CH

0100

1080P_3D_6CH

1100

4K30Hz_3D_2CH

0010

4K30Hz_3D_6CH

1010

4K30Hz_3D_8CH

0110

1080P_2D_2CH_HDR

1110

1080P_2D_6CH_HDR

0001

1080P_3D_2CH_HDR

1001

1080P_3D_6CH_HDR

0101

4K30Hz_3D_2CH_HDR

1101

4K30Hz_3D_6CH_HDR

0011

4K30Hz_3D_8CH_HDR

1011

1920x1200_3D_2CH_HDR

0111

USER_EDID

1111

10

USB SELECT

•

FPGA/MCU toggle switch

• Used for configuring the encoder for point-to-point connection with an

MXNet 1G decoder (default setting is MCU ISP)

11

USB

•

Micro-USB Type B female connector port

• Used for configuring the encoder for point-to-point connection with an

MXNet 1G decoder

12

GbE

NETWORK

•

8-pin RJ-45 female connector, 1000BASE-T copper Ethernet port

• Supports standard PoE power, IEEE 802.3AF (15.4 W)

• Maximum power consumption of 6.5 W (AVDM 9.5 W)

• 10/100/1000Mbps auto-negotiation

• MDI/MDI-X cable mode auto-negotiation

• Maximum distance 100m (330ft) over Cat5e and higher

13

BI DIR. O.M.

LC FIBER

•

Bidirectional SFP fiber optic connector port

• Supports single mode or multimode SFP modules for extremely long runs

• Recommended single mode fiber: LC to LC 1310nm, up to 40km (24.85 miles)

• Recommended multimode fiber: LC to LC 850nm, up to 550m (1804ft)

14

HDMI LOOP

OUT

•

19-pin HDMI Type A female connector port

• Copy EDID functionality used in conjunction with front panel button

15

HDMI IN

•

19-pin HDMI Type A female connector port

• Source device input for HDMI connection
