10

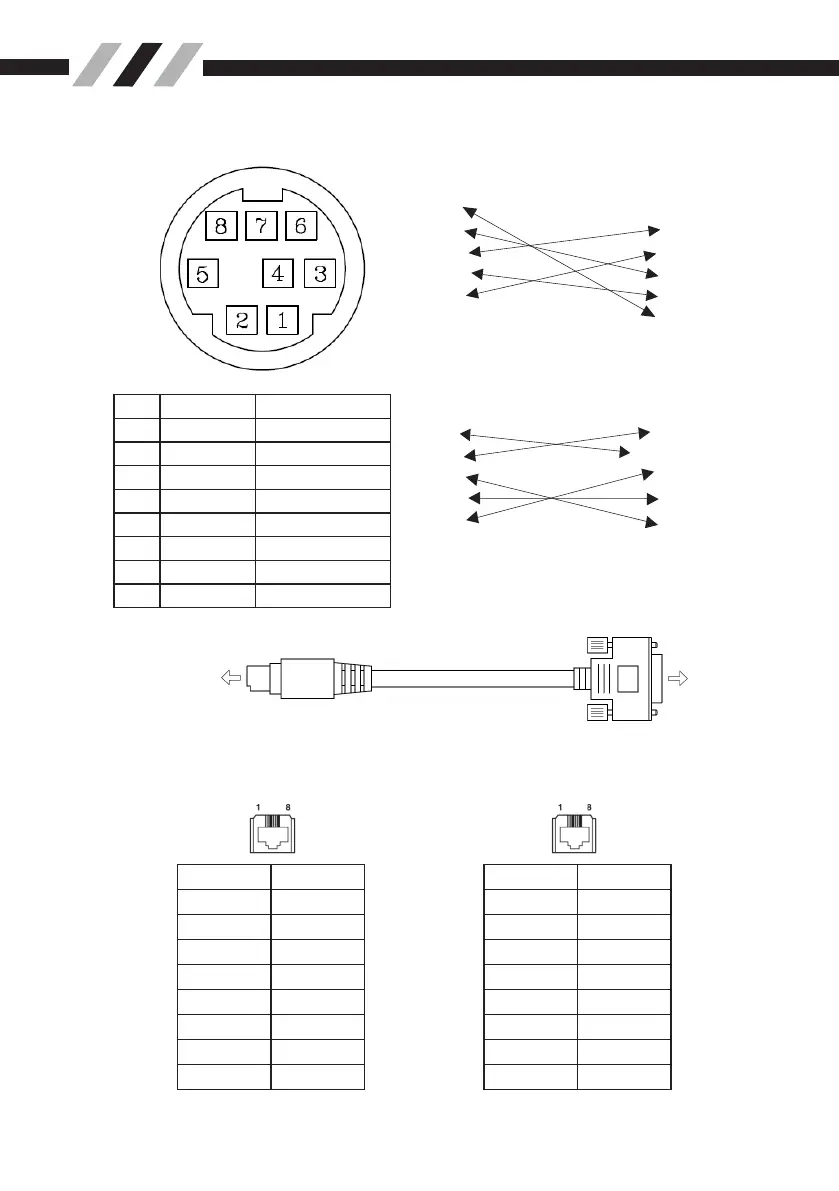

3.2 RS232 Interface Definition
3.3 RS232 Interface Specification
How to connect the computer or control keyboard to the camera
Video camera WINDOWS DB-9
1.DTR 1. DCD
2.DSR 2. RXD
3.TXD 3. TXD
4.GND 4. DTR
5.RXD 5. GND
6.GND 6. DSR
7.NC 7. RTS
8.NC 8. CTS
9. RI
NO. Function Definition
1 DTR Data Terminal Ready
2 DSR Data Set Ready
3 TXD Transmit Data
4 GND Ground
5 RXD Receive Data
6 GND Ground
7 NC No Connect
8 NC No Connect
Video camera Mini DIN
1.DTR 1. DTR
2.DSR 2. DSR
3.TXD 3. TXD
4.GND 4. GND
5.RXD 5. RXD
6.GND 6. GND
7.NC 7. NC
8.NC 8. NC
VISCA RS-422 pin array
IN OUT
Pin number Function
1 TX-
2 TX+
3 RX-
4 GND
5 GND
6 RX+
7 N.C
8 N.C
Pin number Function
1 RX-
2 RX+
3 TX-
4 GND
5 GND
6 TX+
7 N.C
8 N.C
4K Ultra HD PTZ Camera
Camera S232
Input port (IN)
MD8M
（pin）
Computer or control
keyboard
RS232 interface
DB9F
（hole）
