INSTALLATION (HDM2-SPLITPRO-T4K-V3)
HARDWARE SETUP
To setup Avenview HDM2-SPLITPRO-T4K-V3 follow these steps below:
1. Mount or fix the HDM2-SPLITPRO-T4K-V3 on a secure shelf, AV rack or steady surface;
2. Ensure the power is off on the HDM2-SPLITPRO-T4K-V3, all source devices and displays that will be connected;
3. Connect your (4) four HDMI cables to the (4) four HDMI sources such as (Media Box, Blu-ray player, Laptop or Set-Top-
Box or Gaming device);
4. Connect your HDMI cables to the single HD Displays, LCD or PC monitors that is receiving the video signals.
5. Power on all devices.
6. Connect your computer to HDM2-SPLITPRO-T4K-V3 via RS232 using an RS-232 to USB Cable or Ethernet
cable in order to control via RS232 or Telnet.
SERIAL PORT SETTING

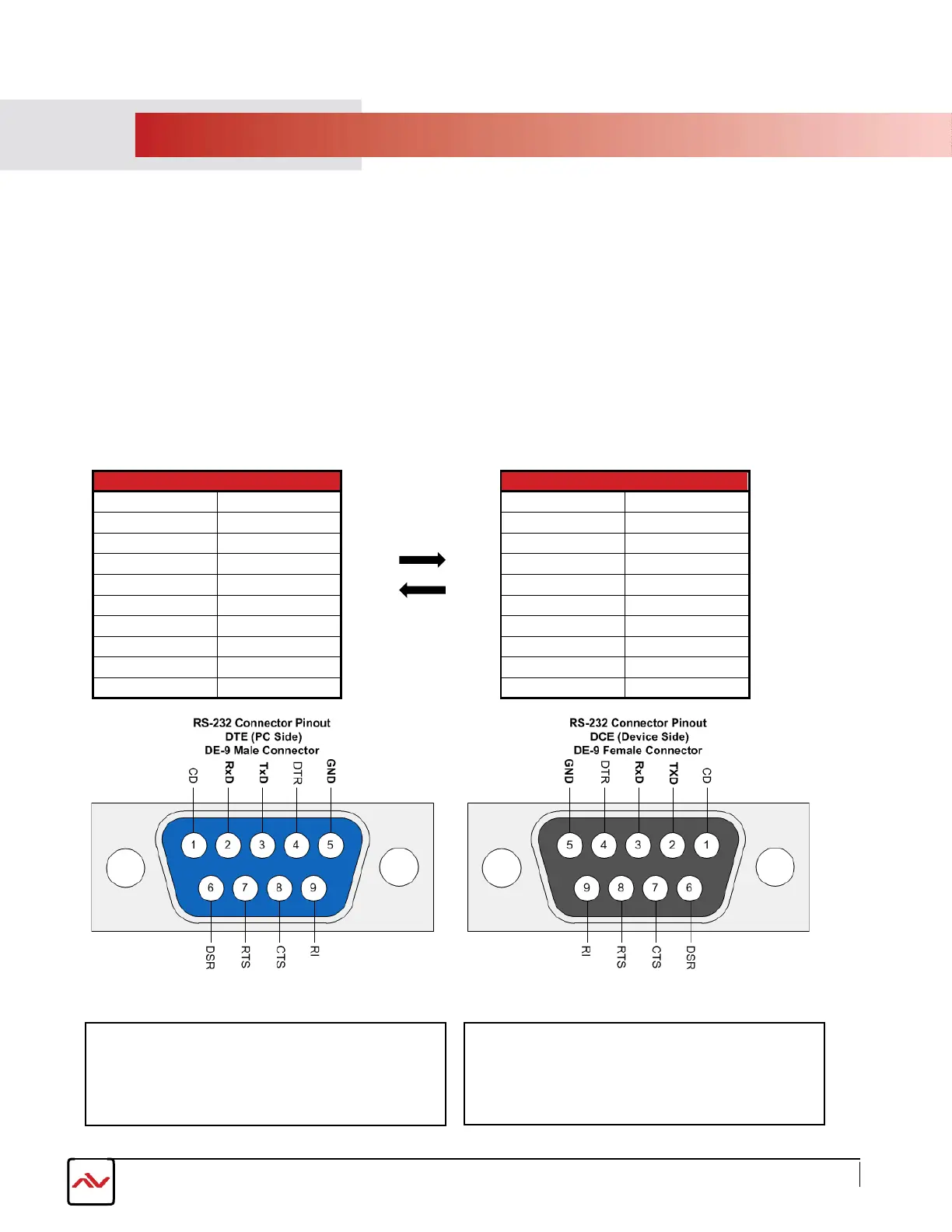

RS-232 Wiring (Cross Cable Connection)
Baud Rate: 115200bps
Data Bit: 8 bits
parity: None
flow Control: None
Stop Bit: 1
RS-232 SETTINGS
Remote Controller(PC)
PIN
Assignment
1
NC
2
TxD
3
RxD
4
NC
5
GND
6
NC
7
NC
8
NC
9
NC
HDM-SPLITPRO-4K-V2
PIN
Definition
1
NC
2
RxD
3
TxD
4
NC
5
GND
6
NC
7
NC
8
NC
9
NC
