Page 10
4.1 INSTALLATION (HDM-SPLITPRO-4A-V2)
HARDWARE SETUP
To setup Avenview HDM-SPLITPRO-4A-V2 follow these steps
below:
1. Mount or fix the HDM-SPLITPRO-4A-V2 on a secure shelf, AV rack or steady surface;
2. Ensure the power is off on the HDM-SPLITPRO-4A-V2, all source devices and displays that will be connected;
3. Connect your (4) four HDMII cables to the (4) four HDMI sources such as (Blu-ray Player, Laptop or Set-Top-Box or
Gaming device);
4. Connect your HDMI cables to the single HD Displays, LCD or PC Monitors that is receiving the video signals.
5. Power on all devices.
6. Connect your computer to HDM-SPLITPRO-4A-V2 via it's Network IP address in a web browser, RS-232 to USB or
Ethernet cable in order to control via Telnet or RS232.
NOTE: The IP address can be configured or viewed in the OSD Menu
Please refer to HDM-SPLITPRO-4A-V2 product page on www.avenview.com for Control Commands guide

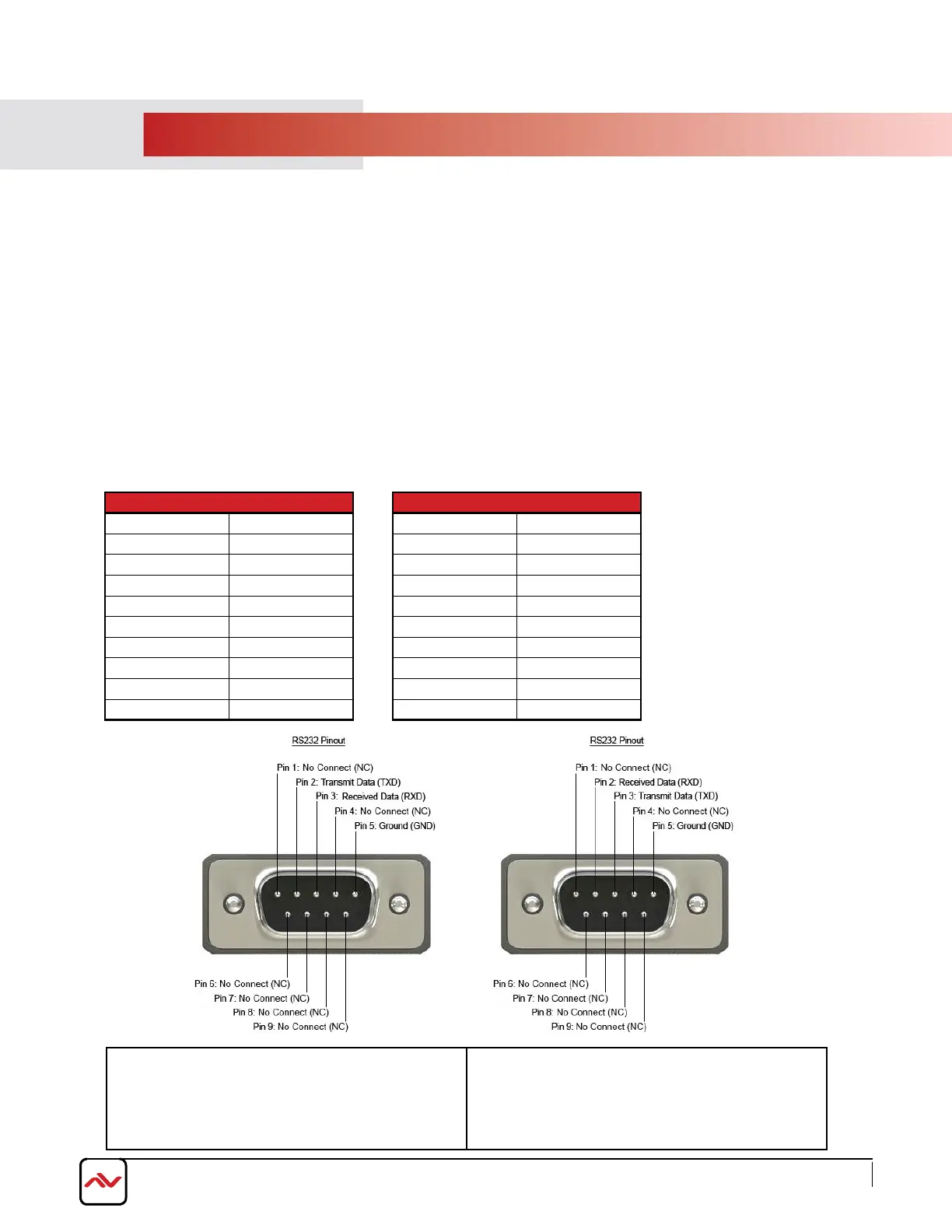

SERIAL PORT SETTING
RS-232 Wiring (Cross Cable Connection)
HDM-SPLITPRO-4A Remote Controller(PC)
PIN Assignment
PIN De finition
1 NC
1 NC
2 TxD
2 RxD
3 RxD
3 TxD
4 NC
4 NC
5 GND
5 GND
6 NC
6 NC
7 NC
7 NC
8 NC
8 NC
9 NC
9 NC
è
ç
RS-232 SETTINGS
Baud Rate: 115200bps
Data Bit: 8 bits
Parity: None
Flow Control: None
Stop Bit: 1
