User Manual
Commercial Countertop Griddles, Charbroilers, and Ranges
6
www.AvantcoEquipment.com

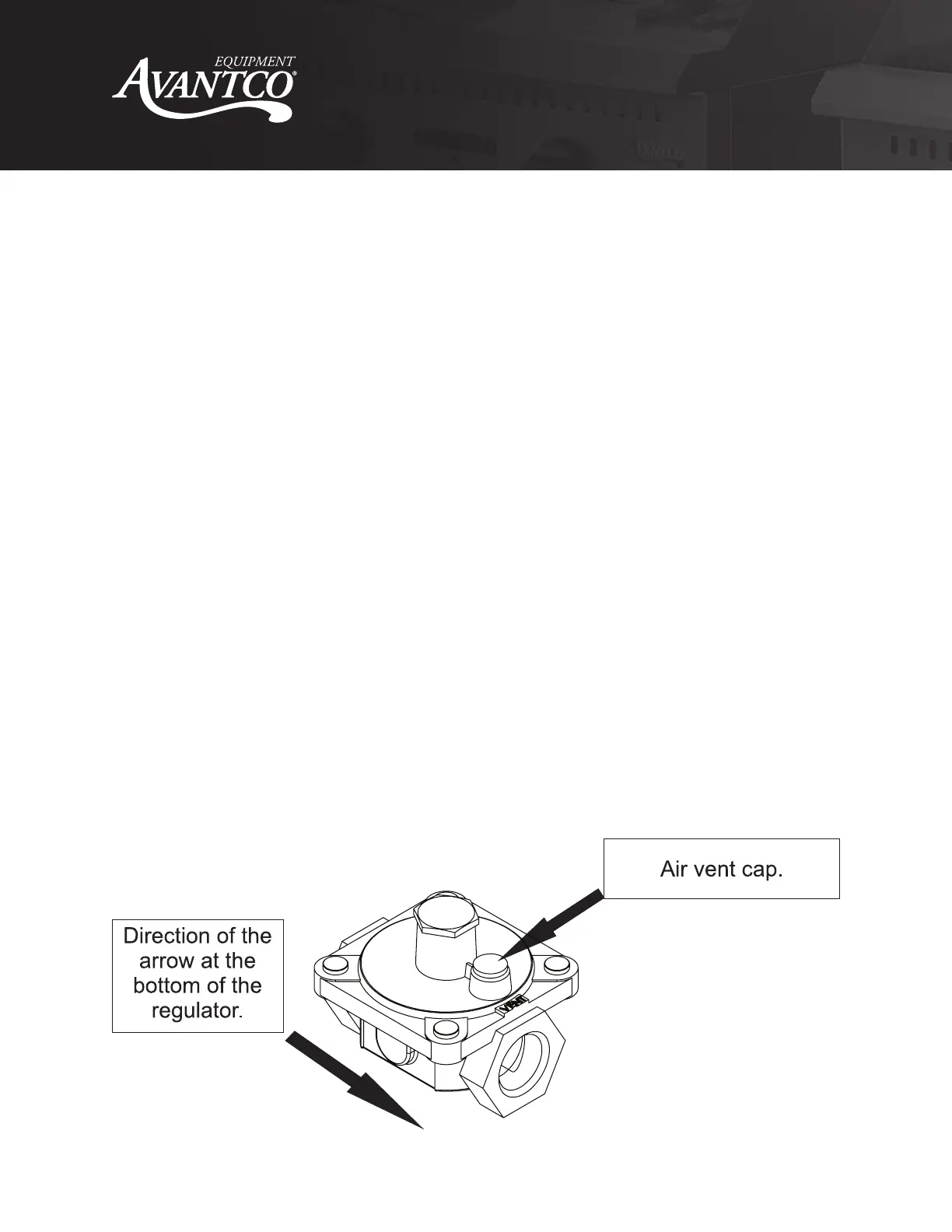

Gas Connection
Gas Pressure Regulator
The gas pressure regulator (which accompanies the product) is of utmost importance for its
operation and is indispensable. The pressure regulator must be installed in the product supply
gas line (failure to install the pressure regulator will void the equipment warranty).
Regulators are supplied with 3/4” NPT connection ranges. The regulator is factory set by
102mmH2O (4” WC) water column gas pressure at connector (natural gas) and gas pressure at
254mmH2O (10” WC) connector for LPG gas operation.
Before connecting the regulator, check the supply line pressure in the product. This may not
exceed the maximum pressure of 3.45kPa (1/2 PSI). If the gas supply line pressure is higher than
indicated, use a pressure reducing regulator.
At the bottom of the regulator body there is a gas direction arrow to minimize installation error.
This arrow should point to the device’s direction of entry into the product.
The blue air vent cap on the top of the regulator is part of the regulator and should not be
removed.
The gas inlet line size of this appliance is 3/4” NPT. For proper operation, the gas supply line
must be the same size or larger. Gas line size should not be reduced at any point along the
supply line.
A gas pressure regulator and a shut-o valve supplied by the technician shall be installed in the
gas service line before the appliance - in a physical location where it can be reached quickly in
an emergency.
Manual shuto valve
