This section describes how to install and commission the Extension Card 2.0 (EC 2.0):

1. Disconnect connections

Disconnect all cable connections from the device.

2. OpenDSP/DSPamplier

Open the device by removing the side panel with the Extension Card 2.0 input and the bottom plate, as described in

the user manual of your specic DSP model.

3. Prepare the side panel

Remove the cover panel of the EC 2.0 from the previously removed side panel by loosening the two Allen screws

on the back. Now t the new cover panel supplied with the EC 2.0. Ensure correct alignment and tighten the screws

hand-tight only.

4. Prepare EC 2.0

Remove the nut and the washer from the antenna socket (page 11, point 2) of the module.

5. InsertEC2.0intotheDSP/DSPamplier

Insert the module into the designated socket inside the device. Information about the socket position can be found

in the user manual of the respective DSP product.

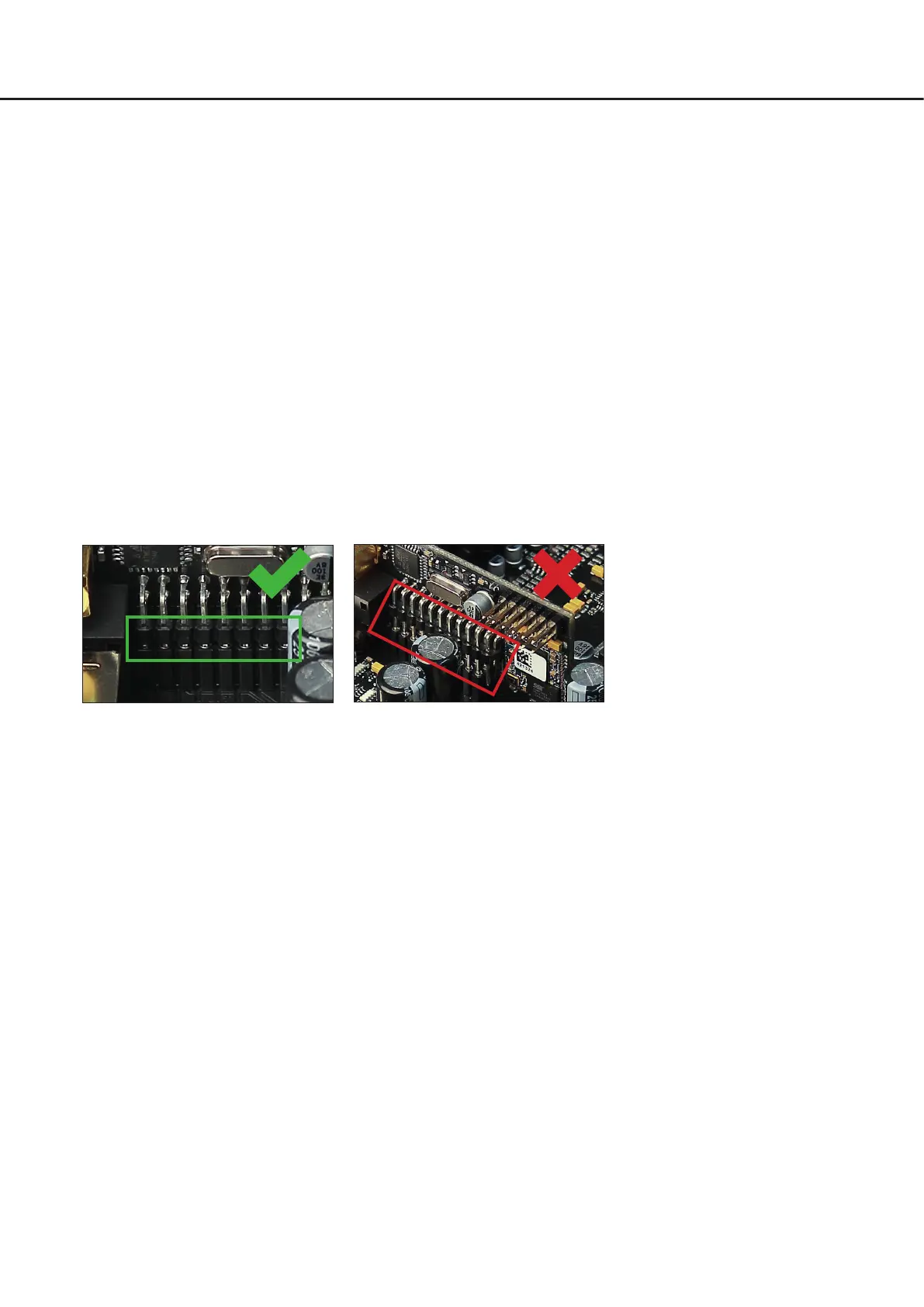

Make sure that the module is installed properly and all pins are fully inserted into the socket.

6. ReassembletheDSP/DSPamplier

Reassemble the device as described in the user manual of your specic model.

7. FixEC2.0

Put the washer and the nut on the antenna socket and bolt it to the side panel. Do not overtighten the nut to avoid

damage.

8. Commissioning

Reconnect all cables and power on the device. The EC 2.0 will be automatically recognized, and the module’s Info

LED (page 11, point 1) will ash blue.

9. Signal routing in DSP PC-Tool

In the DSP PC-Tool software, the inputs can be freely congured either as additional “Main” inputs or as an “AUX”

source.

To do this, connect the DSP / DSP amplier to your PC and launch the DSP PC-Tool software.

The routing can be congured in the “Signal Management (IO)” section of the “Routing” tab.

Installation&conguration
