9
en

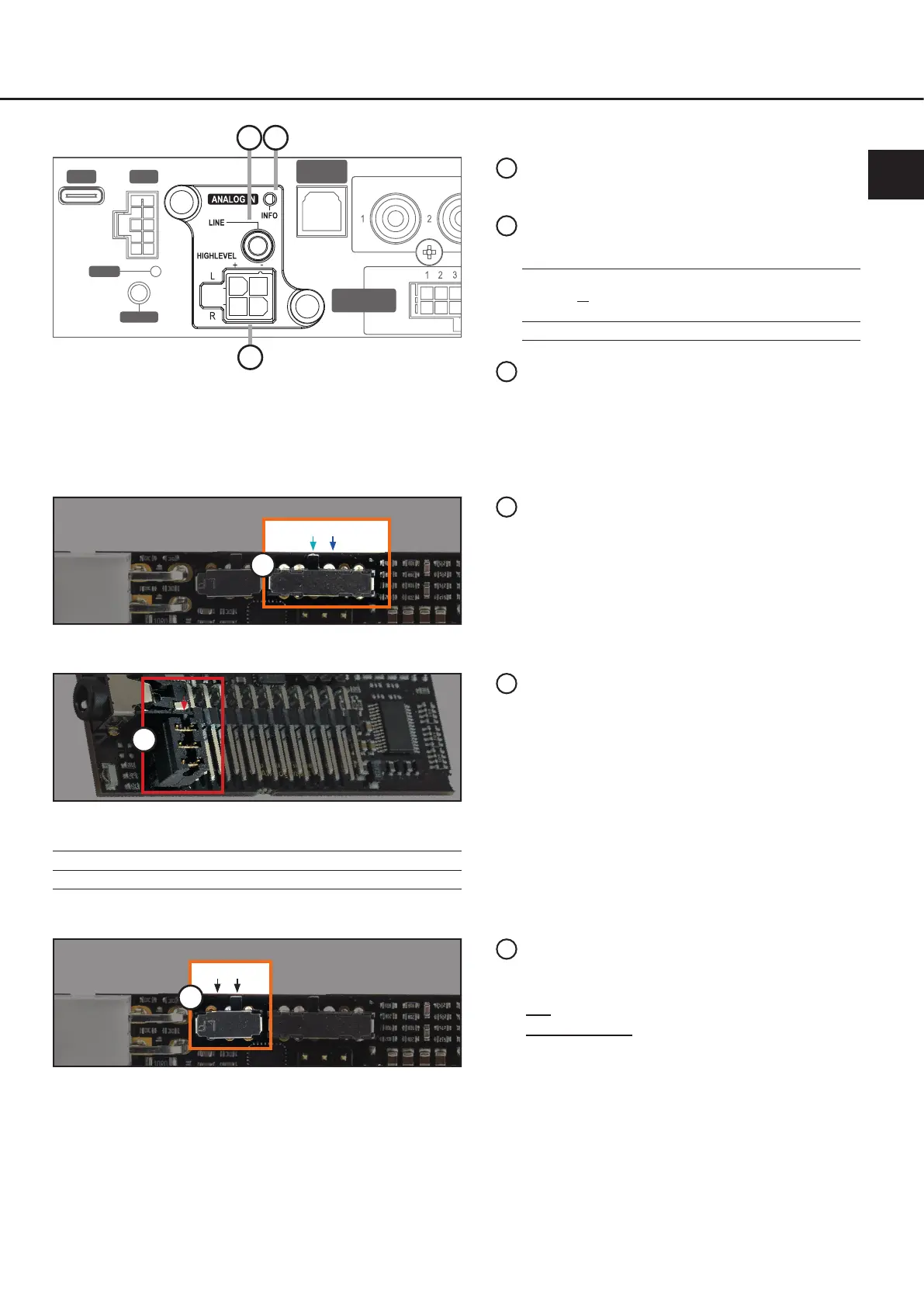

Connectors and control units
LINE INPUT
SCP
OPTICAL
INPUT
USB
HIGHLEVEL
INPUT
HIGHLEVEL
INPUT
REM
OUT
STATUS
CONTROL
1
3
2
Line input
2-channel stereo Line input
1
Info LED
Displays the status of the ANALOG IN module:
Green:
Line input used (regardless of the Load jumper)
or
Highlevel input used & Load jumper removed
Orange:
Highlevel input used & Load Jumper installed
2
Highlevel input
2-channel stereo highlevel input
3
OOn
Switch position
input sensitivity Load jumper conguration
11 V / 3.5 V Jumper installed
30 V / 8 V Jumper removed
Last Jumper
4
Load jumper
Used to set the input load for the highlevel input.
IMPORTANT: If the output voltage of the signal
source is between 11 V and 30 V (e.g., OEM am-
pliers), the jumper must be removed immediate-
ly to prevent damage to the system.
Additionally, the input sensitivity switch must be
set to the 30 V / 8 V position.
5
30V / 8V11V / 3.5V
5
Input sensitivity switch
Used to set the input sensitivity range. The ne
adjustment is done in the DSP PC-Tool software
(page 11, point 8).
Factory setting: 11 V / 3.5 V
4
Auto Remote switch
Used to congure the Auto Remote function of
the highlevel input.
On: Activation via highlevel signal.
O (by default): Activation via highlevel signal
disabled.
6
6
