21
en

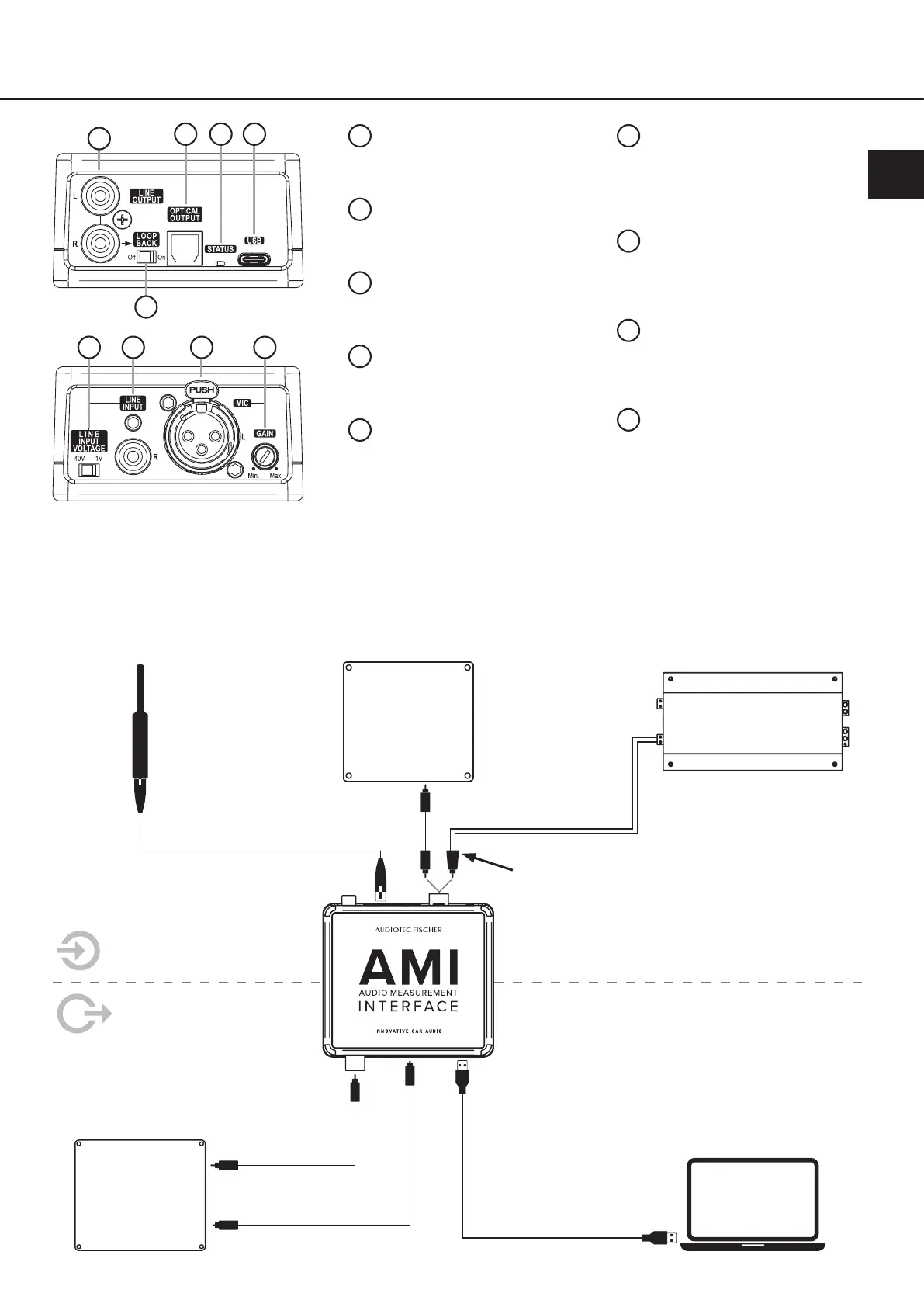

3. Connectors and control units
OEM amplier
DSP /
DSP amplier
DSP
PC
2 m XLR microphone cable
Microphone
3.5 m mono
RCA cable
3 m USB-C to USB-C
cable with USB-A adaptor
3.5 m optical
toslink cable
3.5 m stereo
RCA cable
RCA-to-Highlevel
adaptor
Speaker wire
1
Line output
Stereo line outputs for analog
playback into the DSP
2
Optical output
Optical, SPDIF stereo output for
digital playback into the DSP
.
3
Status LED
Indicates a successful connection to
the PC
4
USB-C input
Acts as the PC audio interface and
powers the device
5
Loopback switch
Feed the right analog line output
back to the right analog line input to
perform loopback measurements
6
Line input (R) voltage switch
Switch for adjusting the maximum
input sensitivity of the line input (R)
1 V: for AISA measurements
40 V:
for measuring highlevel signals
7
Line input (R)
Input for connecting an RCA
output signal from a DSP for
AISA measurements (1 V) or for
connecting a high-level signal (40 V)
8
Microphone input (L)
For connecting a condenser
measurement microphone with
phantom power
9
Gain control
Control for adjusting the input sensi-
tivity of the microphone input (L)
1
2 3 4
5
6 7 8 9
or
Incoming side AMI
Outgoing side AMI
