M88 WP1
www.audibax.com 9

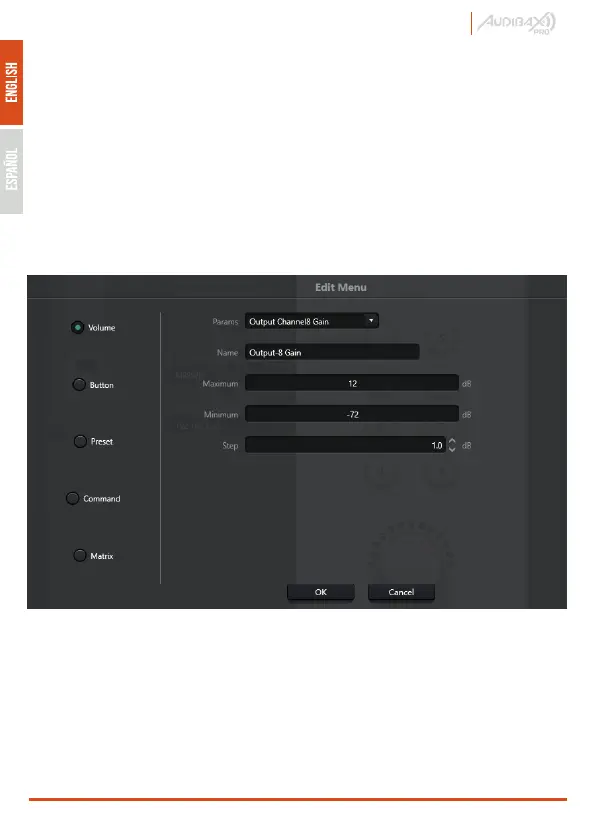

Among the options that can be assigned to each master button we will have:
Volume:
We can assign any audio input or output available on the unit, assign a name to the
function, and the maximum and minimum volume range to program.
Button:
Mute function of an input, output or general channel
Preset:
Assign a working memory (up to 16 selectable)
Command:
Assign control commands, UDP, RS232 or RS485, to send commands to other units
connected to the NexusX ecosystem
Click "add menu" to pop up menu selection box, choose corresponding menu and
confirm it. After finishing the setting of software menu configuration, click toolbar
download icon to download the configuration to panel hardware.
OPERATION STEPS OF PANEL
1. Display panel name and IP address on main interface and turn the knob left or right to
switch menu.
2. Press the button on the knob, and the second row on menu interface starts to flash,
which indicates that it enters edit mode.
3. Turn the knob left or right to change value.
4. Press the button on the knob again to edit mode and go back to menu mode.
Press double click on button 1 as in the example to access the different types of
commands offered by the panel:
