www.audibax.com 41
M88 DSP / M88 DSP Dante
CONTROL
External Control Programmer
External control programmer supports UDP and RS232 and controls protocols covering all
controls parameters of processor, including parameter controls, parameter acquisition
and preset calling.

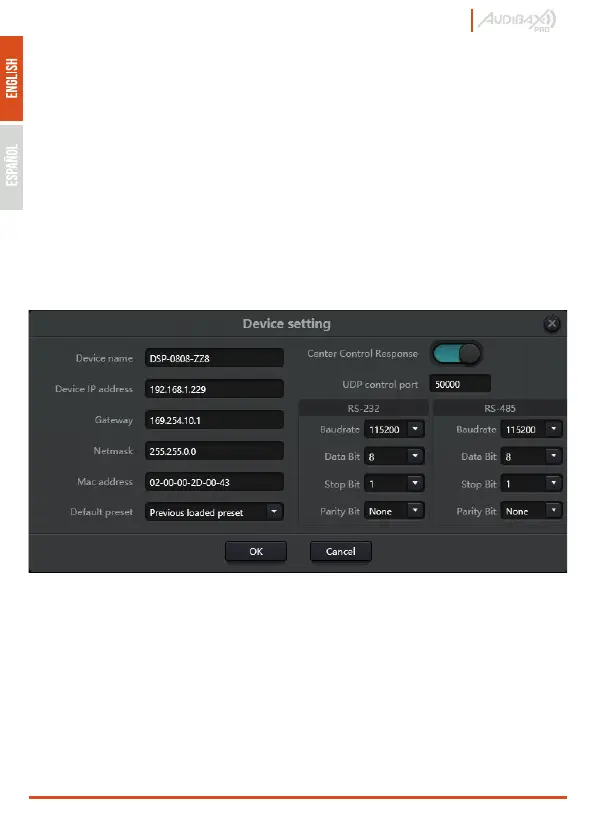

When using UDP controls, the default port is 50000. Ports can be configured in "Device
Settings" through NexusX.
When using RS232 controls are used, the default baud rate is 115200, digit bits is 8, and
stop bit is 1, no parity bit. Similarly, they can be set in “Device Setting”. The interval
between messages shall keep more than 100mS for RS232 sending.
If central control needs reply, please turn on central control reply switch in “Device
Setting”.
Control Protocol
Because of historical reasons, the latest control protocol adopts variable-length and is
fully compatible with old fixed-length control protocols. In protocols, the fourth byte is
used to distinguish versions. 0- indicates V1 version (previous versions) and 1- indicates V2
version (current protocol version).
The difference between V1 and V2 is V1 may control all processing module parameters,
but one command can only control one parameter. If a parameter is needed to control
continuous multiple channels, then V2 version shall be used. In other words, in condition
that users need to press one key on key panel to trigger GPIO output high-/low-level of
devices, or send a command via RS232/RS485, then V2 version will be the best choice.
