Velocity
130

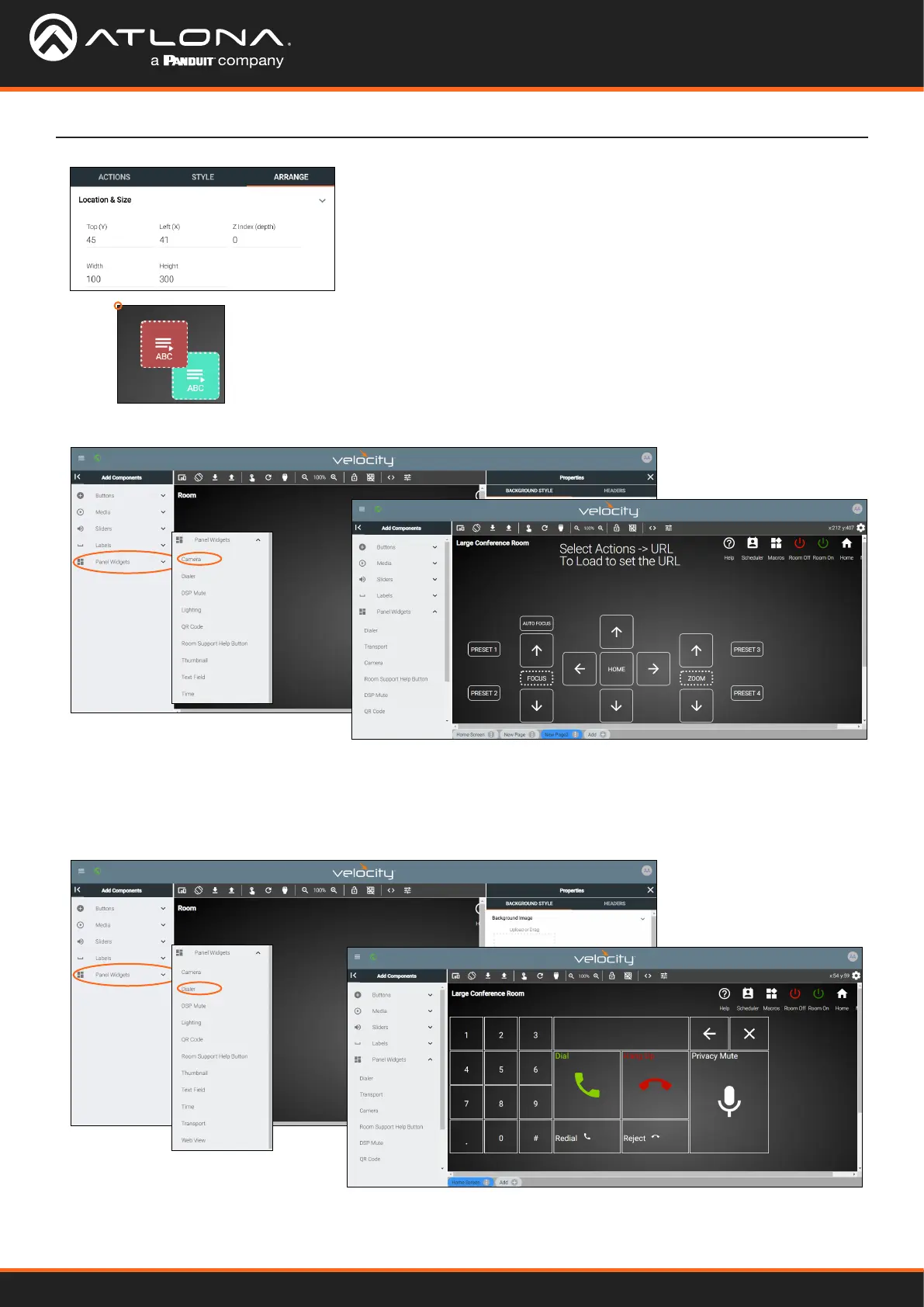

Custom Control Interface
Dialer
To create a default arrangement for Dialer, select Dialer from the Panel Widgets on the left navigation. This will create
a full dialer on the page. Fill in all the button options with the needed variables and macros, like described in the
Buttons / Labels section.
Camera
To create a default arrangement for camera control, select Camera from the Panel Widgets on the left navigation.
This will create a full layout for control of a camera. Fill in all the button options with the needed variables and
macros, like described in the Buttons / Labels section.
Top: 0
Left: 0
Z I - 1
Location & Size
• Top / Left - These numbers will adjust the distance from the left or top
of the screen that the eld will appear.
• Z Index - Starting at 0, this will provide the order in which elds will
appear. e.g. If two elds overlap, the higher Z index will show in front
of the lower Z index button.
• Width / Height - Edit the size of the eld. Default is 100 by 100 for
buttons/DSP Mute, 200 by 50 for labels, 500 by 300 for thumbnails,
and 300 by 100 for sliders and DSP Gain.
