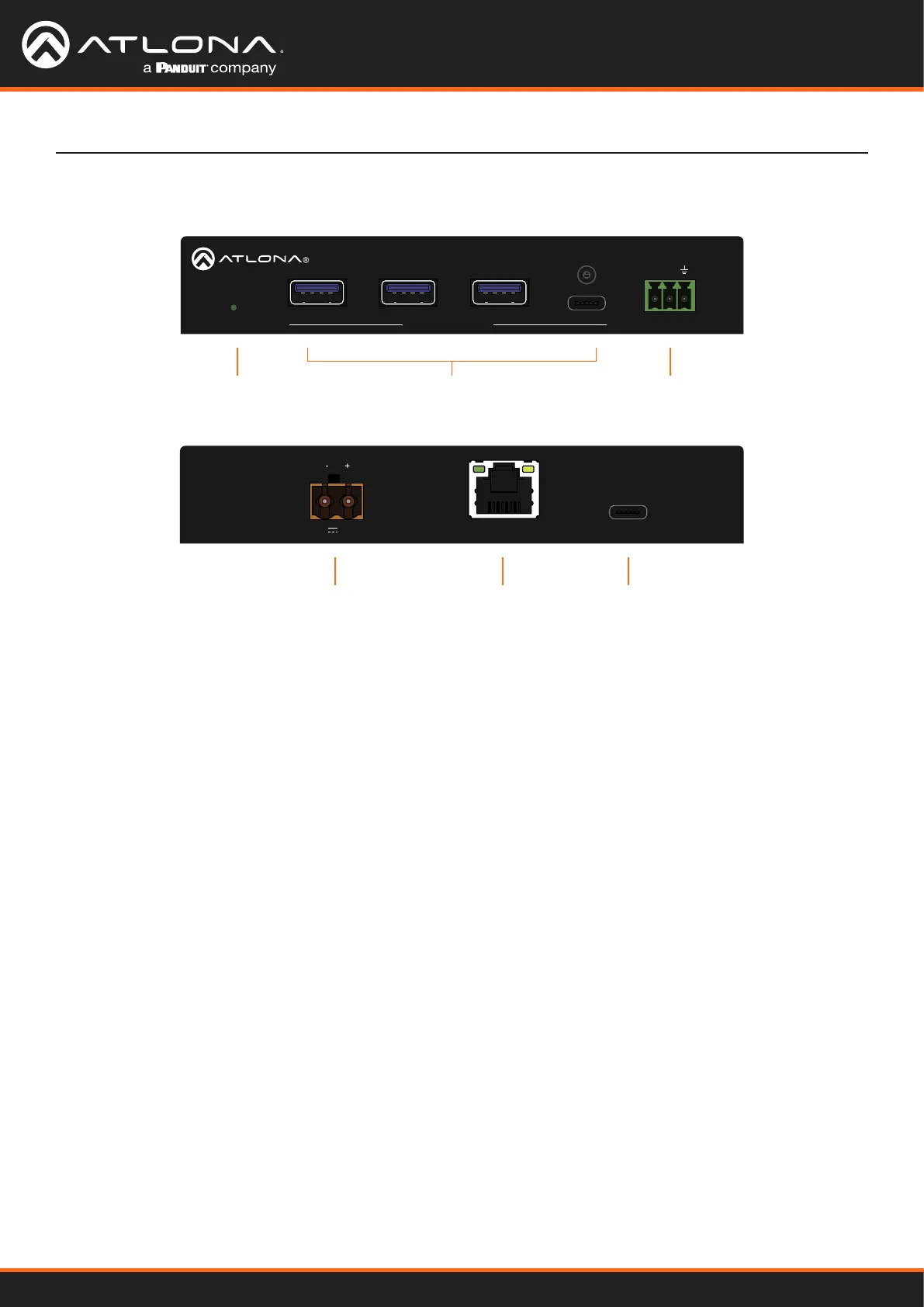

Panel Description
PWR
1 2 3
USB DEVICES (5G)
4
RS-232
AT-USB-EX350-DV
RX TX
DEBUGHDBT-USB3
LINK FW
48V
1.36A
1
4 5 6
2 3
PWR
1 2 3
USB DEVICES (5G)
4
RS-232
AT-USB-EX350-DV
RX TX
DEBUGHDBT-USB3
LINK FW
48V
1.36A
1 PWR
This LED indicator will be green while the unit is
powered and operating normally. Refer to LED
Indicators (page 12) for more information.
2 USB DEVICES (5G)
Connect USB devices to these ports. These ports
support USB 3.2 Gen 1.
3 RS-232
Connect an RS-232 cable from this port to a control
system to enable TCP proxy from the LAN port to
the RS-232 port.
4 48V / 1.36A
Connect the 2-pin captive screw connector on the
included power supply to this power receptacle.
5 HDBT-USB3
Connect a category cable (CAT6A U/FTP), up to 330
feet (100 meters), from this port to the HDBT-USB3
port on the AT-USB-EX350-HS.
6 DEBUG
Connect a USB-C cable from this port to a
computer for debugging and for performing Valens
rmware updates.
