AT-USB-EX350-KIT
7
AT-USB-EX350-HS
PWR USB HOST (5G) MGMT
HDBT-USB3IP MODELAN
LINK FW
48V 1.36A

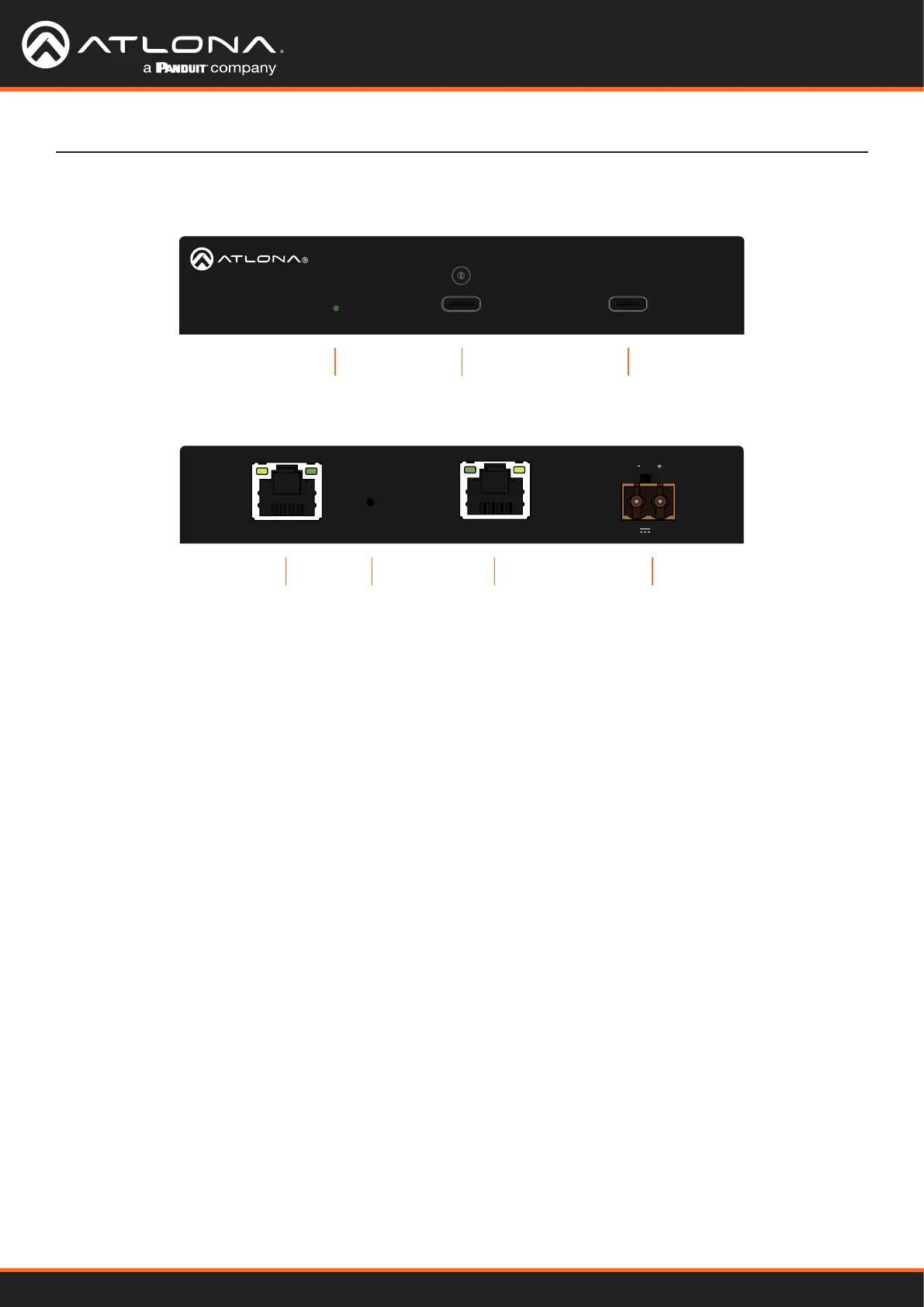

Panel Description
AT-USB-EX350-HS
AT-USB-EX350-HS
PWR USB HOST (5G) MGMT
HDBT-USB3IP MODELAN
LINK FW
48V 1.36A
1
4
2
5
3
6 7
1 PWR
This LED indicator will be green while the unit is
powered and operating normally. Refer to LED
Indicators (page 12) for more information.
2 USB HOST (5G)
Connect the included USB-C cable from this port to
the host device.
3 MGMT
Connect a USB-C cable from this port to a
computer to perform rmware updates. Refer
to Updating the Firmware (page 50) for more
information.
4 LAN
Connect an Ethernet cable from this port to a
network switch on the Local Area Network (LAN).
This connection is required in order to access the
built-in web server.
• Firmware Update Mode
Press and hold the button for 5 seconds, then
release.
• IP Mode
Press and hold the button for 10 to 15 seconds.
• Factory Reset
Press and hold the button for more than 15
seconds.
5 IP MODE
Use a paperclip or another slim object to press and
hold this recessed button.
The button serves three functions:
6 HDBT-USB3
Connect a category cable (CAT6A U/FTP), up to 330
feet (100 meters), from this port to the HDBT-USB3
port on the AT-USB-EX350-DV.
7 48V / 1.36A
Connect the 2-pin captive screw connector on the
included power supply to this power receptacle.
