AT-UHD-PRO3-44M
47
Advanced Operation

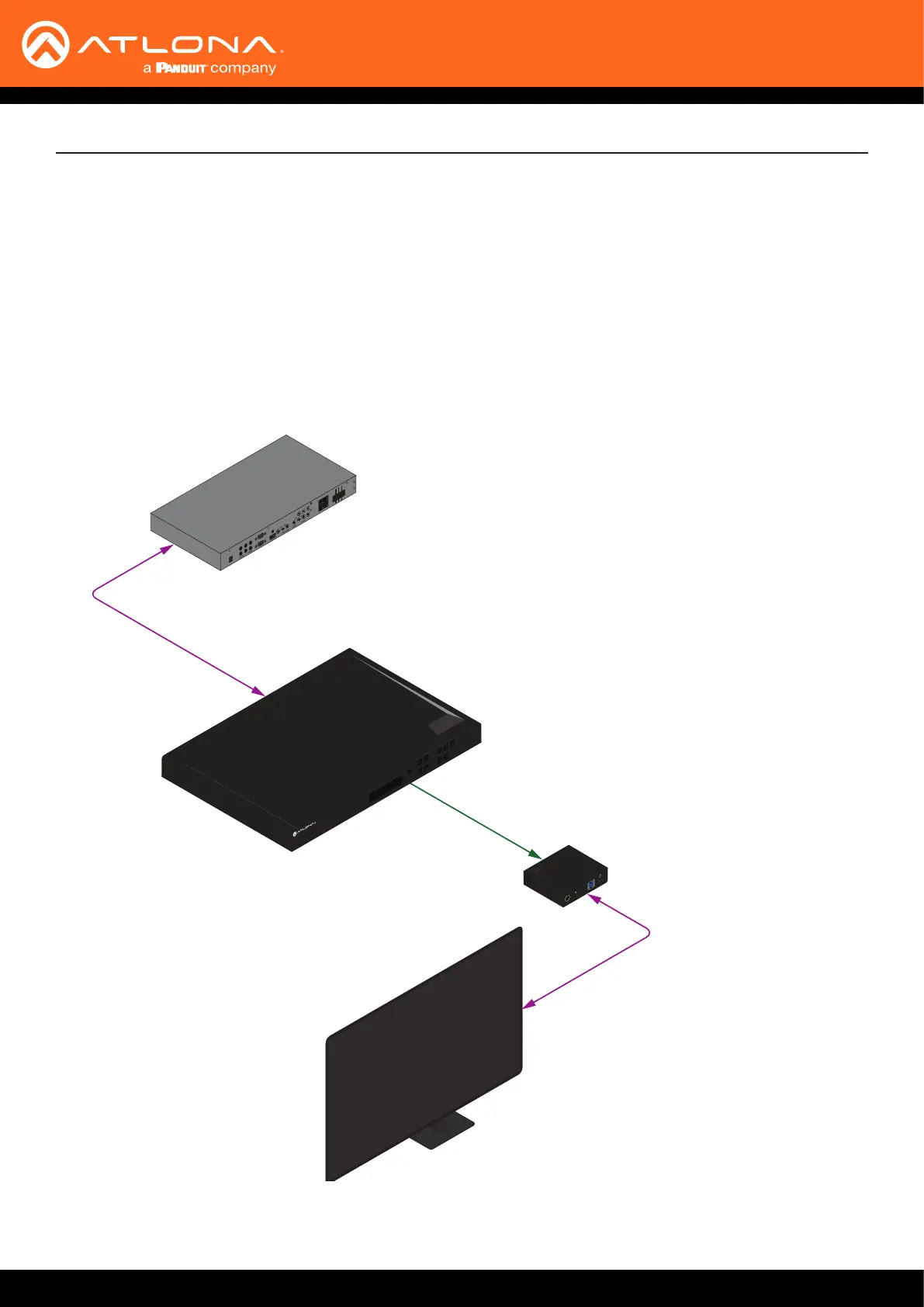

In pass-through mode, RS-232 commands are sent to the AT-UHD-PRO3-44M and then transmitted over HDBaseT
to the receiver unit (e.g. AT-UHD-100CE-RX), and then to the display (sink) device.
Pass-through mode
RS-232
ZONE OUT 3
RS-232
2
COM
NC
NO
COM
NC
NO
COM
NC
NO
COM
NC
NO
+12V
SIG
GND
+12V
SIG
GND
+12V
SIG
GND
+12V
SIG
GND
1
COMPONENT
HDMI
1
2
3
4
5
6
SERIAL 1
IR OUT
SERIAL 2
L
R
DIGITAL
COAX OUT
AUDIO OUT AUDIO IN
ETHERNET
2 3 4
VIDEO OUT
48V DC
FACTORY
RESET
AT-UHD-PRO3-44M
AT-UHD-100CE-RX
Display
Control System
DC 48V RS-232 HDBaseT IN HDMI OUT
RX TX
EDID
POWER ENTER
FNC CANCEL INFO
1
2 3
4
5
AT-UHD-PRO3-44M
1. Connect the RS-232 cable between the control system and the AT-UHD-PRO3-44M. Refer to Cable Assembly
(page 46) for instructions on preparing the cable.
2. Connect an Ethernet cable from the desired HDBaseT OUT port to a receiver. In this example, the HDBaseT
cable is connected from HDBaseT OUT 3 to an AT-UHD-100CE-RX receiver.
3. Connect an RS-232 cable between the display (sink) and the receiver.
