Basic Operation
When mirroring is disabled, an input can then be routed to the HDMI output. The diagram below now shows HDMI
IN 2 routed to ZONE OUT 5. Note that the output on ZONE OUT 3 is from the source connected to HDMI IN 1,
which was used when mirroring was enabled.
The instructions on the next page provide the necessary steps to routing HDMI IN 2 to the ZONE OUT 5 HDMI
output.

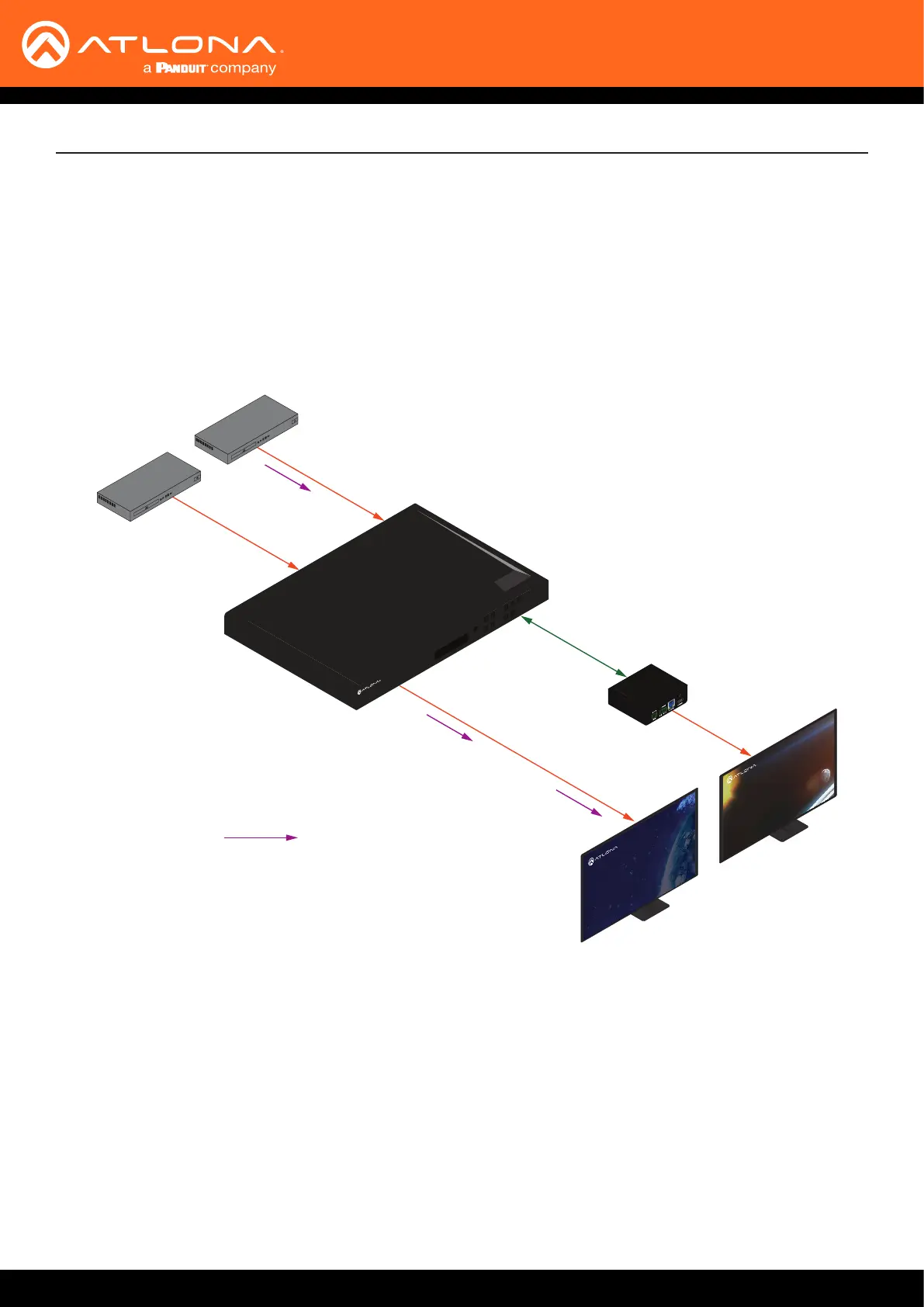

Diagram showing HDMI IN 2 routed to ZONE OUT 5 (mirroring diabled).
Disabling Mirroring
ZONE OUT 3
HDMI
HDMI IN 1
HDMI IN 2
AT-UHD-PRO3-44M
AT-UHD-EX-100CE-RX
Source 1
Source 2
Display
ZONE OUT 5
Display
A/V Signal
EDID
POWER
ENTER
FNC CANCEL INFO
1
2 3
4
5
AT-UHD-PRO3-44M
