AT-UHD-HDVS-300-KIT
28
Basic Operation

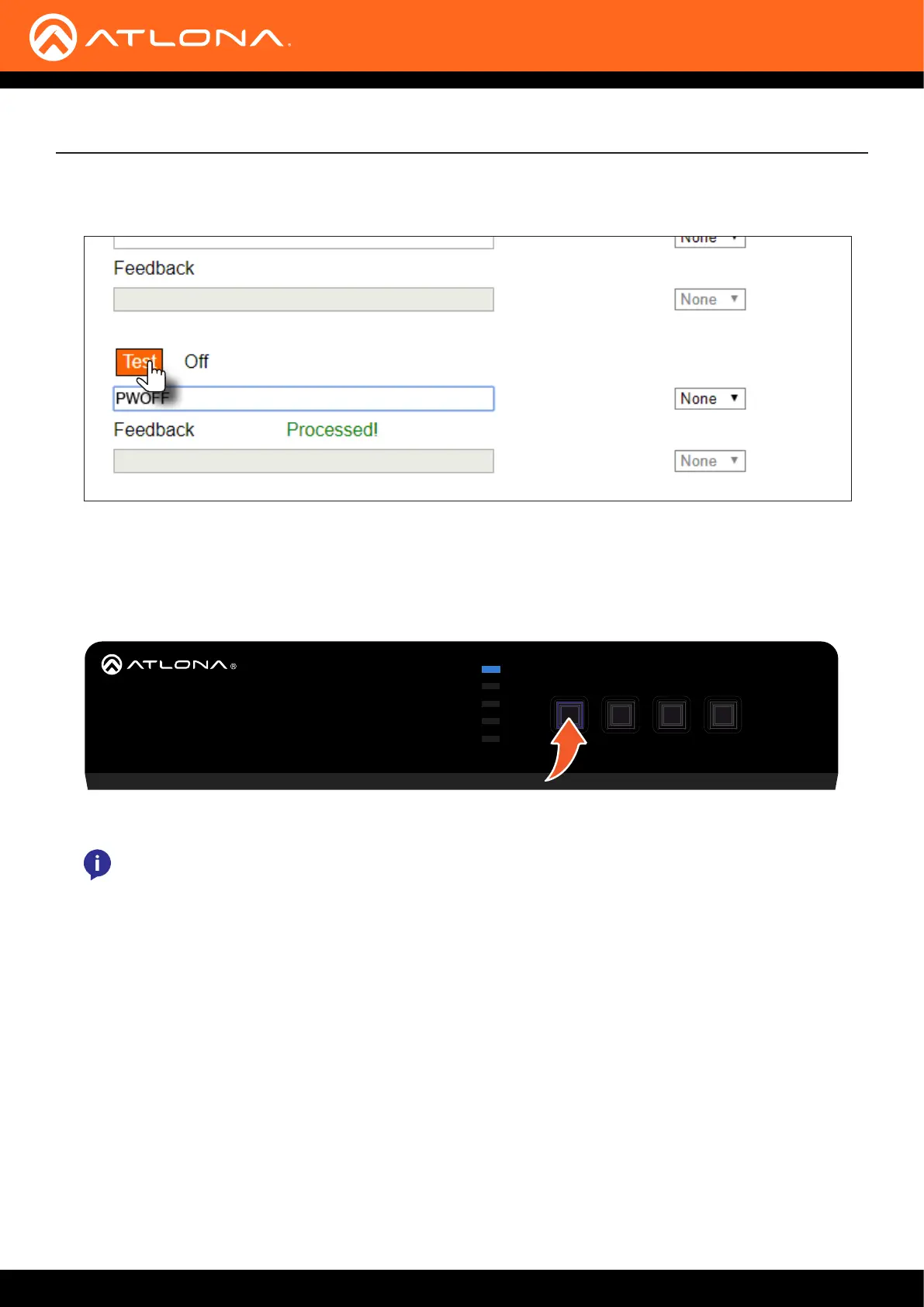

12. Click Test button to test the command. If the command is processed successfully, then the “Processed!”
message will appear, as shown, below.
13. Press the POWER button on the front panel to power-on the AT-UHD-HDVS-300-TX. The display will need to be
powered-on, separately, since a power-on command has not yet been dened. The power-on command, along
with any other commands, can be added at this time.
14. Press the POWER button on the front panel. Both the AT-UHD-HDVS-300-TX and the sink will be powered-o.
AT-UHD-HDVS-300-TX
HDMI 1
POWER INPUTV
V
HDMI 2
VGA
DP
HDMI - RX
USB 2USB 1 AUDIO VGA IN DP IN 4
USB HUB HDBaseT OUT RS-232
RX TX
LAN
HDMI IN 2
HDMI IN 1
USB
USB
NOTE: Powering-o the AT-UHD-HDVS-300-KIT places both the transmitter and receiver in a very low
power state ( < 500 mA). Access to the web GUI will still be available after a power-o command has
been processed.
