AT-UHD-CLSO-840
44
Basic Operation
1. Make sure a display/sink device is connected to the output where the EDID will be captured. For example, to
capture the EDID on HDMI OUT 1, a display/sink device must be connected to that port.

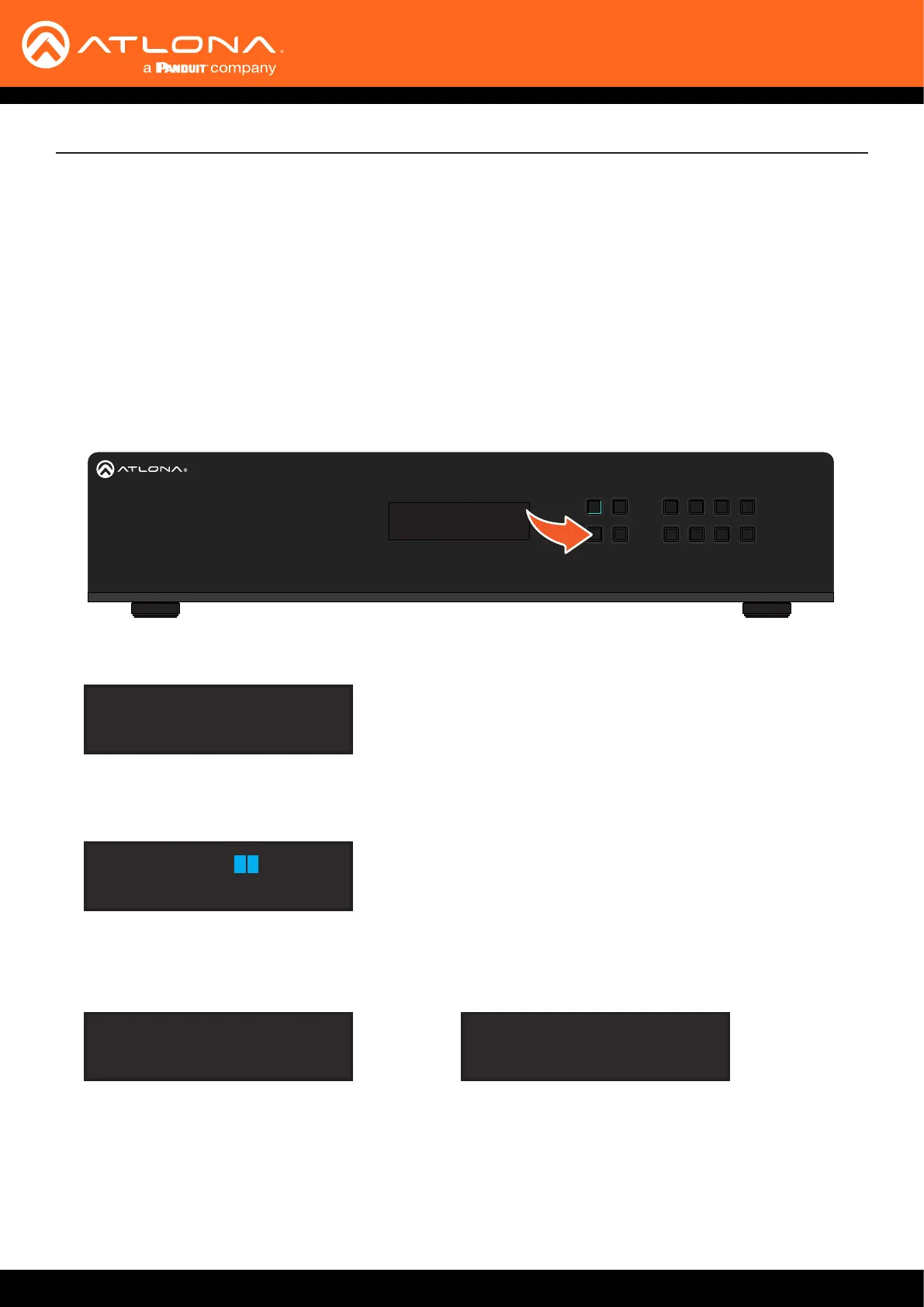

2. Start from the home screen. If the home screen is not displayed, press the CANCEL button to return to the
home screen. Press the FNC button to display the SELECT FUNCTION screen.
In some instances, it may be desirable to use the EDID of a connected display, and store it for later use. The AT-
UHD-CLSO-840 provide four memory locations that can be used to store custom EDID data. Once the EDID is
stored in memory, it can be copied to any input. These memory locations are non-volatile, meaning that even if the
matrix is powered-o, the EDID data will be retained in these memory locations.
Once the output is entered, the matrix will conrm the entry. If copying the EDID fails, then a “failure message”
will be displayed.
EDID copied successfully. EDID copy failed.
Copying a Downstream EDID
HDMI IN HDBaseT IN
R L
1
R L
2
76 8
21 3 4
4321 5
R L
3
R L
4
R L
1
R L
2
R L
3
R L
4
HDBaseT OUT LAN
ON
OFF
PWR 100-240VAC 50/60Hz
RS-232
HDMI OUT
AUDIO IN AUDIO OUT
+ + + + + ++ + + + + + + ++ +
RX TX
AT-UHD-CLSO-840
FCN CANCEL EDID
INFO
POWER ENTER 5 6 7 8
1 2 3 4
4. Press button 1 to select Copy Output EDID.
5. Enter the output from which the EDID will be copied. Valid entries are 1 through 4.
1. copy output edid
2. choose input edid
3. Press the EDID button to display the EDID screen.
copy output Edid
enter to confirm
output edid 01 to
memory passed
output edid 01 to
memory failed
Using the Front Panel
