Device Operation
Powering Sink Devices

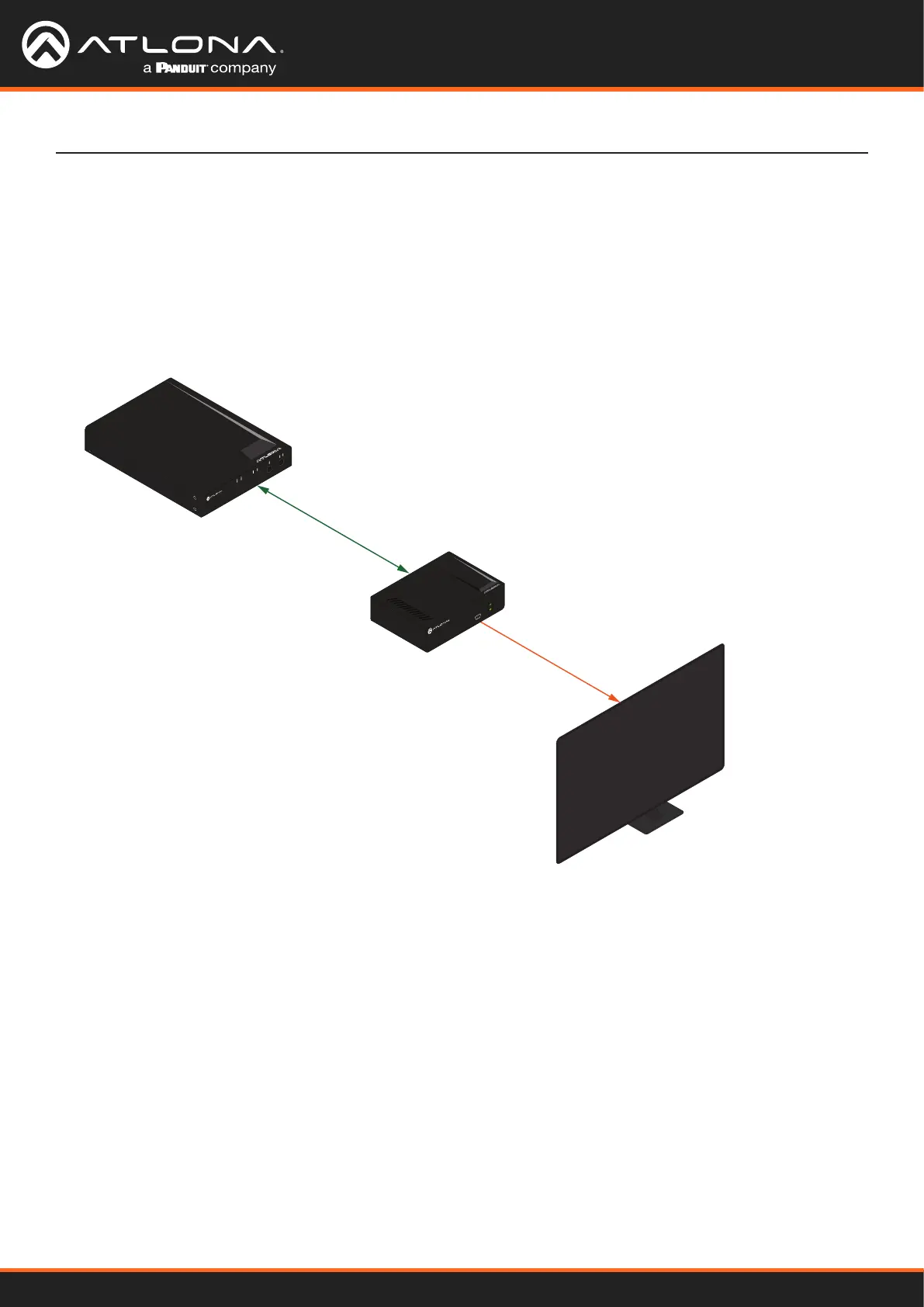

1. Connect Ethernet cables from the HDBaseT OUT ports to receiver (e.g. AT-UHD-EX-70C-RX).
2. Connect an HDMI cable from the receiver to the display (sink) device. Make sure that the sink device is powered.
HDBaseT OUT 1
HDMI
Display
AT-UHD-CAT-2
AT-UHD-EX-70C-RX
21OUTIN
HDMI HDBaseT LOCK
EDIDPOWER
AT-UHD-CAT-2
INT LEARN
POWER
LINKFW
AT-UHD-EX-70C-RX
This section provides information on how to power-on / power-o the display (sink) device, using the POWER
button. CEC* power-on / power-o commands are transmitted over both HDBaseT OUT ports, as well as the pass-
through HDMI OUT port.
3. Launch a web browser and login to the web server. Refer to Introduction to the Web Server (page 29) for more
information. The factory-default username and password are listed below:
Username: root
Password: Atlona
4. Click System in the menu bar.
5. Click the Power button mode drop-down list and select CEC. Refer to the illustration on the next page for
reference.
*Consumer Electronics Control (CEC): Atlona has conrmed proper CEC functionality with several current models of Samsung, Panasonic, and
Sony displays. However, it is not guaranteed that CEC will work with all displays. Many manufacturers do not support the CEC “o” command,
and older displays use proprietary commands. Atlona only supports displays that use the CEC command structure dened in HDMI 1.2a. It is
recommended that dealers request an evaluation product from Atlona, before designing a system using the CEC protocol. If this is not possible,
then other control methods will need to be considered, in order to control displays using Atlona products.
