AT-OMNI-121 / AT-OMNI-122
19
Installation
1 2
3
1 2
3
GND GND
+
-
+
-
1 2
3
1 2
3
GND GND
+
-
+
-

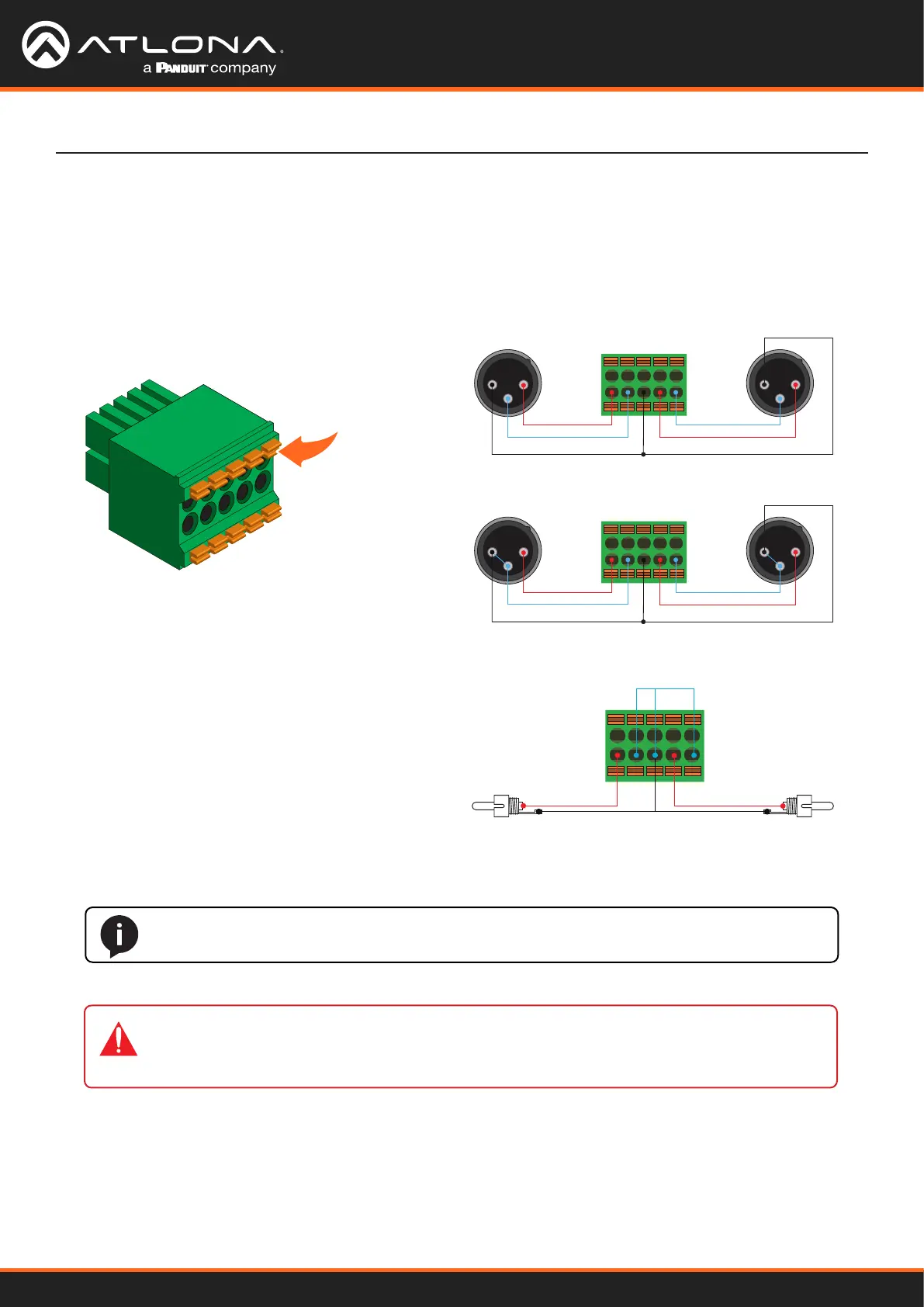

Use the top 5 pins to connect audio input sources. Use the bottom ve pins to connect to audio output devices.
1. Use wire strippers to remove a portion of the cable jacket.
2. Locate the included Phoenix block connectors. Press the orange tab, above the terminal, while inserting the
exposed wire. Release the orange tab to lock the wire in place. Balanced or unbalanced audio can be used.
Push tab
to unlock
Balanced XLR audio
Unbalanced XLR audio
Unbalanced RCA audio
AT-OMNI-122
GND
Side View Side View
-
+
GND
+
-
NOTE: Unblanaced XLR audio pins require Pin 1 and Pin 3 to be connected.
IMPORTANT: When using analog audio inputs on the OmniStream decoder, the decoder must
be powered using the 48V power supply (AT-PS-48083-C). This power supply is sold separately
and can be purchased from Atlona.
