Using OmniStream
™
with Velocity
™
Device Manager
26
AT-OMNI-111
AT-VGW-HW
AT-OMNI-121
PoE Network Switch
Laptop
Display
Ethernet
Ethernet
Ethernet
Ethernet
Ethernet
HDMI IN
LAN
HDMI OUT
HDMI
PWR
LINK
TM
O
MNI
S
TREAM
ID
TM
O
MNI
S
TREAM
LINKPWR
AT-OMNI-111
HDMI IN
HDMI
PWR
LINK
TM
O
MNI
S
TREAM
ID
Gaming Console
Game Console
USB-C
AUDIO OUT
Velocity
TM
USB
USB
USB
USB
The decoder should now display the content of the source device connected to HDMI IN on the encoder.
Figure 2.1 shows the completed conguration.
To switch between video sources, click the Video > Input drop-down list and select the desired stream.
To switch between audio streams, click the Audio > Input drop-down list to select the desired stream.
Note that separating video and audio data into dierent streams, allows the exibility of combining dierent video
and audio sources together.

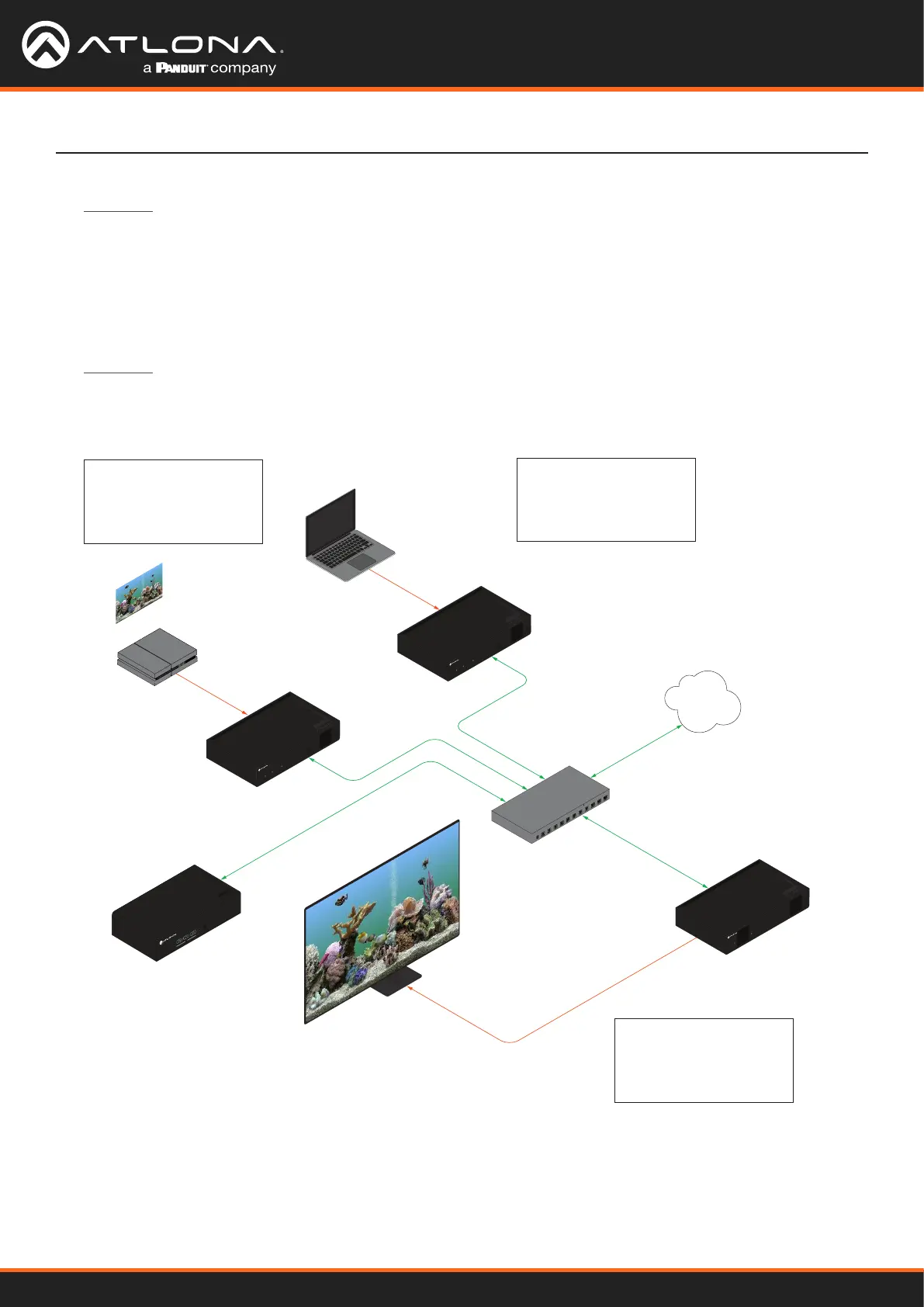

Figure 2.1 - Basic OmniStream setup with a Decoder #1 subscribed to Encoder #1.
Stream 1
Stream 1
Destination IP Address (Video): 226.0.0.1
UDP Port (Video): 1000
Destination IP Address (Audio): 226.0.10.1
UDP Port (Audio): 1100
Destination IP Address (Video): 226.0.0.2
UDP Port (Video): 1000
Destination IP Address (Audio): 226.0.10.2
UDP Port (Audio): 1100
Encoder #1
Encoder #2
Basic Conguration Tutorial
HDMI Output
Destination IP Address (Video): 226.0.0.1
UDP Port (Video): 1000
Destination IP Address (Audio): 226.0.10.1
UDP Port (Audio): 1100
Decoder #1
