Using OmniStream
™
with Velocity
™
Device Manager
19
Encoder Settings
Basic Conguration Tutorial

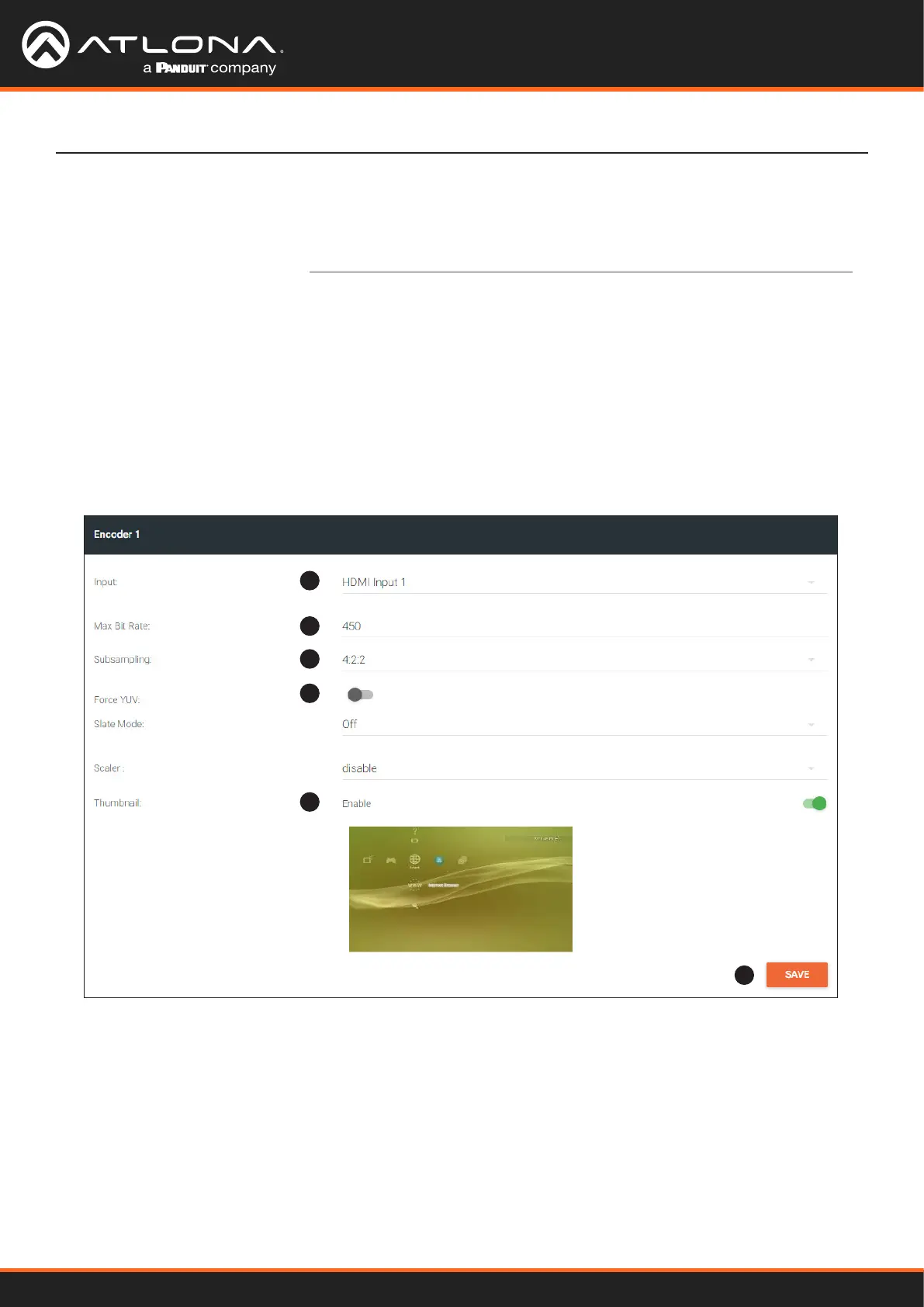

The INPUT page is also used to assign an input to an encoder. The Encoder window groups allow video settings,
such as the maximum bit rate, bit depth, and chroma subsampling to be set. Video thumbnails of the source device
can also be displayed on this page. The following procedure should be performed on both AT-OMNI-111 encoders.
1. Under the Encoder 1 window group, click the Input drop-down list and select HDMI Input 1.
2. Enter 750 in the Max Bit Rate eld. This means 750 Mbps. Bandwidth per port is calculated as 900 Mbps,
and on a dual-channel encoder, the combined bandwidth of both ports should not exceed 900 Mbps. So, if two
sources were connected to AT-OMNI-112 dual-channel encoder, then the Max Bit Rate eld for both Encoder 1
and Encoder 2 should not exceed a value of 450.
3. Click the Subsampling eld to set the chroma subsampling value. In this example it will be set to 4:2:2.
4. The Force YUV toggle switch can be set to on to force YUV color space. In this example, it will be disabled
(default). If enabled, the toggle switch will be green.
1
2
3
4
5
6
5. Click the Thumbnail > Enable toggle switch to enable it and display a thumbnail of the source. When enabled,
the toggle switch is green and a thumbnail of the source will be displayed. If no thumbnail is displayed when this
feature is enabled, verify that the source is connected and powered.
6. Click SAVE to commit all changes.
