AT-HDVS-150-TX-WP
9

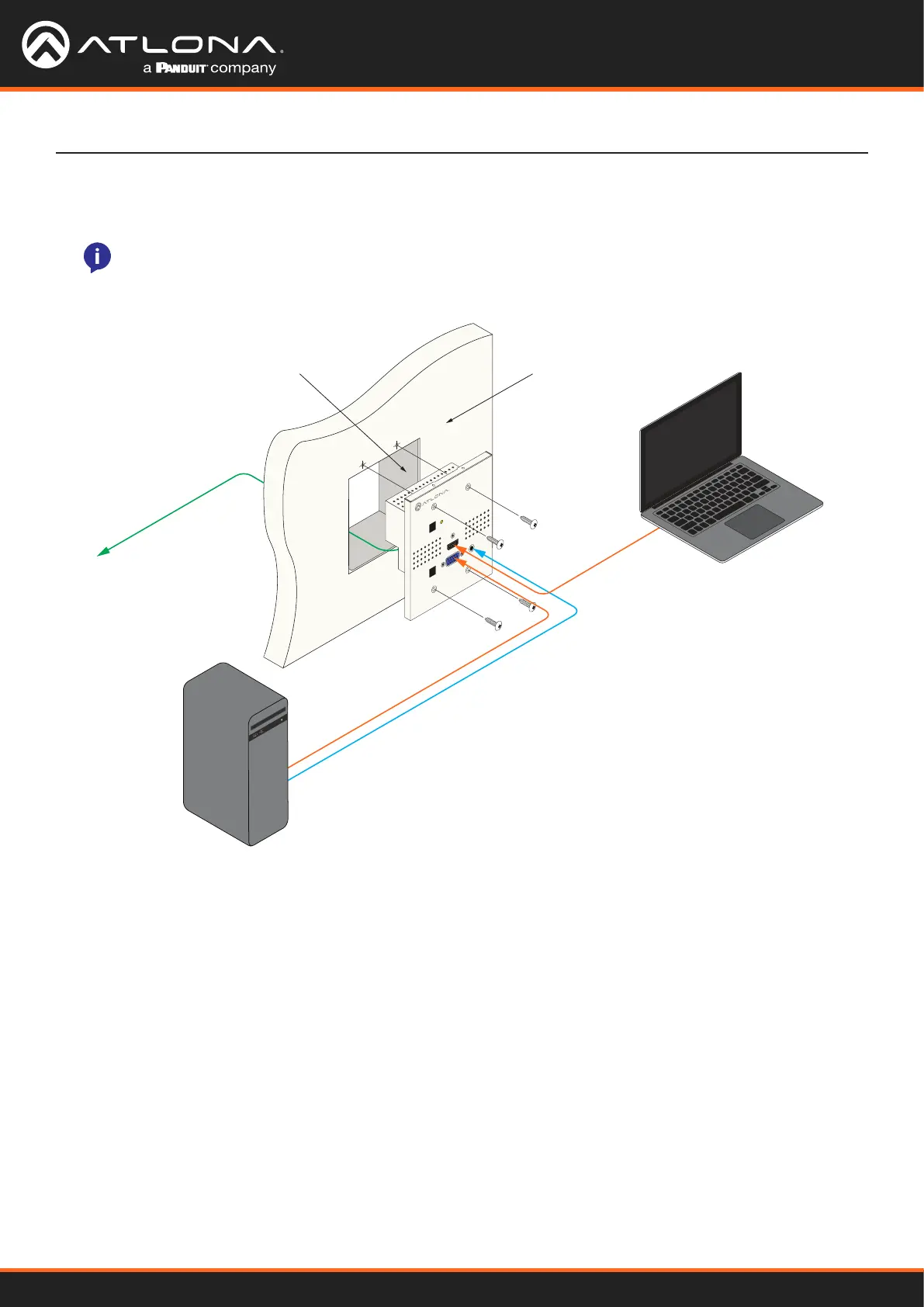

Connection Diagram
LINK
HDMI IN
VGA IN
AUDIO IN
DISPLAY
ON/OFF
INPUT
SELECT
Desktop PC
USB
USB
HDMI
HDBaseT
VGA
Audio
Laptop
2-gang electrical box
or mud ring
Wall cross-section
(US wall plate shown)
Installation
NOTE: Although the wall installation of the US and UK version will dier, the following connection
diagram applies to both the AT-HDVS-150-TX-WP and AT-HDVS-150-TX-WP-UK.
