AT-HDR-H2H-44M
9

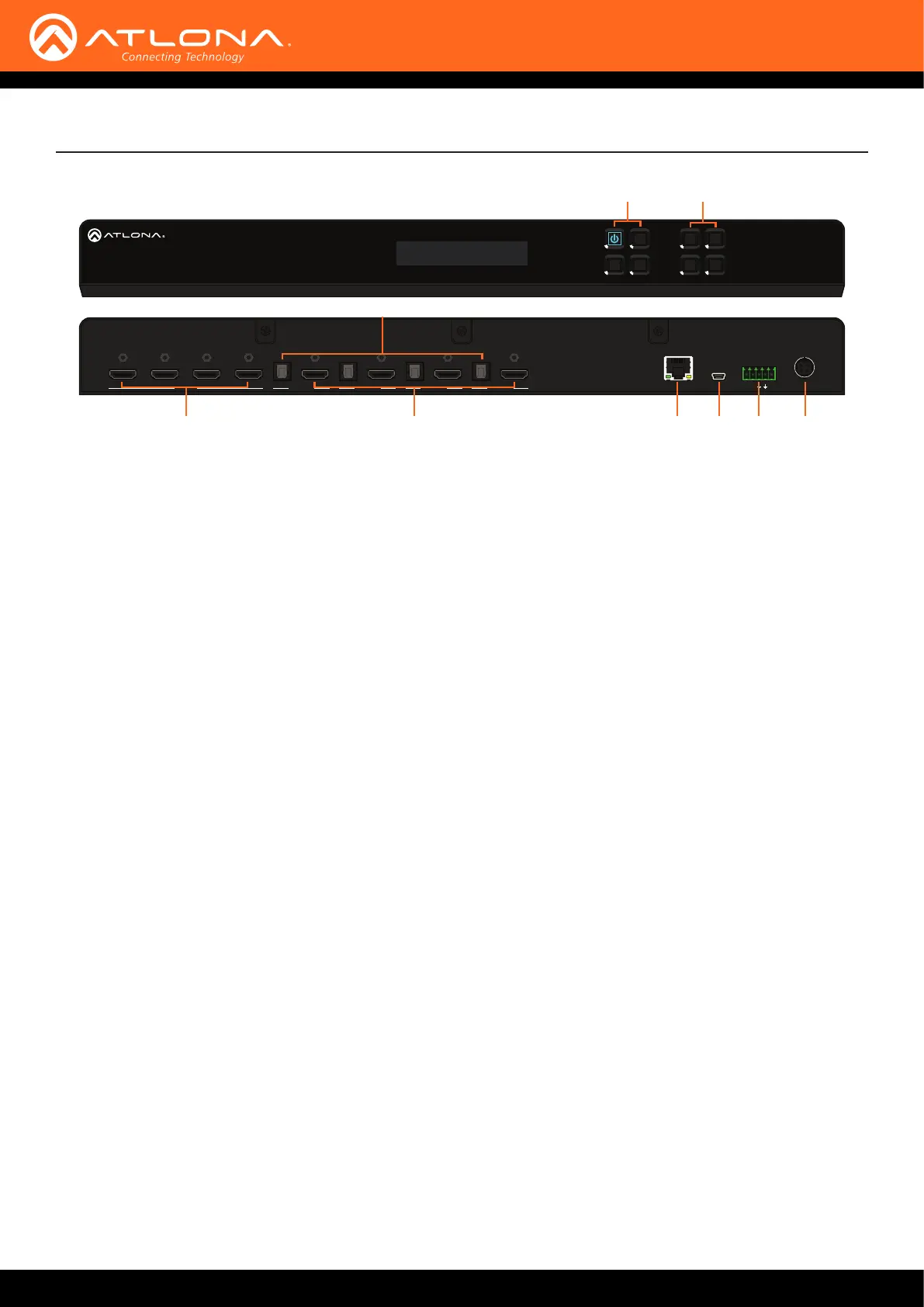

Panel Description
3 5
4
6 7 8 9
AT-HDR-H2H-44M
1 2 3
4
RS-232 IR IN
HDMI IN LAN FW DC 24VSRX TXOUTPUT 1 OUTPUT 2 OUTPUT 3
OUTPUT 4
AT-HDR-H2H-44M
1
2
3
4
POWER
FNC EDID INFO
ENTER
CANCEL
1
2
1 Function Buttons
Power - Sets the unit in and out of standby.
Enter - Used for making selection within the front
panel OSD.
FNC - Use to switch number buttons to their
secondary function.
CANCEL - Navigates back one step in the front panel
OSD.
2 Number Buttons
Use for selection of inputs and outputs.
1 - Press FNC + 1 to route selected input to all
outputs.
2 - Press FNC + 2 to turn the IR receiver window on
and o.
3 - Press FNC + 3 to open the EDID menu.
4 - Press FNC + 4 to display the device rmware.
Press 4 again to view IP, IP port, and MAC.
3 HDMI IN
Connect HDMI cables to these ports from HDMI
sources.
4 S/PDIF OUT
Connect an optical audio cable from this TOSLINK
port to an audio input device.
5 HDMI OUT
Connect an HDMI cable from this port to an HDMI
display, extender, or switcher.
6 LAN
Connect an Ethernet cable from this port to a Local
Area Network (LAN). This port provides access to the
webGUI or TCP/IP control.
7 FW
Connect a mini USB cable to this port to update the
rmware.
8 Control Port
Connect a third party controller or PC to control the
matrix through either IR or RS-232.
9 DC 24V
Connect the included 24V DC power supply to this
power receptacle.
