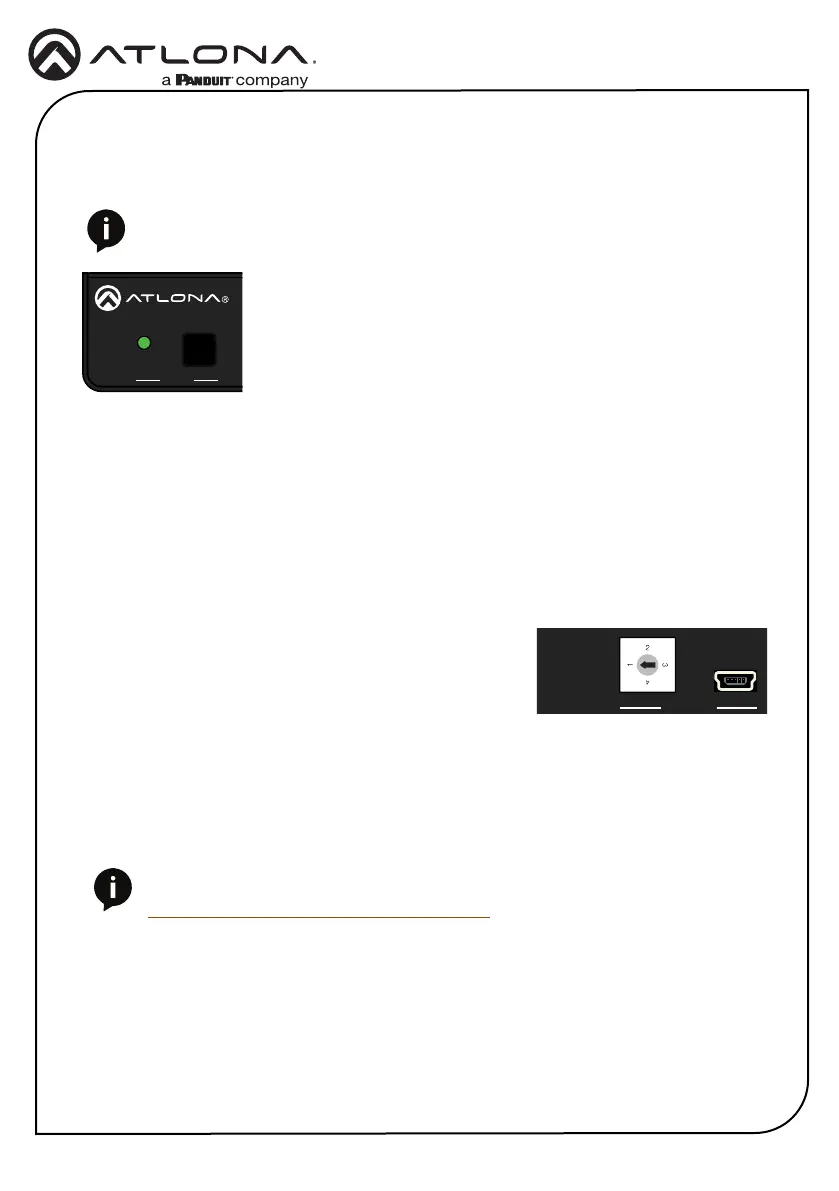

6
Installation Guide
AT-HDR-EX-100CEA-TX
TEST
The HDR-EX-100CEA-TX has the ability to test the HDBaseT cable quality through the front
panel. Press the test button on the front panel of the transmitter to start the test.
Button:
• Blue Blinking: The test is running properly.
• Red Light: There is no signal for the test to check.
LED:
• No Light: There is no HDBaseT cable plugged in.
• Blinking: There is no HDBaseT signal coming through.
• Green: The HDBaseT cable is good.
• Yellow: One or two HDBaseT pairs are not working, reterminate
the cable.
• Red: Multiple pairs are not working. Reterminate the cable and if
the LED turns yellow or red again, replace the cable.
DC 48V
-
+
RS-232
RX TX
SS
HDBaseT OUT
HDMI IN
IR OUTIR IN
AT-HDR-EX-70C-TX
POWER
LINK
TEST
UTILITY
1. LINK
2. FW
3. TEST
4. 5V LOCK
Mode 1: Link
This is the default position of the dial and puts the unit into normal operation.
Mode 2: FW
This mode sets the transmitter into rmware updating mode. View Firmware Updating
instructions on the next page for manual updating.
DC 48V
-
+
RS-232
RX TX
SS
HDBaseT OUT
HDMI IN
IR OUTIR IN
AT-HDR-EX-70C-TX
POWER
LINKTEST
UTILITY
1. LINK
2. FW
3. TEST
4. 5V LOCK
UTILITY
The utility port and dial are used for updating rmware,
HDBaseT cable testing/debugging, and 5V lock. Use the Dial
to switch between modes.
NOTE: Before setting the unit to mode 3 (TEST), the Atlona Analyzer should be
downloaded from the resource tab located at:
https://atlona.com/product/at-hdr-ex-100cea-tx
NOTE: Test function only works when used with AT-HDR-EX-100CEA-RX.
