3
Installation Guide
AT-HDR-EX-100CEA-TX
Pin out will be determined by the
RS-232 cable and connect as
RX (receive), TX (transmit) and
(Ground).

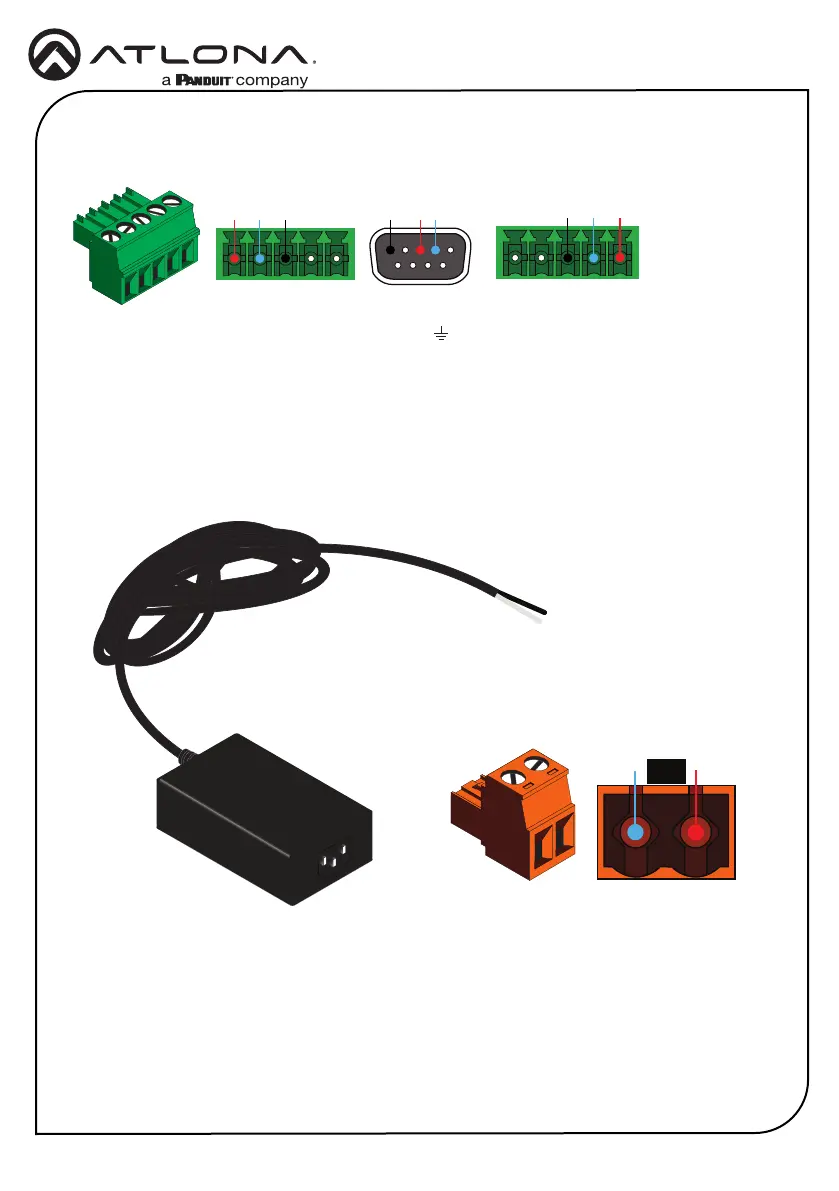

A 5-pin captive screw connector for control has been included. The rst two terminals are RS-
232 control with a shared ground with IR, the last two terminals are for IR.
The IR connector shares the ground
port with the RS-232 port and is both
a Transmitter (TX) and Receiver (RX).
For the transmitter, Atlona
recommends using the 3 meter IR
cable AT-IR-CS-TX.
Control
RS-232 IR
TX
RX
GND
GND RX
TX
GNDRX TX
-
+
The power cable will be white for the
positive connection and black for the
negative connection. These should be
placed in the corresponding captive
screw ports.
A 2-pin captive screw connector for the power supply has been included.
Power
-
+
+
-
