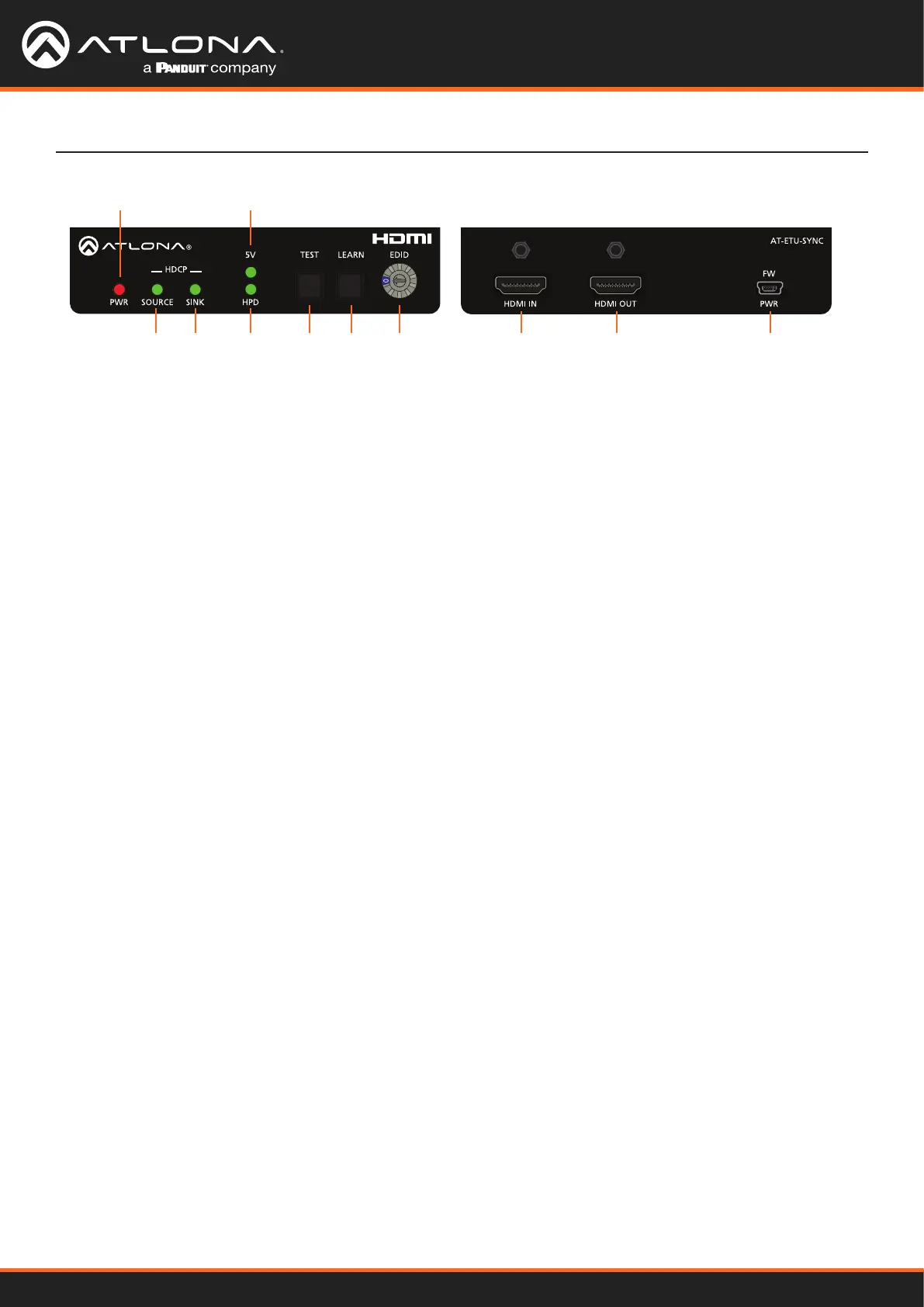

Panel Description
1
52 3 6 7 8 9 10 11
4
1 PWR
Glows red when the unit is powered.
2 SOURCE
Indicates the source status. Refer to Performing System Tests (page 12) for more information.
3 SINK
Indicates the sink status. Refer to Performing System Tests (page 12) for more information.
4 5V
Reports the status of the 5V signal from the source device. Refer to Performing System Tests (page 12) for
more information.
5 HPD
Reports the Hot-Plug Detect (HPD) status from the sink device. Refer to Performing System Tests (page 12)
for more information.
6 TEST
Press this button to begin the test procedure. Refer to Performing System Tests (page 12) for more
information.
7 LEARN
This LED indicator will glow bright green when the switcher is powered. Refer to Learning an EDID (page 10)
for more information.
8 EDID
Turn this dial to select the desired EDID mode. Refer to Selecting an EDID (page 9) for more information.
9 HDMI IN
Connect an HDMI cable from the source to this port.
10 HDMI OUT
Connect an HDMI cable from the sink (display) to this port.
11 FW / PWR
Connect the included USB cable from a computer to this port. This port is used to power the AT-ETU-SYNC and
to update rmware.
Front Rear
